KINGSTON TECHNOLOGY CORPORATION
SX/20LCM, SX/25LCM, SX/33LCM
|
Processor |
80386SX (Replaces 80286) |
|
Processor Speed |
20/25/33MHz |
|
Chip Set |
Kingston |
|
Max. Onboard DRAM |
None |
|
Cache |
16KB |
|
BIOS |
None |
|
Dimensions |
64mm x 51mm |
|
I/O Options |
None |
|
NPU Options |
80387SX |
|

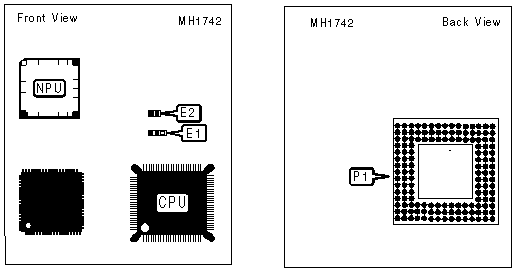

CONNECTIONS | |
|
Purpose |
Location |
|
Processor upgrade to system board connector |
P1 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Jumper |
Position | |
|
» |
Factory configured - do not alter |
E1 |
Open |
|
» |
Factory configured - do not alter |
E2 |
Open |
