Processor	80386SX (Replaces 80286)
Processor Speed	33MHz
Chip Set	Kingston
Max. Onboard DRAM	None
Cache	16KB
BIOS	None
Dimensions	64mm x 51mm
I/O Options	None
NPU Options	80387SX

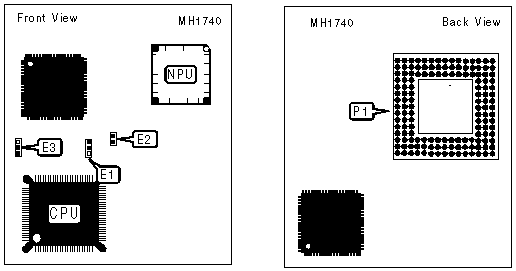

CONNECTIONS
Purpose	Location
Processor upgrade to system board connector	P1

USER CONFIGURABLE SETTINGS
Function		Jumper	Position
»	Factory configured - do not alter	E1	pins 2 & 3 closed
»	Factory configured - do not alter	E2	Open
»	NPU disabled	E3	pins 1 & 2 closed
	NPU enabled	E3	pins 2 & 3 closed
