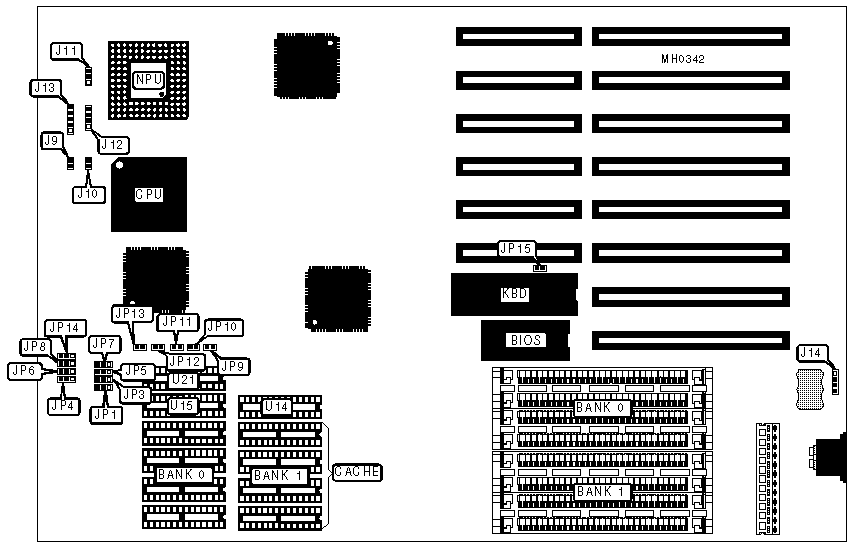

JOINDATA SYSTEMS, INC.
G386KS
|
Processor |
80386DX |
|
Processor Speed |
33/40MHz |
|
Chip Set |
C & T |
|
Max. Onboard DRAM |
32MB |
|
SRAM Cache |
64/128/256KB |
|
BIOS |
AMI |
|
Dimensions |
330mm x 215mm |
|
I/O Options |
None |
|
NPU Options |
80387/3167 |
|
CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Reset switch |
J9 |
Speaker |
J12 |
|
Turbo LED |
J10 |
Power LED & keylock |
J13 |
|
Turbo switch |
J11 |
External battery |
J14 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Jumper |
Position | |
| » |
Monitor type select color |
JP15 |
Closed |
|
Monitor type select monochrome |
JP15 |
Open | |
|
DRAM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
1MB |
(4) 256K x 9 |
NONE |
|
2MB |
(4) 256K x 9 |
(4) 256K x 9 |
|
4MB |
(4) 1M x 9 |
NONE |
|
8MB |
(4) 1M x 9 |
(4) 1M x 9 |
|
16MB |
(4) 4M x 9 |
NONE |
|
32MB |
(4) 4M x 9 |
(4) 4M x 9 |
|
CACHE CONFIGURATION | |||||
|
Size |
Bank 0 |
Bank 1 |
U14 (TAG) |
U15 (TAG) |
U21 (TAG) |
|
64KB |
(4) 8K x 8 |
(4) 8K x 8 |
NONE |
(1) 16K x 4 |
(1) 16K x 4 |
|
128KB |
(4) 32K x 8 |
NONE |
(1) 32K x 8 |
NONE |
NONE |
|
256KB |
(4) 32K x 8 |
(4) 32K x 8 |
NONE |
(1) 64K x 4 |
(1) 64K x 4 |
|
CACHE JUMPER CONFIGURATION | ||||||
|
Size |
JP1 |
JP3 |
JP4 |
JP5 |
JP6 |
JP7 |
|
64KB |
1 & 2 |
1 & 2 |
2 & 3 |
open |
1 & 2 |
2 & 3 |
|
128KB |
2 & 3 |
1 & 2 |
1 & 2 |
open |
2 & 3 |
1 & 2 |
|
256KB |
2 & 3 |
1 & 2 |
1 & 2 |
1 & 2 |
2 & 3 |
1 & 2 |
|
Note:Pins designated should be in the closed position. | ||||||
|
CACHE JUMPER CONFIGURATION (CON’T) | |||||||
|
Size |
JP8 |
JP9 |
JP10 |
JP11 |
JP12 |
JP13 |
JP14 |
|
64KB |
1 & 2 |
open |
closed |
closed |
open |
closed |
1 & 2 |
|
128KB |
2 & 3 |
open |
open |
closed |
open |
open |
open |
|
256KB |
1 & 2 |
closed |
open |
open |
closed |
open |
2 & 3 |
|
Note:Pins designated should be in the closed position. | |||||||
