Processor	80386DX
Processor Speed	16/20/25MHz
Chip Set	None
Max. Onboard DRAM	8MB
Cache	None
BIOS	IBM
Dimensions	355mm x 254mm
I/O Options	Serial port, parallel port, pointing device connector, video port, video adapter slot, floppy drive interface
NPU Options	80387

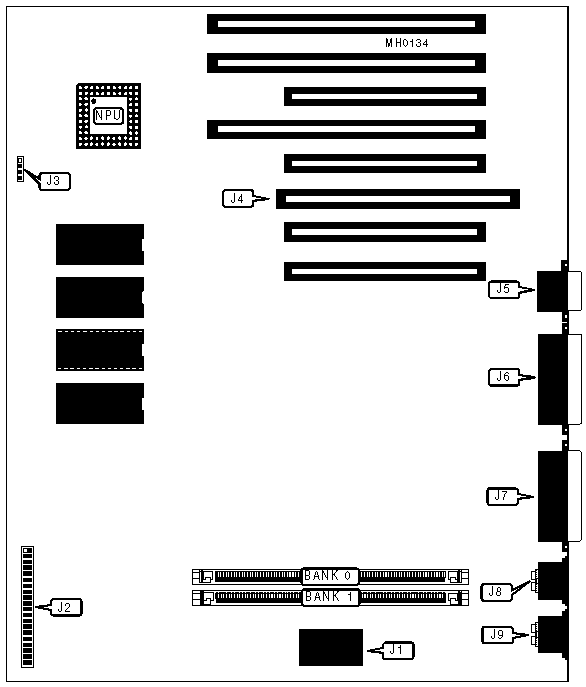

CONNECTIONS
Purpose	Location	Purpose	Location
Power supply	J1	Serial port	J6
Floppy drive interface	J2	Parallel port	J7
Battery/speaker	J3	Pointing device	J8
Video adapter slot	J4	Keyboard	J9
Video port	J5

DRAM CONFIGURATION
Size	Bank 0	Bank 1
1MB	(1) 256K x 36	NONE
2MB	(1) 256K x 36	(1) 256K x 36
4MB	(1) 1M x 36	NONE
8MB	(1) 1M x 36	(1) 1M x 36
Note:Onboard memory does not have to be installed in order to use memory expansion cards.
