ILON USA, INC.
M-209
|
Processor |
80286 |
|
Processor Speed |
12/16/20MHz |
|
Chip Set |
PC Chips |
|
Max. Onboard DRAM |
4MB |
|
Cache |
None |
|
BIOS |
PC Chips |
|
Dimensions |
305.4mm x 217mm |
|
I/O Options |
None |
|
NPU Options |
80287 |
|

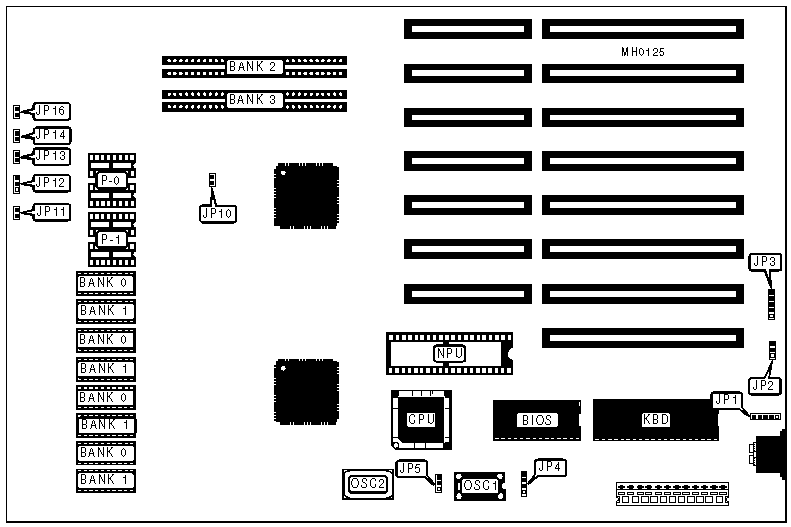

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Auxiliary keyboard |
JP1 |
Speed display |
JP12 |
|
Power LED & keylock |
JP3 |
Turbo switch |
JP13 |
|
External battery |
JP4 |
Reset switch |
JP14 |
|
Turbo LED |
JP11 |
Speaker |
JP16 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Jumper |
Position | |
| » |
Monitor type select color |
JP2 |
pins 2 & 3 closed |
|
Monitor type select monochrome |
JP2 |
pins 1 & 2 closed | |
| » |
NPU mode select synchronous with CPU clock |
JP5 |
pins 2 & 3 closed |
|
NPU mode select synchronous with oscillator installed at OSC1 |
JP5 |
pins 1 & 2 closed | |
| » |
CMOS memory normal operation |
JP10 |
Open |
|
CMOS memory clear |
JP10 |
Closed | |
|
DRAM CONFIGURATION | ||||||
|
Size |
Bank 0 |
Parity (P-0) |
Bank 1 |
Parity (P-1) |
Bank 2 |
Bank 3 |
|
512KB |
(4) 44256 |
(2) 41256 |
NONE |
NONE |
NONE |
NONE |
|
512KB |
NONE |
NONE |
NONE |
NONE |
(2) 256K x 9 |
NONE |
|
1MB |
(4) 44256 |
(2) 41256 |
(4) 44256 |
(2) 41256 |
NONE |
NONE |
|
1MB |
NONE |
NONE |
NONE |
NONE |
(2) 256K x 9 |
(2) 256K x 9 |
|
2MB |
NONE |
NONE |
NONE |
NONE |
(2) 1M x 9 |
NONE |
|
4MB |
NONE |
NONE |
NONE |
NONE |
(2) 1M x 9 |
(2) 1M x 9 |
