FREE COMPUTER TECHNOLOGY, INC.
80486ISA (03-009X-00)
|
Device Type |
Mainboard |
|
Processor |
80486SX/80487SX/80486DX |
|
Processor Speed |
25/33MHz |
|
Chip Set |
OPTI 486WB |
|
Video Chip Set |
None |
|
Maximum Onboard Memory |
32MB |
|
Maximum Video Memory |
None |
|
Cache |
64/256KB |
|
BIOS |
Unidentified |
|
Dimensions |
330mm x 218mm |
|
I/O Options |
None |
|
NPU Options |
4167 |
|

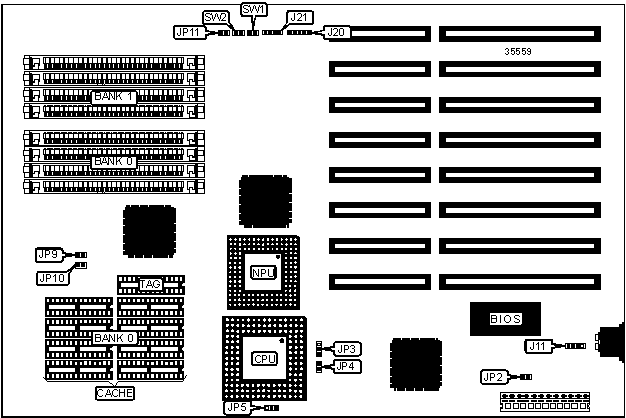

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
External battery |
J11 |
Turbo LED |
JP11 |
|
Power LED & keylock |
J20 |
Reset switch |
SW1 |
|
Speaker |
J21 |
Turbo switch |
SW2 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
|
Monitor type select color |
JP2 |
Open | |
|
Monitor type select monochrome |
JP2 |
Closed | |
|
SIMM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
1MB |
(4) 256K x 9 |
None |
|
2MB |
(4) 256K x 9 |
(4) 256K x 9 |
|
4MB |
(4) 1M x 9 |
None |
|
5MB |
(4) 1M x 9 |
(4) 256K x 9 |
|
8MB |
(4) 1M x 9 |
(4) 1M x 9 |
|
16MB |
(4) 4M x 9 |
None |
|
20MB |
(4) 1M x 9 |
(4) 4M x 9 |
|
20MB |
(4) 4M x 9 |
(4) 1M x 9 |
|
32MB |
(4) 4M x 9 |
(4) 4M x 9 |
|
CACHE CONFIGURATION | ||
|
Size |
Bank 0 |
TAG |
|
64KB |
(8) 8K x 8 |
(1) 8K x 8 |
|
256KB |
(8) 32K x 8 |
(1) 32K x 8 |
|
CACHE JUMPER CONFIGURATION | ||
|
Size |
JP9 |
JP10 |
|
64KB |
Open |
Open |
|
256KB |
Closed |
Closed |
|
CPU TYPE SELECTION | |||
|
Type |
JP3 |
JP4 |
JP5 |
|
80486SX |
Open |
Open |
Pins 2 & 3 closed |
|
80487SX |
Pins 1 & 2 closed |
Closed |
Pins 1 & 2 closed |
|
80486DX |
Pins 2 & 3 closed |
Closed |
Pins 1 & 2 closed |
