Device Type

Mainboard

Processor

Pentium Pro

Processor Speed

150/166/180/200/233/266MHz

Chip Set

Intel

Video Chip Set

None

Maximum Onboard Memory

192MB (EDO supported)

Maximum Video Memory

None

Cache

256/512KB (located on Pentium Pro CPU)

BIOS

Unidentified

Dimensions

330mm x 218mm

I/O Options

Floppy drive interface, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2)

NPU Options

None

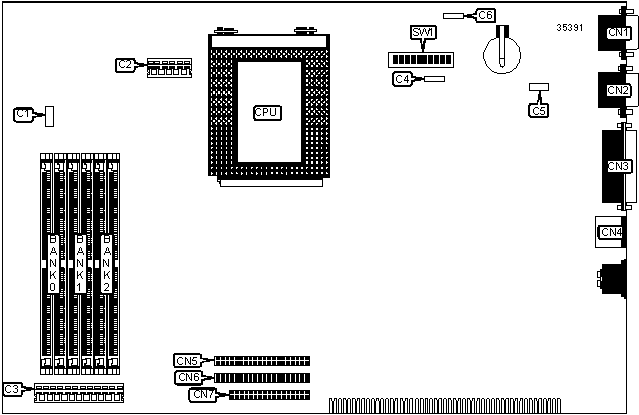

CONNECTIONS

Purpose

Location

Purpose

Location

Control panel connector

C1

Serial port 1

CN2

3.3v power

C2

Parallel port

CN3

5v power

C3

PS/2 mouse port

CN4

Speaker

C4

IDE interface 1

CN5

External start connector

C5

IDE interface 2

CN6

External battery

C6

Floppy drive interface

CN7

Serial port 2

CN1

USER CONFIGURABLE SETTINGS

Function

Label

Position

»

CMOS memory normal operation

SW1/6

Off

CMOS memory clear

SW1/6

On

»

Password normal operation

SW1/7

Off

Password clear

SW1/7

On

»

Keyboard power down disabled

SW1/8

Off

Keyboard power down enabled

SW1/8

On

»

Normal operation

SW1/9

Off

Clear product ID

SW1/9

On

»

Factory configured - do not alter

SW1/10

Off

SIMM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

16MB

(2) 2M x 36

None

None

24MB

(2) 1M x 36

(2) 1M x 36

(2) 1M x 36

32MB

(2) 2M x 36

(2) 2M x 36

None

32MB

(2) 4M x 36

None

None

48MB

(2) 2M x 36

(2) 2M x 36

(2) 2M x 36

64MB

(2) 4M x 36

(2) 4M x 36

None

64MB

(2) 8M x 36

None

None

96MB

(2) 4M x 36

(2) 4M x 36

(2) 4M x 36

128MB

(2) 8M x 36

(2) 8M x 36

None

128MB

(2) 16M x 36

None

None

136MB

(2) 16M x 36

(2) 1M x 36

None

144MB

(2) 16M x 36

(2) 1M x 36

(2) 1M x 36

144MB

(2) 16M x 36

(2) 2M x 36

None

SIMM CONFIGURATION (CON'T)

Size

Bank 0

Bank 1

Bank 2

160MB

(2) 16M x 36

(2) 2M x 36

(2) 2M x 36

160MB

(2) 16M x 36

(2) 4M x 36

None

192MB

(2) 16M x 36

(2) 4M x 36

(2) 4M x 36

192MB

(2) 16M x 36

(2) 8M x 36

None

192MB

(2) 8M x 36

(2) 8M x 36

(2) 8M x 36

Note: Board accepts EDO memory.

CACHE CONFIGURATION

Note: 256KB/512KB cache is located on the Pentium Pro CPU.

CPU SPEED SELECTION

CPU speed

Clock speed

Multiplier

SW1/1

SW1/2

SW1/3

SW1/4

SW1/5

150MHz

60MHz

2.5x

On

Off

Off

Off

On

166MHz

66MHz

2.5x

Off

Off

Off

Off

On

180MHz

60MHz

3x

On

Off

Off

On

Off

200MHz

66MHz

3x

Off

Off

Off

On

Off

233MHz

66MHz

3.5x

Off

Off

Off

On

On

266MHz

66MHz

4x

Off

Off

On

Off

Off
