HEWLETT-PACKARD COMPANY
HP VECTRA XW
|
Device Type |
Mainboard |
|
Processor |
Pentium Pro |
|
Processor Speed |
200MHz |
|
Chip Set |
Intel |
|
Video Chip Set |
None |
|
Maximum Onboard Memory |
512MB (EDO & SDRAM supported) |
|
Maximum Video Memory |
None |
|
Cache |
256/512KB (located on Pentium Pro CPU) |
|
BIOS |
Unidentified |
|
Dimensions |
305mm x 244mm |
|
I/O Options |
32-bit PCI slots (4), floppy drive interface, game/MIDI port, IDE interfaces (2), SCSI interface, External SCSI interface, parallel port, PS/2 mouse port, serial ports (2), VRM connectors (2), ATX power connector, line in, line out, microphone in, audio in – CD-ROM |
|
NPU Options |
None |
|

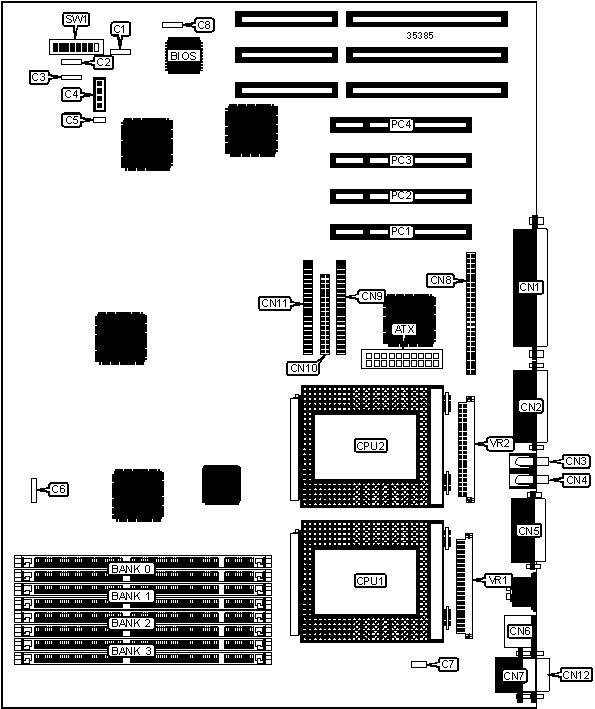

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
ATX power connector |
ATX |
Line in |
CN4 |
|
External start connector |
C1 |
Game/MIDI port |
CN5 |
|
Speaker |
C2 |
PS/2 mouse port |
CN6 |
|
Multimedia connector |
C3 |
Serial port 1 |
CN7 |
|
Audio in – CD-ROM |
C4 |
SCSI interface |
CN8 |
|
Microphone in |
C5 |
IDE interface 1 |
CN9 |
|
Control panel connector |
C6 |
Floppy drive interface |
CN10 |
|
Chassis fan power |
C7 |
IDE interface 2 |
CN11 |
|
External battery |
C8 |
Serial port 2 |
CN12 |
|
External SCSI interface |
CN1 |
32-bit PCI slots |
PC1 – PC4 |
|
Parallel port |
CN2 |
VRM connector |
VR1 |
|
Line out |
CN3 |
VRM connector |
VR2 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
|
» |
CMOS memory normal operation |
SW1/1 |
Off |
|
CMOS memory clear |
SW1/1 |
On | |
|
» |
Password normal operation |
SW1/2 |
Off |
|
Password clear |
SW1/2 |
On | |
|
» |
Setup access disabled |
SW1/3 |
Off |
|
Setup access enabled |
SW1/3 |
On | |
|
DIMM CONFIGURATION | ||||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
|
64MB |
(2) 4M x 64 |
None |
None |
None |
|
128MB |
(2) 4M x 64 |
(2) 4M x 64 |
None |
None |
|
128MB |
(2) 8M x 64 |
None |
None |
None |
|
192MB |
(2) 8M x 64 |
(2) 4M x 64 |
None |
None |
|
192MB |
(2) 4M x 64 |
(2) 4M x 64 |
(2) 4M x 64 |
None |
|
256MB |
(2) 8M x 64 |
(2) 4M x 64 |
(2) 4M x 64 |
None |
|
256MB |
(2) 4M x 64 |
(2) 4M x 64 |
(2) 4M x 64 |
(2) 4M x 64 |
|
256MB |
(2) 8M x 64 |
(2) 8M x 64 |
None |
None |
|
320MB |
(2) 8M x 64 |
(2) 4M x 64 |
(2) 4M x 64 |
(2) 4M x 64 |
|
320MB |
(2) 8M x 64 |
(2) 8M x 64 |
(2) 4M x 64 |
None |
|
384MB |
(2) 8M x 64 |
(2) 8M x 64 |
(2) 4M x 64 |
(2) 4M x 64 |
|
384MB |
(2) 8M x 64 |
(2) 8M x 64 |
(2) 8M x 64 |
None |
|
512MB |
(2) 8M x 64 |
(2) 8M x 64 |
(2) 8M x 64 |
(2) 8M x 64 |
|
Note: Board accepts SDRAM memory. | ||||
|
CACHE CONFIGURATION |
|
Note: 256KB/512KB cache is located on the Pentium Pro CPU. |
|
CPU SPEED SELECTION | |||||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/4 |
SW1/5 |
SW1/6 |
SW1/7 |
SW1/8 |
|
200MHz |
66MHz |
3x |
Off |
Off |
Off |
On |
Off |
