Device Type	Mainboard
Processor	Pentium II
Processor Speed	233/266/300/333/366/400/433/466/500/533MHz
Chip Set	Intel
Video Chip Set	None
Maximum Onboard Memory	512MB (EDO & SDRAM supported)
Maximum Video Memory	None
Cache	256/512KB (located on Pentium II CPU)
BIOS	AMI
Dimensions	355mm x 304mm
I/O Options	32-bit PCI slots (4), floppy drive interface, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), IR connector, USB connectors (2), ATX power connector, AGP slot
NPU Options	None

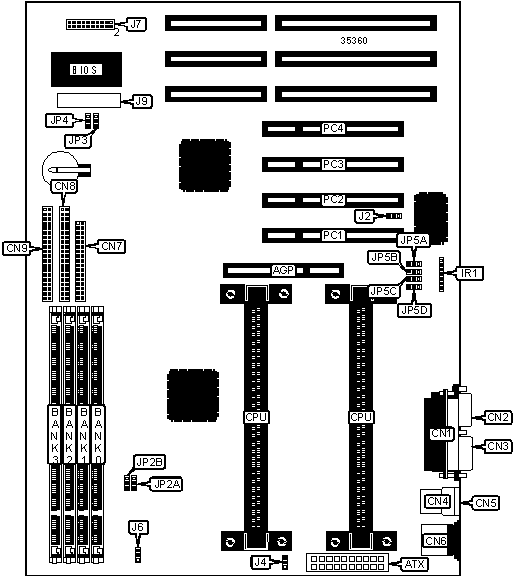

CONNECTIONS
Purpose	Location	Purpose	Location
AGP slot	AGP	Wake on LAN connector	J2
ATX power connector	ATX	CPU fan power 1	J4
Parallel port	CN1	CPU fan power 2	J6
Serial port 2	CN2	Speaker	J7/pins 1/3/5/7
Serial port 1	CN3	Power LED & keylock	J7/pins 2/4/6/8/10
USB connector 1	CN4	Turbo LED	J7/pins 13 & 14
USB connector 2	CN5	IDE interface LED	J7/pins 15 & 16
PS/2 mouse port	CN6	Reset switch	J7/pins 17 & 18
Floppy drive interface	CN7	Soft off power supply	J7/pins 19 & 20
IDE interface 2	CN8	APIC slot	J9
IDE interface 1	CN9	32-bit PCI slots	PC1 – PC4
IR connector	IR1

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	CMOS memory normal operation	JP3	Pins 1 & 2 closed
	CMOS memory clear	JP3	Pins 2 & 3 closed
	CPU SMI source select PIIX4	JP4	Pins 1 & 2 closed
	CPU SMI source select I/O APIC	JP4	Pins 2 & 3 closed

DIMM CONFIGURATION
Size	Bank 0	Bank 1	Bank 2	Bank 3
8MB	(1) 1M x 64	None	None	None
16MB	(1) 2M x 64	None	None	None
16MB	(1) 1M x 64	(1) 1M x 64	None	None
24MB	(1) 2M x 64	(1) 1M x 64	None	None
24MB	(1) 1M x 64	(1) 1M x 64	(1) 1M x 64	None
32MB	(1) 4M x 64	None	None	None
32MB	(1) 2M x 64	(1) 2M x 64	None	None
32MB	(1) 1M x 64	(1) 1M x 64	(1) 1M x 64	(1) 1M x 64
40MB	(1) 4M x 64	(1) 1M x 64	None	None
48MB	(1) 4M x 64	(1) 2M x 64	None	None
48MB	(1) 2M x 64	(1) 2M x 64	(1) 2M x 64	None
64MB	(1) 2M x 64	(1) 2M x 64	(1) 2M x 64	(1) 2M x 64
64MB	(1) 8M x 64	None	None	None
64MB	(1) 4M x 64	(1) 4M x 64	None	None

DIMM CONFIGURATION (CON’T)
Size	Bank 0	Bank 1	Bank 2	Bank 3
72MB	(1) 8M x 64	(1) 1M x 64	None	None
80MB	(1) 8M x 64	(1) 2M x 64	None	None
96MB	(1) 8M x 64	(1) 4M x 64	None	None
96MB	(1) 4M x 64	(1) 4M x 64	(1) 4M x 64	None
128MB	(1) 16M x 64	None	None	None
128MB	(1) 8M x 64	(1) 8M x 64	None	None
128MB	(1) 4M x 64	(1) 4M x 64	(1) 4M x 64	(1) 4M x 64
136MB	(1) 16M x 64	(1) 1M x 64	None	None
144MB	(1) 16M x 64	(1) 2M x 64	None	None
152MB	(1) 16M x 64	(1) 1M x 64	(1) 1M x 64	(1) 1M x 64
160MB	(1) 16M x 64	(1) 4M x 64	None	None
176MB	(1) 16M x 64	(1) 2M x 64	(1) 2M x 64	(1) 2M x 64
192MB	(1) 16M x 64	(1) 8M x 64	None	None
192MB	(1) 8M x 64	(1) 8M x 64	(1) 8M x 64	None
224MB	(1) 16M x 64	(1) 4M x 64	(1) 4M x 64	(1) 4M x 64
256MB	(1) 16M x 64	(1) 16M x 64	None	None
256MB	(1) 8M x 64	(1) 8M x 64	(1) 8M x 64	(1) 8M x 64
272MB	(1) 16M x 64	(1) 16M x 64	(1) 1M x 64	(1) 1M x 64
288MB	(1) 16M x 64	(1) 16M x 64	(1) 2M x 64	(1) 2M x 64
320MB	(1) 16M x 64	(1) 16M x 64	(1) 4M x 64	(1) 4M x 64
320MB	(1) 16M x 64	(1) 8M x 64	(1) 8M x 64	(1) 8M x 64
384MB	(1) 16M x 64	(1) 16M x 64	(1) 16M x 64	None
512MB	(1) 16M x 64	(1) 16M x 64	(1) 16M x 64	(1) 16M x 64
Note: Board accepts EDO & SDRAM memory.

DIMM VOLTAGE CONFIGURATION
Voltage		JP2A	JP2B
»	3.3v	Pins 1 & 2 closed	Pins 1 & 2 closed
	5v	Pins 2 & 3 closed	Pins 2 & 3 closed

CACHE CONFIGURATION

Note: 256KB/512KB cache is located on the Pentium II CPU.

CPU SPEED SELECTION
CPU speed	Clock speed	Multiplier	JP5A	JP5B	JP5C	JP5D
233MHz	66MHz	3.5x	1 & 2	1 & 2	2 & 3	2 & 3
266MHz	66MHz	4x	2 & 3	2 & 3	1 & 2	2 & 3
300MHz	66MHz	4.5x	1 & 2	2 & 3	1 & 2	2 & 3
333MHz	66MHz	5x	2 & 3	1 & 2	1 & 2	2 & 3
366MHz	66MHz	5.5x	1 & 2	1 & 2	1 & 2	2 & 3
400MHz	66MHz	6x	2 & 3	2 & 3	2 & 3	1 & 2
433MHz	66MHz	6.5x	1 & 2	2 & 3	2 & 3	1 & 2
466MHz	66MHz	7x	2 & 3	1 & 2	2 & 3	1 & 2
500MHz	66MHz	7.5x	1 & 2	1 & 2	2 & 3	1 & 2
533MHz	66MHz	8x	2 & 3	2 & 3	1 & 2	1 & 2
Note: Pins designated should be in the closed position.
