P5SV-B

ELITEGROUP COMPUTER SYSTEMS, INC.

P5SV-B

Processor

CX 6X86/CX 6X86L/CX 686MX/IBM 6X86/ IBM 6X86L/IBM 686MX/ AM K5/AM K6/Pentium

Processor Speed

90/100/120/133/150/166/200/233/266MHz

Chip Set

SIS

Video Chip Set

None

Maximum Onboard Memory

256MB (EDO supported)

Maximum Video Memory

None

Cache

256/512KB

BIOS

Award

Dimensions

254mm x 218mm

I/O Options

32-bit PCI slots (3), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse interface, serial ports (2), IR connectors (2), USB connector

NPU Options

None

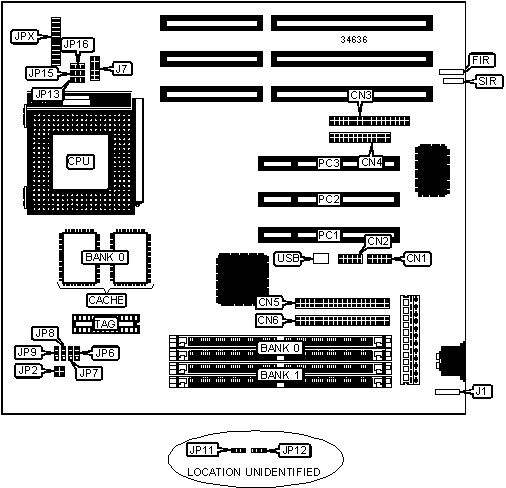

CONNECTIONS

Purpose

Location

Purpose

Location

Serial port 2

CN1

IDE interface LED

JPX/pins 2 & 3

Serial port 1

CN2

Green PC connector

JPX /pins 4 & 5

Floppy drive interface

CN3

Reset switch

JPX /pins 9 & 10

Parallel port

CN4

Power LED & keylock

JPX /pins 11 - 16

IDE interface 1

CN5

Speaker

JPX /pins 17 - 20

IDE interface 2

CN6

IR connector

SIR

Fast IR connector

FIR

32-bit PCI slots

PC1 – PC3

PS/2 mouse interface

J1

USB connector

USB

USER CONFIGURABLE SETTINGS

Function

Label

Position

»

Factory configured - do not alter

JP6

Unidentified

»

CMOS memory normal operation

JP11

Pins 1 & 2 closed

CMOS memory clear

JP11

Pins 2 & 3 closed

»

Flash BIOS enabled

JP12

Pins 2 & 3 closed

Flash BIOS disabled

JP12

Pins 1 & 2 closed

SIMM CONFIGURATION

Size

Bank 0

Bank 1

8MB

(2) 1M x 36

None

16MB

(2) 2M x 36

None

16MB

(2) 1M x 36

(2) 1M x 36

24MB

(2) 2M x 36

(2) 1M x 36

32MB

(2) 4M x 36

None

32MB

(2) 2M x 36

(2) 2M x 36

40MB

(2) 4M x 36

(2) 1M x 36

48MB

(2) 4M x 36

(2) 2M x 36

64MB

(2) 8M x 36

None

64MB

(2) 4M x 36

(2) 4M x 36

72MB

(2) 8M x 36

(2) 1M x 36

80MB

(2) 8M x 36

(2) 2M x 36

96MB

(2) 8M x 36

(2) 4M x 36

128MB

(2) 8M x 36

(2) 8M x 36

128MB

(2) 16M x 36

None

136MB

(2) 16M x 36

(2) 1M x 36

144MB

(2) 16M x 36

(2) 2M x 36

160MB

(2) 16M x 36

(2) 4M x 36

192MB

(2) 16M x 36

(2) 8M x 36

256MB

(2) 16M x 36

(2) 16M x 36

Note: Board accepts EDO memory.

CACHE CONFIGURATION

Size

Bank 0

TAG

256KB

(2) 32K x 32

Unidentified

512KB

(2) 64K x 32

Unidentified

CPU SPEED SELECTION (CX 6X86/6X86L)

CPU speed

Clock speed

Multiplier

JP7

JP8

JP9

JP13

JP15

JP16

166MHz

66MHz

2x

2 & 3

1 & 2

2 & 3

1 & 2

1 & 2

Open

200MHz

75MHz

2x

1 & 2

2 & 3

1 & 2

1 & 2

1 & 2

Open

Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (CX 6X86MX)

CPU speed

Clock speed

Multiplier

JP7

JP8

JP9

JP13

JP15

JP16

166MHz

60MHz

2.5x

2 & 3

2 & 3

1 & 2

2 & 3

1 & 2

Open

200MHz

66MHz

2.5x

2 & 3

1 & 2

2 & 3

2 & 3

1 & 2

Open

233MHz

66MHz

3x

2 & 3

1 & 2

2 & 3

1 & 2

2 & 3

Open

Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (IBM 6X86/6X86L)

CPU speed

Clock speed

Multiplier

JP7

JP8

JP9

JP13

JP15

JP16

166MHz

66MHz

2x

2 & 3

1 & 2

2 & 3

1 & 2

1 & 2

Open

200MHz

75MHz

2x

1 & 2

2 & 3

1 & 2

1 & 2

1 & 2

Open

Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (IBM 6X86MX)

CPU speed

Clock speed

Multiplier

JP7

JP8

JP9

JP13

JP15

JP16

166MHz

60MHz

2.5x

2 & 3

2 & 3

1 & 2

2 & 3

1 & 2

Open

200MHz

66MHz

2.5x

2 & 3

1 & 2

2 & 3

2 & 3

1 & 2

Open

233MHz

66MHz

3x

2 & 3

1 & 2

2 & 3

1 & 2

2 & 3

Open

Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (AM K5)

CPU speed

Clock speed

Multiplier

JP7

JP8

JP9

JP13

JP15

JP16

90MHz

60MHz

1.5x

2 & 3

2 & 3

1 & 2

1 & 2

1 & 2

Open

100MHz

66MHz

1.5x

2 & 3

1 & 2

2 & 3

1 & 2

2 & 3

Open

120MHz

60MHz

2x

2 & 3

2 & 3

1 & 2

1 & 2

1 & 2

Open

133MHz

66MHz

2x

2 & 3

1 & 2

2 & 3

1 & 2

1 & 2

Open

150MHz

60MHz

2.5x

2 & 3

2 & 3

1 & 2

2 & 3

1 & 2

Open

166MHz

66MHz

2.5x

2 & 3

1 & 2

2 & 3

2 & 3

1 & 2

Open

Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (AM K6)

CPU speed

Clock speed

Multiplier

JP7

JP8

JP9

JP13

JP15

JP16

166MHz

66MHz

2.5x

2 & 3

1 & 2

2 & 3

2 & 3

1 & 2

Open

200MHz

66MHz

3x

2 & 3

1 & 2

2 & 3

1 & 2

2 & 3

Open

233MHz

66MHz

3.5x

2 & 3

1 & 2

2 & 3

1 & 2

1 & 2

Open

266MHz

66MHz

4x

2 & 3

1 & 2

2 & 3

2 & 3

1 & 2

Open

Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (INTEL)

CPU speed

Clock speed

Multiplier

JP7

JP8

JP9

JP13

JP15

JP16

90MHz

60MHz

1.5x

2 & 3

2 & 3

1 & 2

1 & 2

1 & 2

Open

100MHz

66MHz

1.5x

2 & 3

1 & 2

2 & 3

1 & 2

1 & 2

Open

120MHz

60MHz

2x

2 & 3

2 & 3

1 & 2

1 & 2

1 & 2

Open

133MHz

66MHz

2x

2 & 3

1 & 2

2 & 3

1 & 2

1 & 2

Open

150MHz

60MHz

2.5x

2 & 3

2 & 3

1 & 2

2 & 3

1 & 2

Open

166MHz

66MHz

2.5x

2 & 3

1 & 2

2 & 3

2 & 3

1 & 2

Open

200MHz

66MHz

3x

2 & 3

1 & 2

2 & 3

1 & 2

2 & 3

Open

233MHz

66MHz

3.5x

2 & 3

1 & 2

2 & 3

1 & 2

1 & 2

Open

Note: Pins designated should be in the closed position.

CPU VOLTAGE SELECTION (SINGLE)

Voltage

JP2

3.3v

Pins 1 & 2 closed

3.54v

Pins 3 & 4 closed

CPU VOLTAGE SELECTION (DUAL)

V core

J7

»
Single

Pins 3 & 4, 5 & 6, 7 & 8, 9 & 10 closed

1.8v

Pins 1 & 2, 3 & 4, 7 & 8 closed

2.54v

Pins 5 & 6, 9 & 10 closed

2.84v

Pins 3 & 4 closed

2.94v

Pins 3 & 4, 9 & 10 closed

3.24v

Pins 3 & 4, 5 & 6 closed

3.34v

Pins 3 & 4, 5 & 6, 7 & 8 closed

Processor	CX 6X86/CX 6X86L/CX 686MX/IBM 6X86/ IBM 6X86L/IBM 686MX/ AM K5/AM K6/Pentium
Processor Speed	90/100/120/133/150/166/200/233/266MHz
Chip Set	SIS
Video Chip Set	None
Maximum Onboard Memory	256MB (EDO supported)
Maximum Video Memory	None
Cache	256/512KB
BIOS	Award
Dimensions	254mm x 218mm
I/O Options	32-bit PCI slots (3), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse interface, serial ports (2), IR connectors (2), USB connector
NPU Options	None

CONNECTIONS
Purpose	Location	Purpose	Location
Serial port 2	CN1	IDE interface LED	JPX/pins 2 & 3
Serial port 1	CN2	Green PC connector	JPX /pins 4 & 5
Floppy drive interface	CN3	Reset switch	JPX /pins 9 & 10
Parallel port	CN4	Power LED & keylock	JPX /pins 11 - 16
IDE interface 1	CN5	Speaker	JPX /pins 17 - 20
IDE interface 2	CN6	IR connector	SIR
Fast IR connector	FIR	32-bit PCI slots	PC1 – PC3
PS/2 mouse interface	J1	USB connector	USB

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Factory configured - do not alter	JP6	Unidentified
»	CMOS memory normal operation	JP11	Pins 1 & 2 closed
	CMOS memory clear	JP11	Pins 2 & 3 closed
»	Flash BIOS enabled	JP12	Pins 2 & 3 closed
	Flash BIOS disabled	JP12	Pins 1 & 2 closed

SIMM CONFIGURATION
Size	Bank 0	Bank 1
8MB	(2) 1M x 36	None
16MB	(2) 2M x 36	None
16MB	(2) 1M x 36	(2) 1M x 36
24MB	(2) 2M x 36	(2) 1M x 36
32MB	(2) 4M x 36	None
32MB	(2) 2M x 36	(2) 2M x 36
40MB	(2) 4M x 36	(2) 1M x 36
48MB	(2) 4M x 36	(2) 2M x 36
64MB	(2) 8M x 36	None
64MB	(2) 4M x 36	(2) 4M x 36
72MB	(2) 8M x 36	(2) 1M x 36
80MB	(2) 8M x 36	(2) 2M x 36
96MB	(2) 8M x 36	(2) 4M x 36
128MB	(2) 8M x 36	(2) 8M x 36
128MB	(2) 16M x 36	None
136MB	(2) 16M x 36	(2) 1M x 36
144MB	(2) 16M x 36	(2) 2M x 36
160MB	(2) 16M x 36	(2) 4M x 36
192MB	(2) 16M x 36	(2) 8M x 36
256MB	(2) 16M x 36	(2) 16M x 36
Note: Board accepts EDO memory.

CACHE CONFIGURATION
Size	Bank 0	TAG
256KB	(2) 32K x 32	Unidentified
512KB	(2) 64K x 32	Unidentified

CPU SPEED SELECTION (CX 6X86/6X86L)
CPU speed	Clock speed	Multiplier	JP7	JP8	JP9	JP13	JP15	JP16
166MHz	66MHz	2x	2 & 3	1 & 2	2 & 3	1 & 2	1 & 2	Open
200MHz	75MHz	2x	1 & 2	2 & 3	1 & 2	1 & 2	1 & 2	Open
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (CX 6X86MX)
CPU speed	Clock speed	Multiplier	JP7	JP8	JP9	JP13	JP15	JP16
166MHz	60MHz	2.5x	2 & 3	2 & 3	1 & 2	2 & 3	1 & 2	Open
200MHz	66MHz	2.5x	2 & 3	1 & 2	2 & 3	2 & 3	1 & 2	Open
233MHz	66MHz	3x	2 & 3	1 & 2	2 & 3	1 & 2	2 & 3	Open
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (IBM 6X86MX)
CPU speed	Clock speed	Multiplier	JP7	JP8	JP9	JP13	JP15	JP16
166MHz	60MHz	2.5x	2 & 3	2 & 3	1 & 2	2 & 3	1 & 2	Open
200MHz	66MHz	2.5x	2 & 3	1 & 2	2 & 3	2 & 3	1 & 2	Open
233MHz	66MHz	3x	2 & 3	1 & 2	2 & 3	1 & 2	2 & 3	Open
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (AM K5)
CPU speed	Clock speed	Multiplier	JP7	JP8	JP9	JP13	JP15	JP16
90MHz	60MHz	1.5x	2 & 3	2 & 3	1 & 2	1 & 2	1 & 2	Open
100MHz	66MHz	1.5x	2 & 3	1 & 2	2 & 3	1 & 2	2 & 3	Open
120MHz	60MHz	2x	2 & 3	2 & 3	1 & 2	1 & 2	1 & 2	Open
133MHz	66MHz	2x	2 & 3	1 & 2	2 & 3	1 & 2	1 & 2	Open
150MHz	60MHz	2.5x	2 & 3	2 & 3	1 & 2	2 & 3	1 & 2	Open
166MHz	66MHz	2.5x	2 & 3	1 & 2	2 & 3	2 & 3	1 & 2	Open
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (AM K6)
CPU speed	Clock speed	Multiplier	JP7	JP8	JP9	JP13	JP15	JP16
166MHz	66MHz	2.5x	2 & 3	1 & 2	2 & 3	2 & 3	1 & 2	Open
200MHz	66MHz	3x	2 & 3	1 & 2	2 & 3	1 & 2	2 & 3	Open
233MHz	66MHz	3.5x	2 & 3	1 & 2	2 & 3	1 & 2	1 & 2	Open
266MHz	66MHz	4x	2 & 3	1 & 2	2 & 3	2 & 3	1 & 2	Open
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (INTEL)
CPU speed	Clock speed	Multiplier	JP7	JP8	JP9	JP13	JP15	JP16
90MHz	60MHz	1.5x	2 & 3	2 & 3	1 & 2	1 & 2	1 & 2	Open
100MHz	66MHz	1.5x	2 & 3	1 & 2	2 & 3	1 & 2	1 & 2	Open
120MHz	60MHz	2x	2 & 3	2 & 3	1 & 2	1 & 2	1 & 2	Open
133MHz	66MHz	2x	2 & 3	1 & 2	2 & 3	1 & 2	1 & 2	Open
150MHz	60MHz	2.5x	2 & 3	2 & 3	1 & 2	2 & 3	1 & 2	Open
166MHz	66MHz	2.5x	2 & 3	1 & 2	2 & 3	2 & 3	1 & 2	Open
200MHz	66MHz	3x	2 & 3	1 & 2	2 & 3	1 & 2	2 & 3	Open
233MHz	66MHz	3.5x	2 & 3	1 & 2	2 & 3	1 & 2	1 & 2	Open
Note: Pins designated should be in the closed position.

CPU VOLTAGE SELECTION (SINGLE)
Voltage	JP2
3.3v	Pins 1 & 2 closed
3.54v	Pins 3 & 4 closed

CPU VOLTAGE SELECTION (DUAL)
V core		J7
»	Single	Pins 3 & 4, 5 & 6, 7 & 8, 9 & 10 closed
	1.8v	Pins 1 & 2, 3 & 4, 7 & 8 closed
	2.54v	Pins 5 & 6, 9 & 10 closed
	2.84v	Pins 3 & 4 closed
	2.94v	Pins 3 & 4, 9 & 10 closed
	3.24v	Pins 3 & 4, 5 & 6 closed
	3.34v	Pins 3 & 4, 5 & 6, 7 & 8 closed
