Processor	CX 6X86/CX 6X86L/CX 6X86MX/IBM 6X86/ IBM 6X86L/ IBM 6X86MX AM K5/AM K6/Pentium
Processor Speed	90/100/120/133/150/166/200/233MHz
Chip Set	Intel
Video Chip Set	None
Maximum Onboard Memory	256MB (EDO supported)
Maximum Video Memory	None
Cache	256/512KB
BIOS	Award
Dimensions	254mm x 218mm
I/O Options	32-bit PCI slots (5), floppy drive interface, IDE interfaces (2), parallel port, PS/2 mouse interface, serial ports (2), IR connector, USB connector, ATX power connector
NPU Options	None

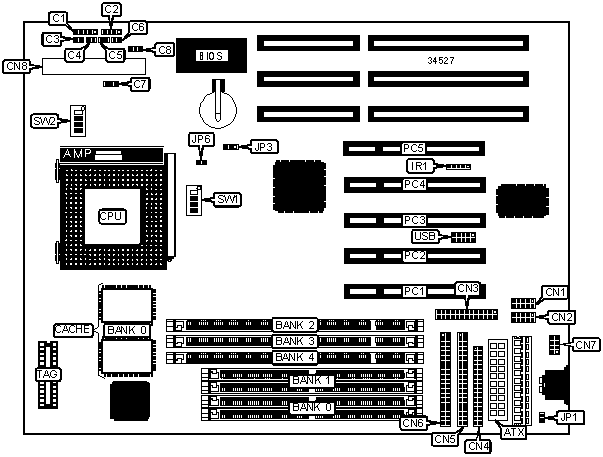

CONNECTIONS
Purpose	Location	Purpose	Location
ATX power connector	ATX	Serial port 2	CN2
Power LED & keylock	C1	Parallel port	CN3
Speaker	C2	Floppy drive interface	CN4
Soft off power supply	C3	IDE interface 2	CN5
Reset switch	C4	IDE interface 1	CN6
Turbo LED	C5	PS/2 mouse interface	CN7
IDE interface LED	C6	System Management Connector	CN8
Chassis fan power	C7	IR connector	IR1
Chassis fan power	C8	32-bit PCI slots	PC1 – PC5
Serial port 1	CN1	USB connector	USB

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	CMOS memory normal operation	JP3	Open
	CMOS memory clear	JP3	Pins 2 & 3 closed

DIMM/SIMM CONFIGURATION
Size	Bank 0	Bank 1	Bank 2	Bank 3	Bank 4
8MB	(2) 1M x 36	None	None	None	None
8MB	None	None	(1) 1M x 64	None	None
16MB	(2) 2M x 36	None	None	None	None
16MB	(2) 1M x 36	(2) 1M x 36	None	None	None
16MB	None	None	(1) 2M x 64	None	None
16MB	None	None	(1) 1M x 64	(1) 1M x 64	None
16MB	None	(2) 1M x 36	(1) 1M x 64	None	None
24MB	(2) 2M x 36	(2) 1M x 36	None	None	None
24MB	None	None	(1) 2M x 64	(1) 1M x 64	None
24MB	None	None	(1) 1M x 64	(1) 1M x 64	(1) 1M x 64
24MB	(2) 1M x 36	(2) 1M x 36	(1) 1M x 64	None	None
24MB	(2) 1M x 36	None	(1) 1M x 64	None	(1) 1M x 64
32MB	(2) 4M x 36	None	None	None	None
32MB	(2) 2M x 36	(2) 2M x 36	None	None	None
32MB	None	None	(1) 4M x 64	None	None
32MB	None	None	(1) 2M x 64	(1) 2M x 64	None
32MB	(2) 1M x 36	(2) 1M x 36	(1) 2M x 64	None	None
40MB	(2) 4M x 36	(2) 1M x 36	None	None	None
40MB	None	None	(1) 4M x 64	(1) 1M x 64	None
40MB	(2) 2M x 36	(2) 2M x 36	(1) 1M x 64	None	None
48MB	(2) 4M x 36	(2) 2M x 36	None	None	None
48MB	None	None	(1) 4M x 64	(1) 2M x 64	None
48MB	None	None	(1) 2M x 64	(1) 2M x 64	(1) 2M x 64
48MB	(2) 2M x 36	(2) 2M x 36	(1) 2M x 64	None	None

DIMM/SIMM CONFIGURATION (CON’T)
Size	Bank 0	Bank 1	Bank 2	Bank 3	Bank 4
48MB	(2) 1M x 36	(2) 1M x 36	(1) 4M x 64	None	None
48MB	None	(2) 2M x 36	(1) 2M x 64	(1) 2M x 64	None
48MB	(2) 2M x 36	None	(1) 2M x 64	None	(1) 2M x 64
64MB	(2) 8M x 36	None	None	None	None
64MB	(2) 4M x 36	(2) 4M x 36	None	None	None
64MB	None	None	(1) 8M x 64	None	None
64MB	None	None	(1) 4M x 64	(1) 4M x 64	None
64MB	(2) 2M x 36	(2) 2M x 36	(1) 4M x 64	None	None
72MB	(2) 8M x 36	(2) 1M x 36	None	None	None
72MB	None	None	(1) 8M x 64	(1) 1M x 64	None
72MB	(2) 4M x 36	(2) 4M x 36	(1) 1M x 64	None	None
80MB	(2) 8M x 36	(2) 2M x 36	None	None	None
80MB	None	None	(1) 8M x 64	(1) 2M x 64	None
80MB	(2) 4M x 36	(2) 4M x 36	(1) 2M x 64	None	None
96MB	(2) 8M x 36	(2) 4M x 36	None	None	None
96MB	None	None	(1) 8M x 64	(1) 4M x 64	None
96MB	None	None	(1) 4M x 64	(1) 4M x 64	(1) 4M x 64
96MB	(2) 4M x 36	(2) 4M x 36	(1) 4M x 64	None	None
96MB	None	(2) 4M x 36	(1) 4M x 64	(1) 4M x 64	None
96MB	(2) 4M x 36	None	(1) 4M x 64	None	(1) 4M x 64
128MB	(2) 8M x 36	(2) 8M x 36	None	None	None
128MB	(2) 16M x 36	None	None	None	None
128MB	None	None	(1) 8M x 64	(1) 8M x 64	None
128MB	None	None	(1) 8M x 64	None	(1) 8M x 64
136MB	(2) 16M x 36	(2) 1M x 36	None	None	None
136MB	(2) 8M x 36	(2) 8M x 36	(1) 1M x 64	None	None
136MB	None	(2) 8M x 36	(1) 1M x 64	(1) 8M x 64	None
136MB	(2) 8M x 36	None	(1) 8M x 64	None	(1) 1M x 64
144MB	(2) 16M x 36	(2) 2M x 36	None	None	None
144MB	(2) 8M x 36	(2) 8M x 36	(1) 2M x 64	None	None
152MB	None	(2) 1M x 36	(1) 2M x 64	(1) 16M x 64	None
160MB	(2) 16M x 36	(2) 4M x 36	None	None	None
160MB	(2) 8M x 36	(2) 8M x 36	(1) 4M x 64	None	None
192MB	(2) 16M x 36	(2) 8M x 36	None	None	None
192MB	None	None	(1) 8M x 64	None	(1) 16M x 64
256MB	(2) 16M x 36	(2) 16M x 36	None	None	None
256MB	None	None	(1) 16M x 64	None	(1) 16M x 64
256MB	(2) 16M x 36	None	(1) 16M x 64	None	None
Note: Board accepts EDO memory.

CACHE CONFIGURATION
Size	Bank 0	TAG
256KB	(2) 32K x 32	Unidentified
512KB	(2) 64K x 32	Unidentified

CPU SPEED SELECTION (CX 6X86/6X86L)
CPU speed	Clock speed	Multiplier	SW1/1	SW1/2	SW1/3	SW1/4
133MHz	55MHz	2x	On	Off	On	On
150MHz	60MHz	2x	On	Off	On	Off
166MHz	66MHz	2x	On	Off	Off	Off

CPU SPEED SELECTION (IBM 6X86/6X86L)
CPU speed	Clock speed	Multiplier	SW1/1	SW1/2	SW1/3	SW1/4
133MHz	55MHz	2x	On	Off	On	On
150MHz	60MHz	2x	On	Off	On	Off
166MHz	66MHz	2x	On	Off	Off	Off

CPU SPEED SELECTION (CX 6X86MX)
CPU speed	Clock speed	Multiplier	SW1/1	SW1/2	SW1/3	SW1/4
166MHz	60MHz	2.5x	On	On	On	Off
200MHz	66MHz	2.5x	On	On	Off	Off
233MHz	66MHz	3x	Off	On	Off	Off

CPU SPEED SELECTION (IBM 6X86MX)
CPU speed	Clock speed	Multiplier	SW1/1	SW1/2	SW1/3	SW1/4
166MHz	60MHz	2.5x	On	On	On	Off
200MHz	66MHz	2.5x	On	On	Off	Off
233MHz	66MHz	3x	Off	On	Off	Off

CPU SPEED SELECTION (AM K5)
CPU speed	Clock speed	Multiplier	SW1/1	SW1/2	SW1/3	SW1/4
90MHz	60MHz	1.5x	Off	Off	On	Off
100MHz	66MHz	1.5x	Off	Off	Off	Off
120MHz	60MHz	1.5x	Off	Off	On	Off
133MHz	66MHz	1.5x	On	Off	Off	Off
150MHz	60MHz	1.75x	On	On	On	Off
166MHz	66MHz	1.75x	On	On	Off	Off

CPU SPEED SELECTION (AM K6)
CPU speed	Clock speed	Multiplier	SW1/1	SW1/2	SW1/3	SW1/4
166MHz	66MHz	2.5x	On	On	Off	Off
200MHz	66MHz	3x	Off	On	Off	Off
233MHz	66MHz	3.5x	Off	Off	Off	Off

CPU SPEED SELECTION (INTEL)
CPU speed	Clock speed	Multiplier	SW1/1	SW1/2	SW1/3	SW1/4
90MHz	60MHz	1.5x	Off	Off	On	Off
100MHz	66MHz	1.5x	Off	Off	Off	Off
120MHz	60MHz	2x	On	Off	On	Off
133MHz	66MHz	2x	On	Off	Off	Off
150MHz	60MHz	2.5x	On	On	On	Off
166MHz	66MHz	2.5x	On	On	Off	Off
200MHz	66MHz	3x	Off	On	Off	Off
233MHz	66MHz	3.5x	Off	Off	Off	Off

CPU VOLTAGE SELECTION
Voltage	SW2/1	SW2/2	SW2/3	SW2/4
2.5v	On	Off	Off	Off
2.8v	Off	On	Off	Off
2.9v	Off	Off	On	Off
3.2v	Off	Off	Off	On
3.3v	Any setting	Any setting	Any setting	Any setting
3.5v	Any setting	Any setting	Any setting	Any setting

POWER SUPPLY SELECTION
Setting		JP1	JP6
»	AT	Pins 2 & 3 closed	Closed
	ATX	Pins 1 & 2 closed	Open
