Processor	80386DX
Processor Speed	25/33MHz
Chip Set	Unidentified
Video Chip Set	None
Maximum Onboard Memory	32MB
Maximum Video Memory	None
Cache	128KB
BIOS	Unidentified
Dimensions	330mm x 218mm
I/O Options	None
NPU Options	80387DX/3167

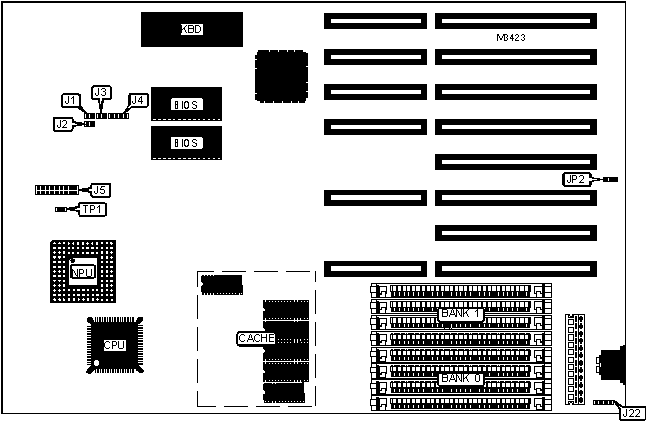

CONNECTIONS
Purpose	Location	Purpose	Location
Reset switch	J1	Speaker	J4
Turbo switch	J2	Front panel connector	J5
Turbo LED	J3	External battery	J22

USER CONFIGURABLE SETTINGS
Function		Label	Position
	EPROM size select - do not alter	JP2	Unidentified
	Engineering test point - do not alter	TP1	Unidentified

DRAM CONFIGURATION
Size	Bank 0	Bank 1
1MB	(4) 256K x 9	None
2MB	(4) 256K x 9	(4) 256K x 9
4MB	(4) 1M x 9	None
5MB	(4) 256K x 9	(4) 1M x 9
5MB	(4) 1M x 9	(4) 256K x 9
8MB	(4) 1M x 9	(4) 1M x 9
16MB	(4) 4M x 9	None
17MB	(4) 256K x 9	(4) 4M x 9
17MB	(4) 4M x 9	(4) 256K x 9
20MB	(4) 1M x 9	(4) 4M x 9
20MB	(4) 4M x 9	(4) 1M x 9
32MB	(4) 4M x 9	(4) 4M x 9

CACHE CONFIGURATION

Note: 128KB cache is factory installed and is not configurable.
