FIRST INTERNATIONAL COMPUTER, INC.
PM-900
|
Processor |
Pentium |
|
Processor Speed |
60/66MHz |
|
Chip Set |
Intel |
|
Max. Onboard DRAM |
192MB |
|
Cache |
256KB |
|
BIOS |
Award |
|
Dimensions |
330mm x 218mm |
|
I/O Options |
32-bit PCI local bus slots (3) |
|
NPU Options |
None |
|

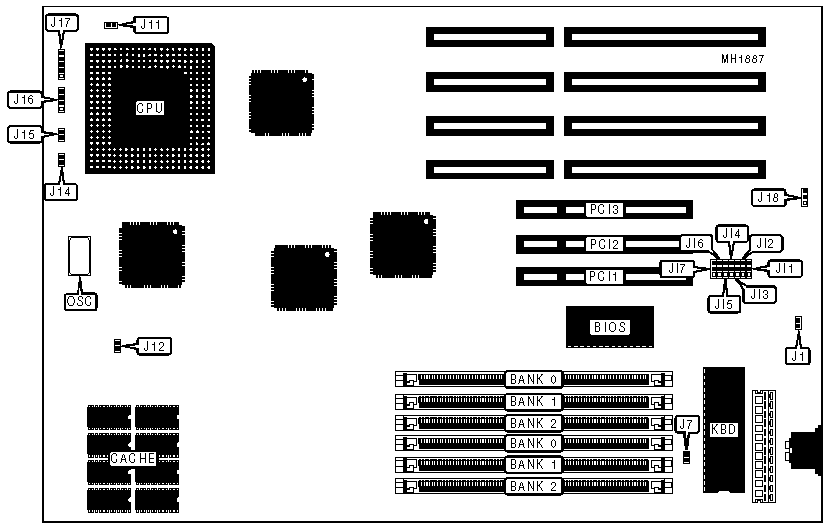

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Turbo LED |
J14 |
32-bit PCI Local bus slot |
PCI1 |
|
Reset switch |
J15 |
32-bit PCI Local bus slot |
PCI2 |
|
Speaker |
J16 |
32-bit PCI Local bus slot |
PCI3 |
|
Power LED & keylock |
J17 | ||
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Jumper |
Position | |
|
» |
RTC reset (DS12887A only) disabled |
J1 |
Open |
|
RTC reset (DS12887A only) enabled |
J1 |
Closed | |
|
» |
CMOS memory normal operation |
J7 |
Open |
|
CMOS memory clear |
J7 |
Closed | |
|
» |
Internal write-back cache |
J11 |
Open |
|
Internal write-through cache |
J11 |
Closed | |
|
» |
CPU internal parity check disabled |
J12 |
Open |
|
CPU internal parity check enabled |
J12 |
Closed | |
|
» |
Factory configured - do not alter |
J18 |
N/A |
|
DRAM CONFIGURATION | |||
|
Size |
Bank 0 |
Bank 1 |
Bank 3 |
|
2MB |
(2) 1M x 36 |
NONE |
NONE |
|
4MB |
(2) 1M x 36 |
(2) 1M x 36 |
NONE |
|
6MB |
(2) 1M x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
|
8MB |
(2) 4M x 36 |
NONE |
NONE |
|
10MB |
(2) 4M x 36 |
(2) 1M x 36 |
NONE |
|
12MB |
(2) 4M x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
|
16MB |
(2) 4M x 36 |
(2) 4M x 36 |
NONE |
|
18MB |
(2) 4M x 36 |
(2) 4M x 36 |
(2) 1M x 36 |
|
24MB |
(2) 4M x 36 |
(2) 4M x 36 |
(2) 4M x 36 |
|
32MB |
(2) 16M x 36 |
NONE |
NONE |
|
34MB |
(2) 16M x 36 |
(2) 1M x 36 |
NONE |
|
36MB |
(2) 16M x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
|
40MB |
(2) 16M x 36 |
(2) 4M x 36 |
NONE |
|
42MB |
(2) 16M x 36 |
(2) 4M x 36 |
(2) 1M x 36 |
|
48MB |
(2) 16M x 36 |
(2) 4M x 36 |
(2) 4M x 36 |
|
64MB |
(2) 16M x 36 |
(2) 16M x 36 |
NONE |
|
64MB |
(2) 32M x 36 |
NONE |
NONE |
|
66MB |
(2) 16M x 36 |
(2) 16M x 36 |
(2) 1M x 36 |
|
66MB |
(2) 32M x 36 |
(2) 1M x 36 |
NONE |
|
68MB |
(2) 32M x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
|
72MB |
(2) 16M x 36 |
(2) 16M x 36 |
(2) 4M x 36 |
|
72MB |
(2) 32M x 36 |
(2) 4M x 36 |
NONE |
|
74MB |
(2) 32M x 36 |
(2) 4M x 36 |
(2) 1M x 36 |
|
80MB |
(2) 32M x 36 |
(2) 4M x 36 |
(2) 4M x 36 |
|
96MB |
(2) 16M x 36 |
(2) 16M x 36 |
(2) 16M x 36 |
|
96MB |
(2) 32M x 36 |
(2) 16M x 36 |
NONE |
|
98MB |
(2) 32M x 36 |
(2) 16M x 36 |
(2) 1M x 36 |
|
104MB |
(2) 32M x 36 |
(2) 16M x 36 |
(2) 4M x 36 |
|
DRAM CONFIGURATION (CONT.) | |||
|
Size |
Bank 0 |
Bank 1 |
Bank 3 |
|
128MB |
(2) 32M x 36 |
(2) 16M x 36 |
(2) 16M x 36 |
|
128MB |
(2) 32M x 36 |
(2) 32M x 36 |
NONE |
|
130MB |
(2) 32M x 36 |
(2) 32M x 36 |
(2) 1M x 36 |
|
136MB |
(2) 32M x 36 |
(2) 32M x 36 |
(2) 4M x 36 |
|
160MB |
(2) 32M x 36 |
(2) 32M x 36 |
(2) 16M x 36 |
|
192MB |
(2) 32M x 36 |
(2) 32M x 36 |
(2) 32M x 36 |
|
PCI1 IRQ CONFIGURATION | |||
|
Jumper |
IRQ |
Setting | |
|
JI1 |
9 |
pins 1 & 2 closed | |
|
JI2 |
5 |
pins 1 & 2 closed | |
|
JI3 |
10 |
pins 1 & 2 closed | |
|
JI4 |
11 |
pins 1 & 2 closed | |
|
JI5 |
12 |
pins 1 & 2 closed | |
|
JI6 |
14 |
pins 1 & 2 closed | |
|
JI7 |
15 |
pins 1 & 2 closed | |
|
PCI2 & PCI3 IRQ CONFIGURATION | |||
|
Jumper |
IRQ |
Setting | |
|
JI1 |
9 |
pins 2 & 3 closed | |
|
JI2 |
5 |
pins 2 & 3 closed | |
|
JI3 |
10 |
pins 2 & 3 closed | |
|
JI4 |
11 |
pins 2 & 3 closed | |
|
JI5 |
12 |
pins 2 & 3 closed | |
|
JI6 |
14 |
pins 2 & 3 closed | |
|
JI7 |
15 |
pins 2 & 3 closed | |
|
TECHNICAL NOTE |
|
You may not use PCI1 when using PCI2 and PCI3. |
|
TECHNICAL NOTE |
|
To change between 60MHz and 66MHz, replace the Oscillator in OSC. |
