EVEREX SYSTEMS, INC.
1800R 286/8 (EV-1800)
|
Processor |
80286 |
|
Processor Speed |
8/10/12/16/20MHz |
|
Chip Set |
Suntac |
|
Max. Onboard DRAM |
1MB |
|
Cache |
None |
|
BIOS |
AMI |
|
Dimensions |
330mm x 218mm |
|
I/O Options |
None |
|
NPU Options |
80287 |
|

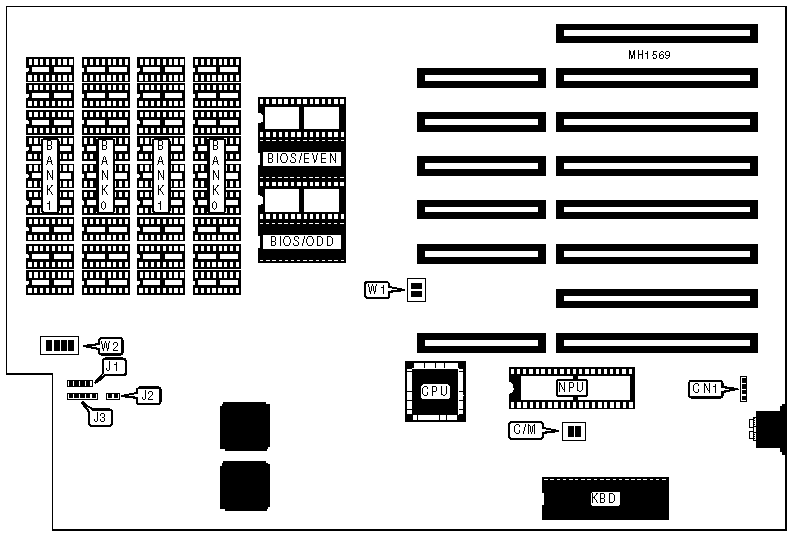

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
External battery |
CN1 |
Speaker |
J2 |
|
Reset switch |
J1 |
Power LED & keylock |
J3 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Switch |
Position | |
|
» |
Monitor type select color |
C/M |
On |
|
Monitor type select monochrome |
C/M |
Off | |
|
DRAM CONFIGURATION | ||||
|
Size |
Bank 0 |
Bank 1 |
W1/switch 1 |
W1/switch 2 |
|
256KB |
(18) 4464 |
(18) 4464 |
On |
On |
|
512KB |
(18) 41256 |
NONE |
On |
Off |
|
640KB |
(18) 41256 |
(18) 4464 |
Off |
On |
|
1MB |
(18) 41256 |
(18) 41256 |
Off |
Off |
|
BIOS TYPE CONFIGURATION | ||||
|
BIOS type |
W2/switch 1 |
W2/switch 2 |
W2/switch 3 |
W2/switch 4 |
|
27128 |
On |
On |
Off |
Off |
|
27256 |
Off |
Off |
On |
On |
