Processor	80386DX
Processor Speed	33MHz
Chip Set	C & T/Suntac
Max. onboard DRAM	32MB
Cache	32/64/128/256KB
BIOS	AMI
Dimensions	330mm x 218mm
I/O Options	None
NPU Options	3167

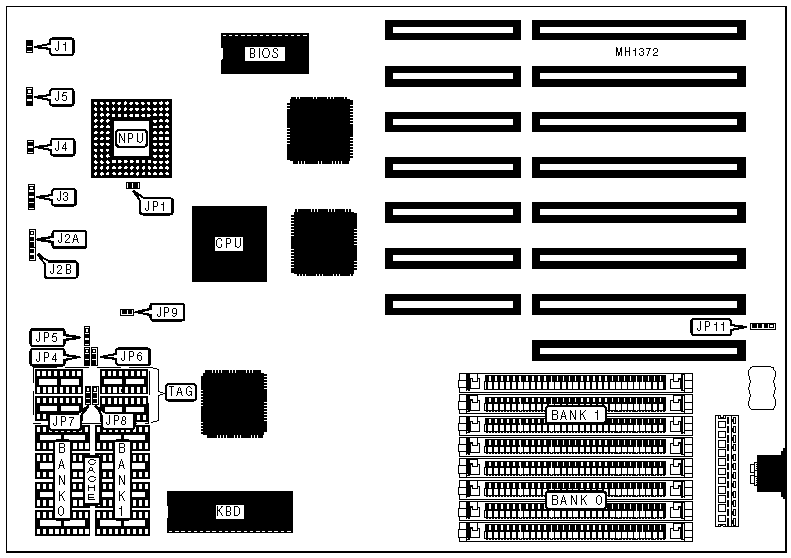

CONNECTIONS
Purpose	Location	Purpose	Location
Turbo LED	J1	Reset switch	J4
Keylock	J2A	Turbo switch	J5
Power LED	J2B	External battery	JP11
Speaker	J3

USER CONFIGURABLE SETTINGS
Function		Jumper	Position
»	Factory configured - do not alter	JP1	Unknown

DRAM CONFIGURATION
Size	Bank 0	Bank 1
1MB	(4) 256K x 9	NONE
2MB	(4) 256K x 9	(4) 256K x 9
4MB	(4) 1M x 9	NONE
5MB	(4) 1M x 9	(4) 256K x 9
8MB	(4) 1M x 9	(4) 1M x 9
16MB	(4) 4M x 9	NONE
17MB	(4) 4M x 9	(4) 256K x 9
20MB	(4) 4M x 9	(4) 1M x 9
32MB	(4) 4M x 9	(4) 4M x 9

CACHE CONFIGURATION
Size	Bank 0	Bank 1	TAG
32KB	(4) 8K x 8	NONE	(4) 4K x 4
64KB	(4) 8K x 8	(4) 8K x 8	(4) 4K x 4
128KB	(4) 32K x 8	NONE	(4) 16K x 4
256KB	(4) 32K x 8	(4) 32K x 8	(4) 16K x 4

CACHE JUMPER CONFIGURATION
Size	JP4	JP5	JP6	JP7	JP8	JP9
32KB	pins 1 & 2	pins 1 & 2	pins 1 & 2	pins 2 & 3	pins 2 & 3	Open
64KB	pins 2 & 3	pins 1 & 2	pins 1 & 2	pins 1 & 2	pins 2 & 3	Open
128KB	pins 2 & 3	pins 2 & 3	pins 1 & 2	pins 1 & 2	pins 2 & 3	Closed
256KB	pins 2 & 3	pins 2 & 3	pins 2 & 3	pins 1 & 2	pins 1 & 2	Closed
