Processor	80386SX
Processor Speed	16/20MHz
Chip Set	C & T/Suntac
Max. onboard DRAM	8MB
SRAM Cache	None
BIOS	AMI
Dimensions	330mm x 218mm
I/O Options	Floppy drive interface, IDE interface, parallel port, riser card, serial port (2), VGA port
NPU Options	80387SX

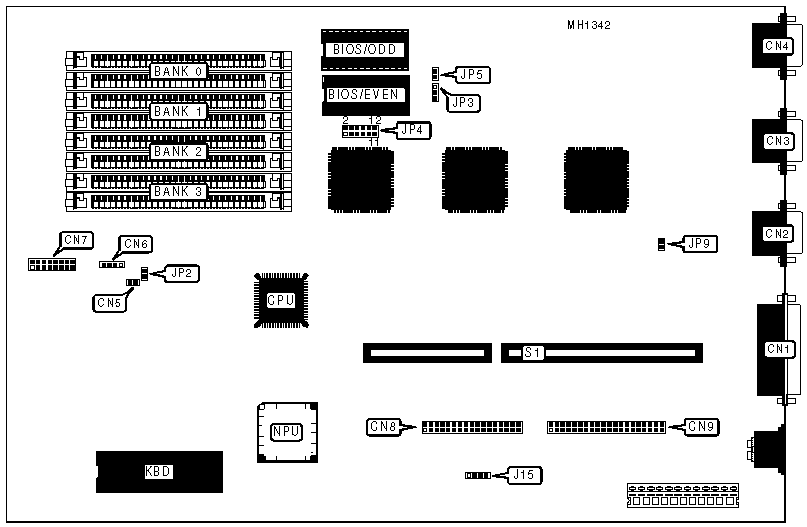

CONNECTIONS
Purpose	Location	Purpose	Location
External battery	J15	Speaker	CN6
Parallel port	CN1	Front panel connector	CN7
Serial port (COM1)	CN2	Floppy drive interface	CN8
Serial port (COM2)	CN3	IDE interface	CN9
VGA port	CN4	Riser card	S1
IDE interface LED	CN5

USER CONFIGURABLE SETTINGS
Function		Jumper	Position
»	Factory configured - do not alter	JP2	Open
»	Factory configured - do not alter	JP3	pins 2 & 3 closed
»	Factory configured - do not alter	JP4	pins 3 & 4, 9 & 10 closed
»	Factory configured - do not alter	JP5	Closed
»	Onboard video enabled	JP9	Closed
	Onboard video disabled	JP9	Open

DRAM CONFIGURATION
Size	Bank 0	Bank 1	Bank 2	Bank 3
512KB	(2) 256K x 9	NONE	NONE	NONE
1MB	(2) 256K x 9	(2) 256K x 9	NONE	NONE
2MB	(2) 256K x 9	(2) 256K x 9	(2) 256K x 9	(2) 256K x 9
3MB	(2) 256K x 9	(2) 256K x 9	(2) 1M x 9	NONE
4MB	(2) 1M x 9	(2) 1M x 9	NONE	NONE
5MB	(2) 256K x 9	(2) 256K x 9	(2) 1M x 9	(2) 1M x 9
8MB	(2) 1M x 9	(2) 1M x 9	(2) 1M x 9	(2) 1M x 9
