HYUNDAI ELECTRONICS, INC.
SUPER 386S
|
Processor |
80386SX |
|
Processor Speed |
16MHz |
|
Chip Set |
VLSI |
|
Max. Onboard DRAM |
8MB |
|
Cache |
None |
|
BIOS |
Phoenix |
|
Dimensions |
350mm x 304mm |
|
I/O Options |
Floppy drive interface, IDE interface, parallel port, proprietary external memory card slot, serial port |
|
NPU Options |
80387SX |
|

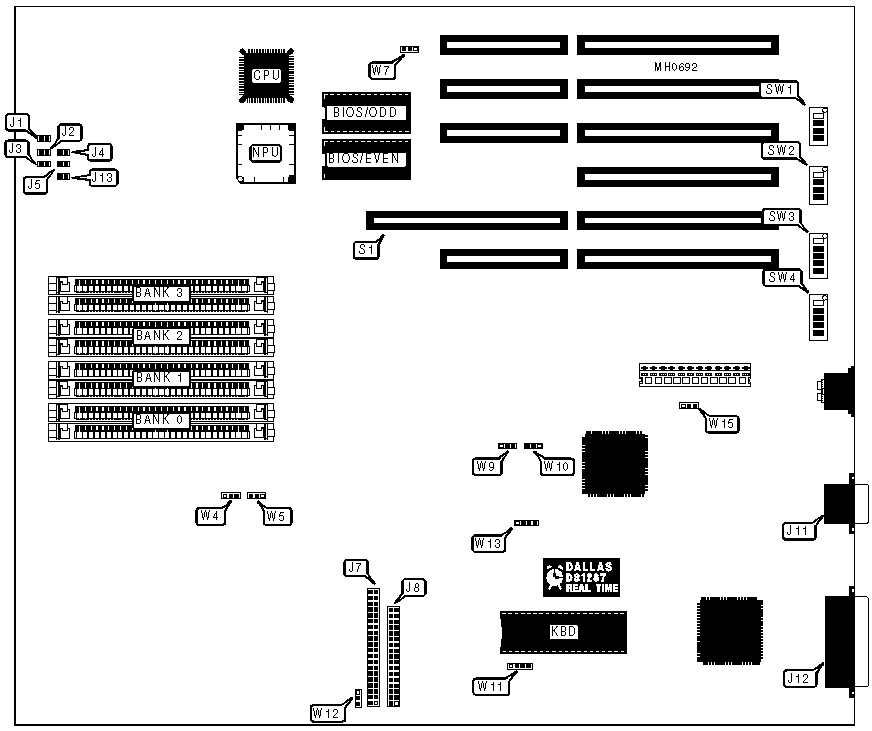

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Reset switch |
J1 |
IDE interface |
J7 |
|
Turbo LED (slow) |
J2 |
Floppy drive interface |
J8 |
|
Turbo LED (fast) |
J3 |
Serial port |
J11 |
|
Speaker |
J4 |
Parallel port |
J12 |
|
IDE interface LED |
J5 |
Proprietary external memory card |
S1 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Jumper/Switch |
Position | |
| » |
NPU disabled |
J13 |
Closed |
|
NPU enabled |
J13 |
Open | |
| » |
Page-mode enabled |
W1, W2, W3, & W6 |
pins 1 & 2 closed |
|
Page-mode disabled |
W1, W2, W3, & W6 |
pins 2 & 3 closed | |
| » |
DRAM (8-bit) speed select 4 wait states |
W4 |
pins 1 & 2 closed |
|
DRAM (8-bit) speed select 5 wait states |
W4 |
pins 2 & 3 closed | |
| » |
DRAM (16-bit) speed select 1 wait states |
W5 |
pins 1 & 2 closed |
|
DRAM (16-bit) speed select 2 wait states |
W5 |
pins 2 & 3 closed | |
| » |
Page-mode page size select 1K |
W7 |
pins 1 & 2 closed |
|
Page-mode page size select 2K |
W7 |
pins 2 & 3 closed | |
| » |
Floppy drive type select dual speed |
W11 pins 1 & 2 |
Open |
|
Floppy drive type select single speed |
W11 pins 1 & 2 |
Closed | |
| » |
Floppy drive precompensation time 187ns |
W11 pins 3 & 4 |
Open |
|
Floppy drive precompensation time 125ns |
W11 pins 3 & 4 |
Closed | |
| » |
Monitor type select color |
W12 |
pins 1 & 2 closed |
|
Monitor type select monochrome |
W12 |
pins 2 & 3 closed | |
| » |
IDE interface enabled |
W13 pins 1 & 2 |
Open |
|
IDE interface disabled |
W13 pins 1 & 2 |
Closed | |
| » |
Floppy drive interface enabled |
W13 pins 3 & 4 |
Open |
|
Floppy drive interface enabled |
W13 pins 3 & 4 |
Closed | |
| » |
IDE drive type select Conner CP344/3024 |
W15 |
pins 1 & 2 closed |
|
IDE drive type select Conner CP342/3022 |
W15 |
pins 2 & 3 closed | |
| » |
Serial port enabled |
SW2/1 |
On |
|
Serial port disabled |
SW2/1 |
Off | |
| » |
Parallel port enabled |
SW2/3 |
On |
|
Parallel port disabled |
SW2/3 |
Off | |
|
Note:The locations of jumpers W1, W2, W3, & W6 are unidentified. | |||
|
DRAM CONFIGURATION | ||||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
|
1MB |
(2) 256K x 9 |
(2) 256K x 9 |
NONE |
NONE |
|
2MB |
(2) 256K x 9 |
(2) 256K x 9 |
(2) 256K x 9 |
(2) 256K x 9 |
|
2MB |
(2) 1M x 9 |
NONE |
NONE |
NONE |
|
3MB |
(2) 256K x 9 |
(2) 256K x 9 |
(2) 1M x 9 |
NONE |
|
4MB |
(2) 1M x 9 |
(2) 1M x 9 |
NONE |
NONE |
|
5MB |
(2) 256K x 9 |
(2) 256K x 9 |
(2) 1M x 9 |
(2) 1M x 9 |
|
6MB |
(2) 1M x 9 |
(2) 1M x 9 |
(2) 1M x 9 |
NONE |
|
8MB |
(2) 1M x 9 |
(2) 1M x 9 |
(2) 1M x 9 |
(2) 1M x 9 |
|
DRAM SWITCH CONFIGURATION | ||||||
|
Size |
SW3/1 |
SW3/2 |
SW3/3 |
SW3/4 |
SW3/5 |
SW4/1 |
|
1MB |
Off |
On |
On |
On |
On |
On |
|
2MB |
Off |
Off |
Off |
On |
On |
Off |
|
2MB |
Off |
Off |
On |
Off |
Off |
Off |
|
3MB |
Off |
Off |
On |
Off |
On |
Off |
|
4MB |
Off |
On |
On |
Off |
Off |
Off |
|
5MB |
Off |
Off |
Off |
Off |
Off |
Off |
|
6MB |
Off |
Off |
On |
Off |
Off |
Off |
|
8MB |
Off |
Off |
Off |
Off |
Off |
Off |
|
DRAM JUMPER/SWITCH CONFIGURATION | ||||||
|
Size |
SW4/2 |
SW4/3 |
SW4/4 |
SW4/5 |
W9 |
W10 |
|
1MB |
On |
On |
On |
On |
2 & 3 |
2 & 3 |
|
2MB |
On |
On |
On |
On |
2 & 3 |
2 & 3 |
|
2MB |
On |
On |
On |
On |
2 & 3 |
2 & 3 |
|
3MB |
Off |
Off |
On |
On |
2 & 3 |
2 & 3 |
|
4MB |
Off |
On |
On |
On |
1 & 2 |
1 & 2 |
|
5MB |
Off |
On |
On |
On |
1 & 2 |
1 & 2 |
|
6MB |
Off |
Off |
Off |
On |
1 & 2 |
1 & 2 |
|
8MB |
Off |
Off |
Off |
On |
1 & 2 |
1 & 2 |
|
Note:Pins designated should be in the closed position. | ||||||
|
PARALLEL PORT CONFIGURATION | |||
|
Setting |
SW1/1 |
SW1/2 |
SW2/2 |
|
COM1/IRQ 4 |
On |
Off |
Off |
|
COM2/IRQ3 |
Off |
On |
On |
|
SERIAL PORT CONFIGURATION | |||
|
Setting |
SW1/3 |
SW1/4 |
SW2/4 |
|
LPT1/IRQ 7 |
On |
Off |
Off |
|
LPT2/IRQ5 |
Off |
On |
On |
