Processor	80286
Processor speed	12MHz
Chip Set	Unidentified
Max. Onboard DRAM	1MB
BIOS	Unidentified
Cache	None
Dimensions	330mm x 218mm
I/O Options	16-bit external memory card slot, VGA port, VGA expansion slot, bus mouse
NPU Options	80287

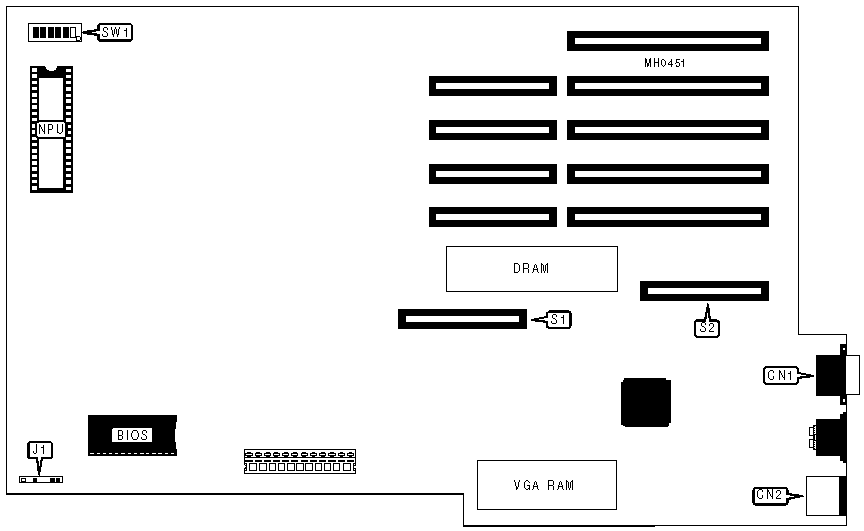

CONNECTIONS
Purpose	Location	Purpose	Location
Power LED & Keylock	J1	16-bit external memory card	S1
VGA port	CN1	VGA expansion card	S2
Bus mouse	CN2

USER CONFIGURABLE SETTINGS
Function		Switch	Position
»	Video interrupt IRQ9 enabled	SW1/1	Off
	Video interrupt IRQ9 disabled	SW1/1	On
»	On board VGA port enabled	SW1/2	Off
	On board VGA port disabled	SW1/2	On
»	Bus mouse enabled	SW1/3	Off
	Bus mouse disabled	SW1/3	On
»	Power-on password enabled	SW1/4	Off
	Power-on password disabled	SW1/4	On
»	Optional ROM (on memory board) enabled	SW1/5	Off
	Optional ROM (on memory board) disabled	SW1/5	On
»	Factory configured - do not alter	SW1/6	Off
