Processor	80386DX
Processor Speed	25MHz
Chip Set	OPTI
Max. Onboard DRAM	8MB
Cache	None
BIOS	AMI
Dimensions	330mm x 218mm
I/O Options	32-bit external memory card
INPU Options	80387/3167

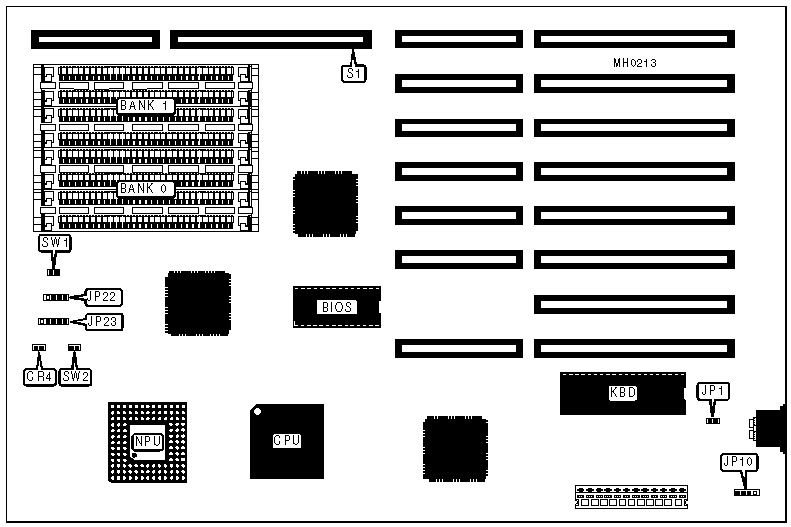

CONNECTIONS
Purpose	Location	Purpose	Location
Turbo LED	CR4	32-bit external memory card	S1
External battery	JP10	Reset switch	SW1
Speaker	JP22	Turbo switch	SW2
Power LED & Keylock	JP23

USER CONFIGURABLE SETTINGS
Function		Jumper	Position
»	Monitor type select color	JP1	Closed
	Monitor type select monochrome	JP1	Open
»	CMOS memory normal operation (internal battery)	JP10	pins 1 & 2 closed
	CMOS memory clear	JP10	Open
	CMOS memory normal operation (external battery)	JP10	Closed

DRAM CONFIGURATION
Size	Bank 0	Bank 1
1MB	(4) 256K x 9	NONE
2MB	(4) 256K x 9	(4) 256K x 9
4MB	(4) 1M x 9	NONE
8MB	(4) 1M x 9	(4) 1M x 9
