Processor	80386DX
Processor Speed	25/33MHz
Chip Set	C & T
Max. Onboard DRAM	4MB
Cache	None
BIOS	Award
Dimensions	355mm x 304mm
I/O Options	32-bit external memory card slot
NPU Options	80387/3167

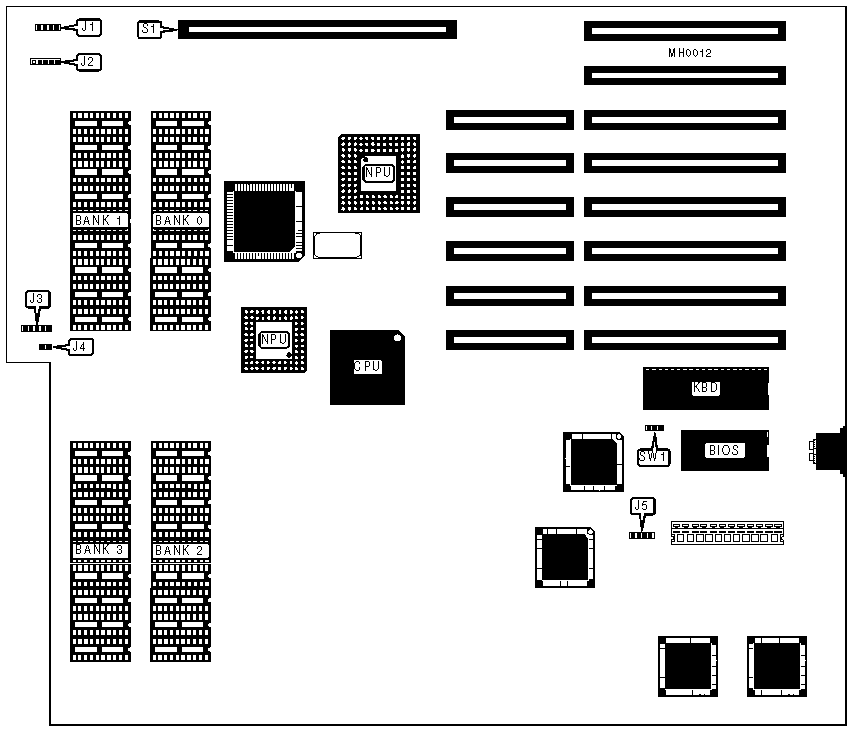

CONNECTIONS
Purpose	Location	Purpose	Location
Speaker	J1	Reset switch	J4
Turbo LED	J2 pins 4 & 5	External battery	J5
Turbo switch	J2 pins 1 & 2	32-bit external memory card	S1
Power LED & keylock	J3

USER CONFIGURABLE SETTINGS
Function		Jumper	Position
»	Monitor type select color	SW1	pins 2 & 3 closed
	Monitor type select monochrome	SW1	Open

DRAM CONFIGURATION
Size	Bank 0	Bank 1	Bank 2	Bank 3
1MB	(9) 44256	NONE	NONE	NONE
2MB	(9) 44256	(9) 44256	NONE	NONE
3MB	(9) 44256	(9) 44256	(9) 44256	NONE
4MB	(9) 44256	(9) 44256	(9) 44256	(9) 44256
