Processor	80386DX
Processor Speed	16MHz
Chip Set	C & T
Max. Onboard DRAM	1MB
Cache	None
BIOS	Award
Dimensions	330.2mm x 218.4mm
I/O Options	32-bit external memory card slot
NPU Options	80387

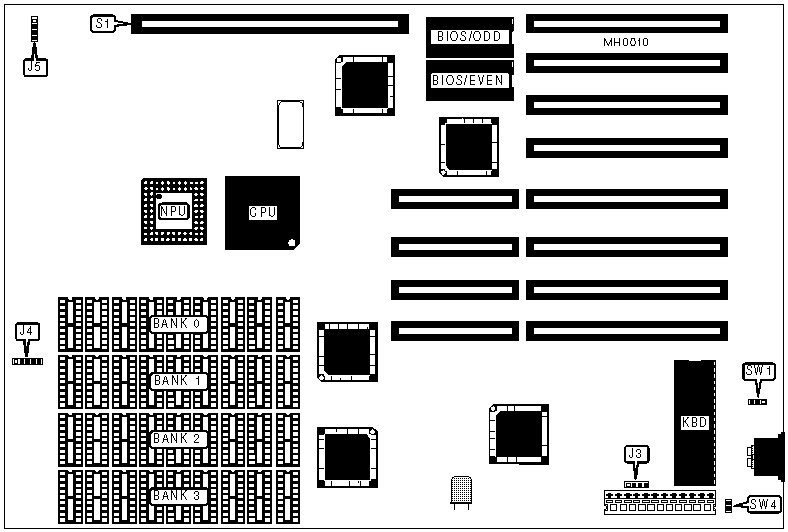

CONNECTIONS
Purpose	Location	Purpose	Location
External battery	J3	32-bit external memory card	S1
Power LED & keylock	J4	Reset switch	SW4
Speaker	J5

USER CONFIGURABLE SETTINGS
Function		Jumper	Position
»	Monitor type select color	SW1	pins 2 & 3 closed
	Monitor type select monochrome	SW1	open

DRAM CONFIGURATION
Size	Bank 0	Bank 1	Bank 2	Bank 3
256KB	(9) 4464	NONE	NONE	NONE
512KB	(9) 4464	(9) 4464	NONE	NONE
728KB	(9) 4464	(9) 4464	(9) 4464	NONE
1MB	(9) 4464	(9) 4464	(9) 4464	(9) 4464
