DIAMOND FLOWER, INC.
P2MEX/A (REV.A+)
|
Device Type |
Mainboard |
|
Processor |
Pentium II/Celeron |
|
Processor Speed |
233/266/300/333MHz |
|
Chip Set |
Intel 440EX |
|
Maximum Onboard Memory |
256MB (EDO & SDRAM supported) |
|
Cache |
0/128/256/512KB (located on the CPU) |
|
BIOS |
Award |
|
Dimensions |
305mm x 244mm |
|
I/O Options |
32-bit PCI slots (2), floppy drive interface, game interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, PS/2 keyboard interface, serial ports (2), IR connector, USB connectors (2), ATX power connector, AGP slot, line in, line out, microphone in |
|

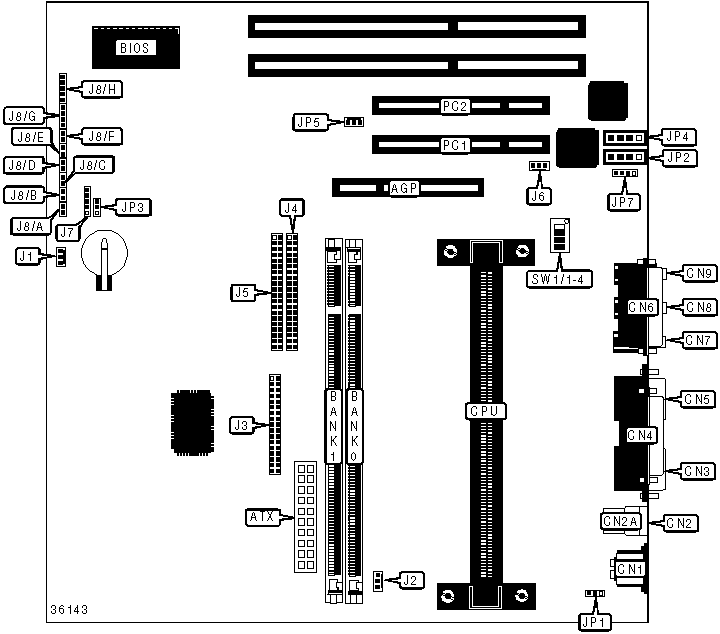

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
AGP slot |
AGP |
IDE interface 1 |
J5 |
|
ATX power |
ATX |
AGP fan power |
J6 |
|
PS/2 mouse port |
CN1 |
IR connector |
J7 |
|
USB connector 1 |
CN2 |
ATX/Standby LED |
J8/A |
|
USB connector 2 |
CN2A |
IDE interface LED |
J8/B |
|
Serial port 1 |
CN3 |
Green PC LED |
J8/C |
|
Parallel port |
CN4 |
ATX power switch |
J8/D |
|
Serial port 2 |
CN5 |
Green switch |
J8/E |
|
Game port |
CN6 |
Reset switch |
J8/F |
|
Speaker line out |
CN7 |
Speaker |
J8/G |
|
Line in |
CN8 |
Power LED & keylock |
J8/H |
|
Microphone in |
CN9 |
Audio in – CD-ROM |
JP2 |
|
Chassis fan power |
J1 |
Audio in – CD-ROM |
JP4 |
|
CPU fan power |
J2 |
WOL connector |
JP5 |
|
Floppy drive interface |
J3 |
Audio in – CD-ROM |
JP7 |
|
IDE interface 2 |
J4 |
32-bit PCI slots |
PC1 - PC2 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
|
» |
Wake-on-keyboard enabled |
JP1 |
Pins 2 & 3 closed |
|
Wake-on-keyboard disabled |
JP1 |
Pins 1 & 2 closed | |
|
» |
CMOS memory normal operation |
JP3 |
Pins 1 & 2 closed |
|
CMOS memory clear |
JP3 |
Pins 2 & 3 closed | |
|
» |
Factory configured - do not alter |
SW1/1 |
On |
|
DIMM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
8MB |
(1) 1M x 64 |
None |
|
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
|
16MB |
(1) 2M x 64 |
None |
|
24MB |
(1) 2M x 64 |
(1) 1M x 64 |
|
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
|
32MB |
(1) 4M x 64 |
None |
|
40MB |
(1) 4M x 64 |
(1) 1M x 64 |
|
48MB |
(1) 4M x 64 |
(1) 2M x 64 |
|
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
|
64MB |
(1) 8M x 64 |
None |
|
72MB |
(1) 8M x 64 |
(1) 1M x 64 |
|
80MB |
(1) 8M x 64 |
(1) 2M x 64 |
|
96MB |
(1) 8M x 64 |
(1) 4M x 64 |
|
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
|
128MB |
(1) 16M x 64 |
None |
|
136MB |
(1) 16M x 64 |
(1) 1M x 64 |
|
144MB |
(1) 16M x 64 |
(1) 2M x 64 |
|
160MB |
(1) 16M x 64 |
(1) 4M x 64 |
|
192MB |
(1) 16M x 64 |
(1) 8M x 64 |
|
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
|
CACHE CONFIGURATION |
|
Note: 256/512KB cache is located on the Pentium II CPU. 128KB cache is located on the Celeron 300A & 333 CPU. |
|
CPU SPEED SELECTION | |||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/2 |
SW1/3 |
SW1/4 |
|
233MHz |
66MHz |
3.5x |
On |
Off |
Off |
|
266MHz |
66MHz |
4x |
Off |
On |
On |
|
300MHz |
66MHz |
4.5x |
Off |
On |
Off |
|
333MHz |
66MHz |
5x |
Off |
Off |
On |
