DIGITAL EQUIPMENT CORPORATION
DIGITAL SERVER 3300/3300R
|
Device Type |
Mainboard |
|
Processor |
Alpha |
|
Processor Speed |
400/500MHz |
|
Chip Set |
Alcor |
|
Video Chip Set |
Unidentified |
|
Video Types Supported |
Unidentified |
|
Highest Resolution Supported |
Unidentified |
|
Maximum Onboard Memory |
2GB |
|
Maximum Video Memory |
Unidentified |
|
Cache |
Unidentified |
|
BIOS |
Unidentified |
|
Dimensions |
355mm x 304mm |
|
I/O Options |
32-bit PCI slots (3), 64-bit PCI slot, floppy drive interface, SCSI interface, Wide SCSI interface, parallel port, PS/2 mouse port, serial ports (2), VGA port, CPU slot |
|

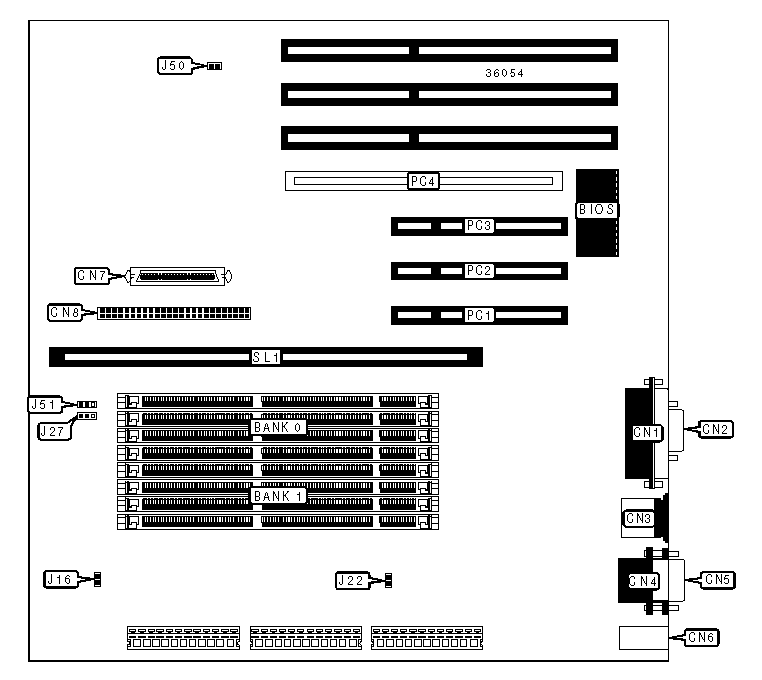

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Parallel port |
CN1 |
Wide SCSI interface |
CN7 |
|
VGA port |
CN2 |
SCSI interface |
CN8 |
|
PS/2 mouse port |
CN3 |
32-bit PCI slots |
PC1 - PC3 |
|
Serial port |
CN4 |
64-bit PCI slot |
PC4 |
|
Serial port |
CN5 |
CPU slot |
SL1 |
|
Serial port (MMJ) |
CN6 | ||
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
|
» |
Factory configured - do not alter |
J16 |
Open |
|
» |
Remote management console disabled |
J22 |
Open |
|
Remote management console enabled |
J22 |
Closed | |
|
» |
On board video enabled |
J27 |
Pins 1 & 2 closed |
|
On board video disabled |
J27 |
Pins 2 & 3 closed | |
|
» |
Flash BIOS VPP enabled |
J50 |
Closed |
|
Flash BIOS VPP disabled |
J50 |
Open | |
|
» |
SCSI termination enabled |
J51 |
Pins 1 & 2 closed |
|
SCSI termination disabled |
J51 |
Pins 2 & 3 closed | |
|
DIMM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
32MB |
(4) 1M x 64 |
None |
|
64MB |
(4) 2M x 64 |
None |
|
64MB |
(4) 1M x 64 |
(4) 1M x 64 |
|
96MB |
(4) 2M x 64 |
(4) 1M x 64 |
|
128MB |
(4) 4M x 64 |
None |
|
128MB |
(4) 2M x 64 |
(4) 2M x 64 |
|
160MB |
(4) 4M x 64 |
(4) 1M x 64 |
|
192MB |
(4) 4M x 64 |
(4) 2M x 64 |
|
256MB |
(4) 8M x 64 |
None |
|
256MB |
(4) 4M x 64 |
(4) 4M x 64 |
|
288MB |
(4) 8M x 64 |
(4) 1M x 64 |
|
320MB |
(4) 8M x 64 |
(4) 2M x 64 |
|
384MB |
(4) 8M x 64 |
(4) 4M x 64 |
|
512MB |
(4) 16M x 64 |
None |
|
512MB |
(4) 8M x 64 |
(4) 8M x 64 |
|
544MB |
(4) 16M x 64 |
(4) 1M x 64 |
|
576MB |
(4) 16M x 64 |
(4) 2M x 64 |
|
768MB |
(4) 16M x 64 |
(4) 8M x 64 |
|
1024MB |
(4) 32M x 64 |
None |
|
1024MB |
(4) 16M x 64 |
(4) 16M x 64 |
|
2048MB |
(4) 32M x 64 |
(4) 32M x 64 |
|
CACHE CONFIGURATION |
|
Note: The location of the cache is unidentified. |
|
VIDEO MEMORY CONFIGURATION |
|
Note: The location of the video memory is unidentified. |
|

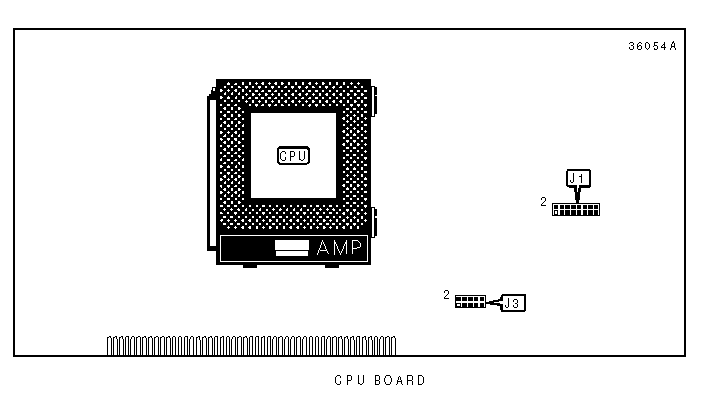

USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
|
» |
Factory configured - do not alter |
J1 |
Unidentified |
|
CPU SPEED SELECTION | |||
|
CPU speed |
Clock speed |
Multiplier |
J3 |
|
400MHz |
100MHz |
4x |
Pins 1 & 2, 3 & 4 closed |
|
500MHz |
100MHz |
5x |
Open |
