Processor

Pentium Pro

Processor Speed

180/200MHz

Chip Set

Unidentified

Video Chip Set

Cirrus Logic

Maximum Onboard Memory

256MB

Maximum Video Memory

2MB

Cache

256/512KB

BIOS

Unidentified

Dimensions

330mm x 218mm

I/O Options

Unidentified

NPU Options

None

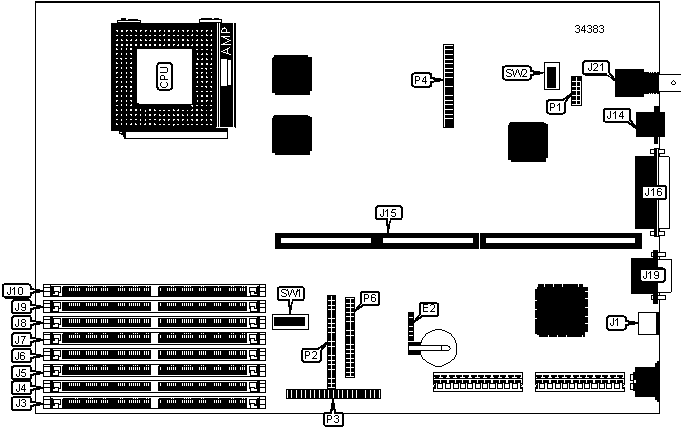

CONNECTIONS

Purpose

Location

Purpose

Location

IDE interface 1

P2

RJ-45 Ethernet port

J14

IDE interface 2

P3

Riser slot

J15

Floppy drive interface

P6

Parallel port

J16

100 Mbit/s upgrade module

P1, P4

Serial port 2

J19

Replacement battery

E2

Serial port 1

J19

PS/2 mouse port

J1

BNC Ethernet port

J21

USER CONFIGURABLE SETTINGS

Function

Label

Position

»

Factory configured - do not alter

J11

Unidentified

»

Power on password enabled

SW1/1

Off

Power on password disabled

SW1/1

On

DRAM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

Bank 3

16MB

(2) 2M x 36

None

None

None

32MB

(2) 2M x 36

(2) 2M x 36

None

None

32MB

(2) 4M x 36

None

None

None

48MB

(2) 2M x 36

(2) 2M x 36

(2) 2M x 36

None

64MB

(2) 2M x 36

(2) 2M x 36

(2) 2M x 36

(2) 2M x 36

64MB

(2) 4M x 36

(2) 4M x 36

None

None

64MB

(2) 8M x 36

None

None

None

96MB

(2) 4M x 36

(2) 4M x 36

(2) 4M x 36

None

128MB

(2) 4M x 36

(2) 4M x 36

(2) 4M x 36

(2) 4M x 36

128MB

(2) 8M x 36

(2) 8M x 36

None

None

192MB

(2) 8M x 36

(2) 8M x 36

(2) 8M x 36

None

256MB

(2) 8M x 36

(2) 8M x 36

(2) 8M x 36

(2) 8M x 36

256MB

(2) 16M x 36

(2) 16M x 36

None

None

CACHE CONFIGURATION

Note: The location of the cache is unidentified.

VIDEO MEMORY CONFIGURATION

Note: The location of the video memory is unidentified.

CPU SPEED SELECTION

CPU speed

Clock speed

Multiplier

SW1/2

SW1/3

SW1/4

SW1/5

SW1/6

180MHz

66MHz

3x

Off

On

On

Off

On

200MHz

66MHz

3x

On

On

On

Off

On

NETWORK SELECTION

Setting

SW2/1

SW2/2

SW2/3

SW2/4

»

10MB

On

On

On

On

100MB

Off

Off

Off

Off
