Processor

CX M1/AM K5/Pentium

Processor Speed

75/90/100/120/133/150/166/200MHz

Chip Set

Intel

Video Chip Set

None

Maximum Onboard Memory

128MB (EDO supported)

Maximum Video Memory

None

Cache

256/512KB

BIOS

Award

Dimensions

250mm x 220mm

I/O Options

32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse interface, serial ports (2), cache slot, IR connector, USB connectors (2)

NPU Options

None

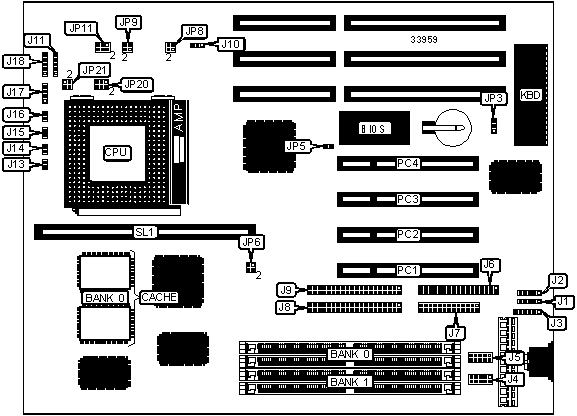

CONNECTIONS

Purpose

Location

Purpose

Location

USB connector 1

J1

IR connector

J11

USB connector 2

J2

IDE interface LED

J13

PS/2 mouse interface

J3

Green PC LED

J14

Serial port 1

J4

Green PC connector

J15

Serial port 2

J5

Reset switch

J16

Floppy drive interface

J6

Speaker

J17

Parallel port

J7

Power LED & keylock

J18

IDE interface 1

J8

32-bit PCI slots

PC1 - PC4

IDE interface 2

J9

Cache slot

SL1

Chassis fan power

J10

USER CONFIGURABLE SETTINGS

Function

Label

Position

»

Monitor type select color

JP3

Pins 1 & 2 closed

Monitor type select monochrome

JP3

Pins 2 & 3 closed

»

CMOS memory normal operation

JP5

Open

CMOS memory clear

JP5

Closed

DRAM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

8MB

(2) 1M x 36

None

None

16MB

(2) 2M x 36

None

None

16MB

(2) 1M x 36

(2) 1M x 36

None

24MB

(2) 2M x 36

(2) 1M x 36

None

32MB

(2) 4M x 36

None

None

32MB

(2) 2M x 36

(2) 2M x 36

None

40MB

(2) 4M x 36

(2) 1M x 36

None

48MB

(2) 4M x 36

(2) 2M x 36

None

64MB

(2) 8M x 36

None

None

64MB

(2) 4M x 36

(2) 4M x 36

None

72MB

(2) 8M x 36

(2) 1M x 36

None

80MB

(2) 8M x 36

(2) 2M x 36

None

96MB

(2) 8M x 36

(2) 4M x 36

None

128MB

(2) 8M x 36

(2) 8M x 36

None

Note: Board accepts EDO memory. Board also accepts x 32 SIMMs. Banks are interchangeable.

CACHE CONFIGURATION

Size

Bank 0

SL1

256KB

(2) 32K x 32

None

512KB

(2) 32K x 32

256KB module installed

512KB

(2) 64K x 32

Not installed

CPU SPEED SELECTION (CYRIX)

CPU speed

Clock speed

Multiplier

JP6

JP8

120MHz

50MHz

2x

1 & 2, 3 & 4

1 & 2

133MHz

55MHz

2x

Open

1 & 2

150MHz

60MHz

2x

1 & 2

1 & 2

166MHz

66MHz

2x

3 & 4

1 & 2

Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (AMD)

CPU speed

Clock speed

Multiplier

JP6

JP8

75MHz

50MHz

1.5x

1 & 2, 3 & 4

Open

90MHz

60MHz

1.5x

1 & 2

Open

100MHz

66MHz

1.5x

3 & 4

Open

Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (INTEL)

CPU speed

Clock speed

Multiplier

JP6

JP8

75MHz

50MHz

1.5x

1 & 2, 3 & 4

Open

90MHz

60MHz

1.5x

1 & 2

Open

100MHz

66MHz

1.5x

3 & 4

Open

120MHz

60MHz

2x

1 & 2

1 & 2

133MHz

66MHz

2x

3 & 4

1 & 2

150MHz

60MHz

2.5x

1 & 2

1 & 2, 3 & 4

166MHz

66MHz

2.5x

3 & 4

1 & 2, 3 & 4

200MHz

66MHz

3x

3 & 4

3 & 4

Note: Pins designated should be in the closed position.

CPU VOLTAGE SELECTION

Voltage

JP9

JP11

JP20

JP21

2.5v

1 & 2

1 & 3, 2 & 4

5 & 6

Open

2.8v

1 & 2

1 & 3, 2 & 4

3 & 4

Open

2.9v

1 & 2

1 & 3, 2 & 4

1 & 2

Open

»

3.3v

1 & 2

3 & 5, 4 & 6

3 & 4

1 & 2, 3 & 4

3.5v

3 & 4

3 & 5, 4 & 6

3 & 4

1 & 2, 3 & 4

Note: Pins designated should be in the closed position.
