Processor	80486SX/80487SX/80486DX/80486DX2
Processor Speed	25/33/50(internal)/66(internal)MHz
Chip Set	LSI
Max. Onboard DRAM	64MB (on external card)
Cache	128KB
BIOS	Phoenix
Dimensions	330mm x 218mm
I/O Options	External cache card, floppy drive interface, IDE interface, parallel port, PS/2 mouse port, serial ports (2), VGA feature connector, VGA port
NPU Options	None

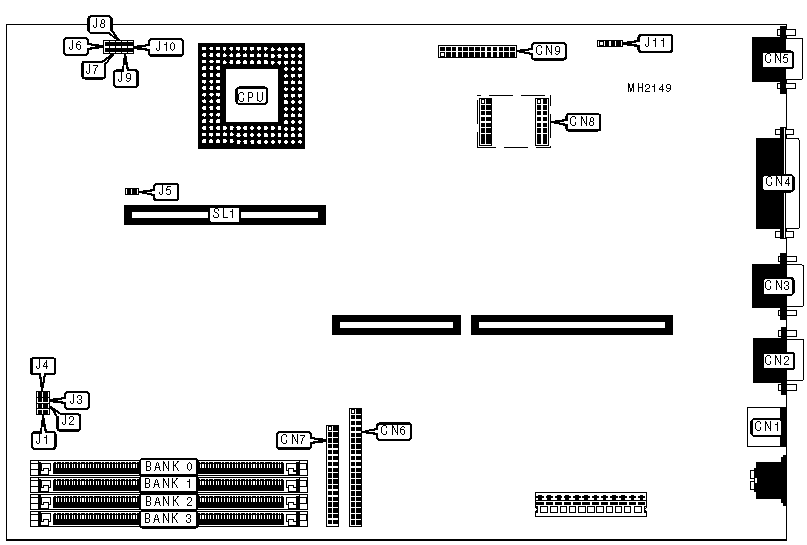

CONNECTIONS
Purpose	Location	Purpose	Location
PS/2 mouse port	CN1	Floppy drive interface	CN7
Serial port 1	CN2	Video memory upgrade connector	CN8
Serial port 2	CN3	VGA feature connector	CN9
Parallel port	CN4	IDE interface LED	J11
VGA port	CN5	External cache card	SL1
IDE interface	CN6

USER CONFIGURABLE SETTINGS
Function		Jumper	Position
»	Password enabled	J1	Closed
	Password disabled	J1	Open
»	Factory configured - do not alter	J2	Open
»	Flash BIOS write protect enabled	J3	Closed
	Flash BIOS write protect disabled	J3	Open
»	On board VGA enabled	J4	Closed
	On board VGA disabled	J4	Open
»	External cache card not installed	J5	Closed
	External cache card installed	J5	Open
»	Factory configured - do not alter	J6	Open
»	Factory configured - do not alter	J9	Open
»	Factory configured - do not alter	J10	Open

DRAM CONFIGURATION
Size	Bank 0	Bank 1	Bank 2	Bank 3
4MB	(1) 1M x 36	NONE	NONE	NONE
8MB	(1) 1M x 36	(1) 1M x 36	NONE	NONE
12MB	(1) 1M x 36	(1) 1M x 36	(1) 1M x 36	NONE
16MB	(1) 1M x 36	(1) 1M x 36	(1) 1M x 36	(1) 1M x 36
16MB	(1) 4M x 36	NONE	NONE	NONE
20MB	(1) 4M x 36	(1) 1M x 36	NONE	NONE
24MB	(1) 4M x 36	(1) 1M x 36	(1) 1M x 36	NONE
28MB	(1) 4M x 36	(1) 1M x 36	(1) 1M x 36	(1) 1M x 36
32MB	(1) 4M x 36	(1) 4M x 36	NONE	NONE
36MB	(1) 4M x 36	(1) 4M x 36	(1) 1M x 36	NONE
40MB	(1) 4M x 36	(1) 4M x 36	(1) 1M x 36	(1) 1M x 36
48MB	(1) 4M x 36	(1) 4M x 36	(1) 4M x 36	NONE
52MB	(1) 4M x 36	(1) 4M x 36	(1) 4M x 36	(1) 1M x 36
64MB	(1) 4M x 36	(1) 4M x 36	(1) 4M x 36	(1) 4M x 36

CPU SPEED CONFIGURATION
Speed	J7	J8
25MHz	Open	Closed
33MHz	Closed	Open
50iMHz	Open	Closed
66iMHz	Closed	Open
