Processor	Pentium
Processor Speed	60/90MHz
Chip Set	Intel
Max. Onboard DRAM	128MB
Cache	8KB (internal)
BIOS	Phoenix
Dimensions	330mm x 218mm
I/O Options	32-bit PCI local bus slots (3), floppy drive interface, IDE interface, parallel port, PS/2 mouse port, serial ports (2)
NPU Options	None

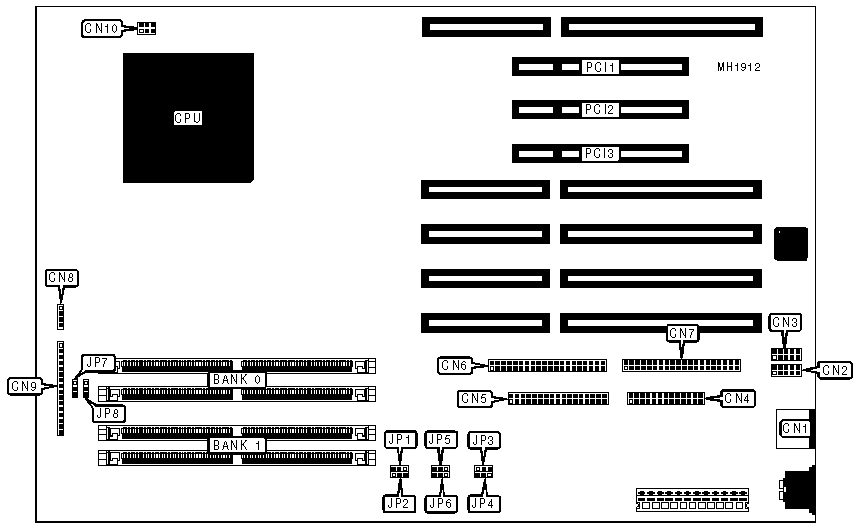

CONNECTIONS
Purpose	Location	Purpose	Location
PS/2 mouse port	CN1	Speaker	CN8
Serial port 1	CN2	Hard drive indicator	CN9
Serial port 2	CN3	Chassis fan power	CN10
Parallel port	CN4	32-bit PCI Local bus slot	PCI1
Floppy drive interface	CN5	32-bit PCI Local bus slot	PCI2
ISA IDE interface	CN6	32-bit PCI Local bus slot	PCI3
PCI IDE interface	CN7

USER CONFIGURABLE SETTINGS
Function		Jumper	Position
»	CMOS memory normal operation	JP1	pins 2 & 3 closed
	CMOS memory clear	JP1	pins 1 & 2 closed
»	Factory configured - do not alter	JP2	pins 2 & 3 closed
»	Monitor type select color	JP3	pins 1 & 2 closed
	Monitor type select monochrome	JP3	pins 2 & 3 closed
»	Password feature enabled	JP4	pins 2 & 3 closed
	Password feature disabled	JP4	pins 1 & 2 closed
»	Allows user to enter system setup program	JP5	pins 2 & 3 closed
	Prevents user from entering setup program	JP5	pins 1 & 2 closed
»	Flash-BIOS write-protect enabled	JP6	pins 2 & 3 closed
	Flash-BIOS write-protect disabled	JP6	pins 1 & 2 closed
»	Factory configured - do not alter	JP7	pins 2 & 3 closed
»	Factory configured - do not alter	JP8	Open

DRAM CONFIGURATION
Size	Bank 0	Bank 1
8MB	(2) 1M x 36	NONE
16MB	(2) 1M x 36	(2) 1M x 36
16MB	(2) 4M x 36	NONE
24MB	(2) 4M x 36	(2) 1M x 36
32MB	(2) 4M x 36	NONE
40MB	(2) 1M x 36	(2) 4M x 36
40MB	(2) 4M x 36	(2) 1M x 36
64MB	(2) 4M x 36	(2) 4M x 36
64MB	(2) 16M x 36	NONE
128MB	(2) 16M x 36	(2) 16M x 36
