DELL COMPUTER CORPORATION
286 - 8/10/12 System
|
Processor |
80286 |
|
Processor Speed |
6/8/10/12MHz |
|
Chip Set |
C & T |
|
Max. Onboard DRAM |
1MB |
|
Cache |
None |
|
BIOS |
Phoenix |
|
Dimensions |
334mm x 218mm |
|
I/O Options |
None |
|
NPU Options |
80287 |
|

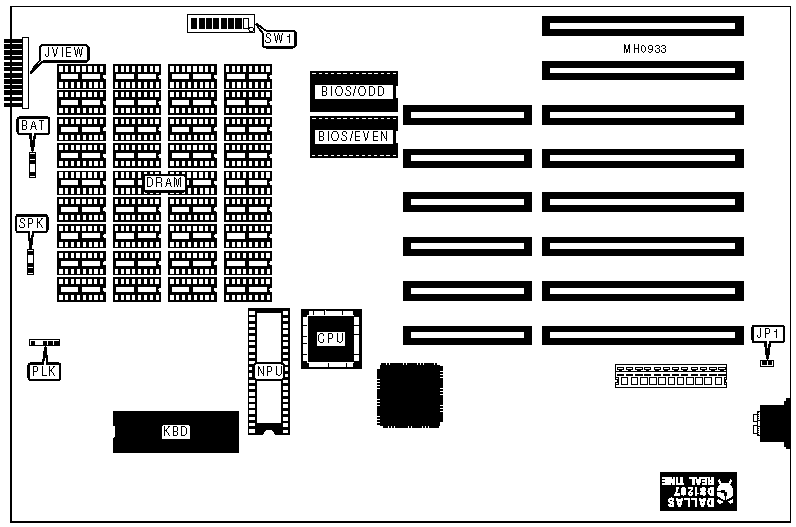

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
External battery |
BAT |
Speaker |
SPK |
|
Power LED & keylock |
PLK |
Front panel status LCD |
JVIEW |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Jumper/Switch |
Position | |
| » |
Factory configured - do not alter |
JP1 |
N/A |
| » |
Monitor type select monochrome |
SW1/1 |
Off |
|
Monitor type select color |
SW1/1 |
On | |
| » |
Front panel LED (green) select power indicator |
SW1/2 |
Off |
|
Front panel LED (green) select CPU speed indicator |
SW1/2 |
On | |
| » |
BIOS type select 27256 |
SW1/3 |
On |
|
BIOS type select 27128 |
SW1/3 |
Off | |
| » |
Maintenance mode disabled |
SW1/4 |
Off |
|
Maintenance mode enabled |
SW1/4 |
On | |
| » |
Factory configured - do not alter |
SW1/5 |
Off |
|
DRAM SWITCH CONFIGURATION | ||||
|
DRAM Split |
SW1/6 |
SW1/7 |
SW1/8 | |
| » |
640KB base / 384KB extended |
On |
Off |
Off |
|
512KB base / 512KB extended |
Off |
Off |
Off | |
|
System only recognizes 640KB of DRAM |
Off |
Off |
On | |
|
System only recognizes 512KB of DRAM |
Off |
On |
Off | |
|
System only recognizes 256KB of DRAM |
Off |
On |
On | |
|
Note:System memory is factory configured at 1MB and is not alterable. | ||||
