CLUB AMERICAN TECHNOLOGIES, INC.
EAGLE 300SX SERIES
|
Processor |
80386SX |
|
Processor Speed |
16/20/25MHz |
|
Chip Set |
VLSI |
|
Max. Onboard DRAM |
16MB |
|
Cache |
None |
|
BIOS |
AMI |
|
Dimensions |
330mm x 218mm |
|
I/O Options |
Parallel port, serial ports (2), floppy interface, IDE interface |
|
NPU Options |
80387SX |
|

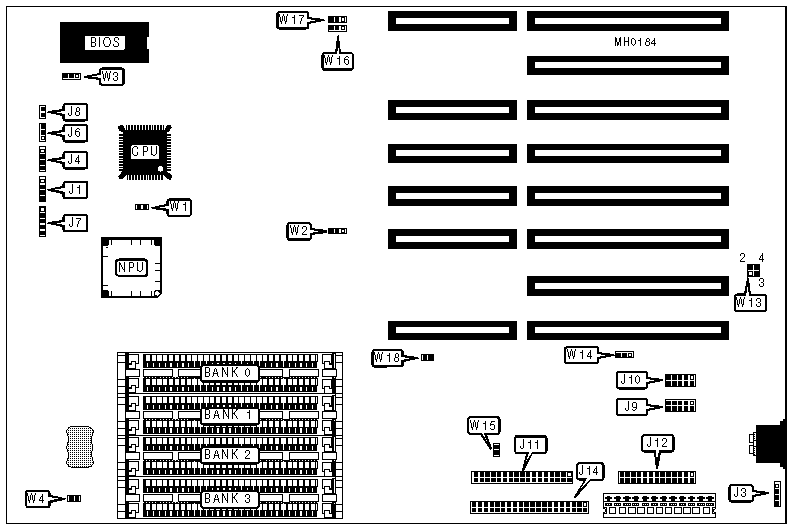

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Speaker |
J1 |
Serial port 1 |
J9 |
|
External battery |
J3 |
Serial port 2 |
J10 |
|
IDE interface LED |
J4 |
Floppy drive interface |
J11 |
|
Turbo LED |
J6 |
Parallel port |
J12 |
|
Power LED & keylock |
J7 |
IDE interface |
J14 |
|
Reset switch |
J8 | ||
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Jumper |
Position | |
| » |
Factory configured - do not alter |
W1 |
Closed |
| » |
Factory configured - do not alter |
W2 |
pins 1 & 2 closed |
| » |
Factory configured - do not alter |
W3 |
pins 2 & 3 closed |
| » |
On board battery enabled |
W4 |
Closed |
|
On board battery disabled |
W4 |
Open | |
| » |
Serial port COM1 (J9) at IRQ4 |
W13 |
pins 1 & 2 closed |
|
Serial port COM1 (J9) at IRQ3 |
W13 |
pins 1 & 3 closed | |
| » |
Serial port COM2 (J10) at IRQ3 |
W13 |
pins 3 & 4 closed |
|
Serial port COM2 (J10) at IRQ4 |
W13 |
pins 2 & 4 closed | |
| » |
Parallel port LPT1 (J12) at IRQ7 |
W14 |
pins 2 & 3 closed |
|
Parallel port LPT1 (J12) at IRQ5 |
W14 |
pins 1 & 2 closed | |
| » |
Factory configured - do not alter |
W15 |
Open |
| » |
CPU speed select switchable from keyboard |
W16 |
pins 1 & 2 closed |
|
CPU speed select slow |
W16 |
pins 2 & 3 closed | |
| » |
Monitor type select color |
W17 |
Closed |
|
Monitor type select monochrome |
W17 |
Open | |
| » |
Factory configured - do not alter |
W18 |
Closed |
|
DRAM CONFIGURATION | ||||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
|
512KB |
(2) 256K x 9 |
NONE |
NONE |
NONE |
|
1MB |
(2) 256K x 9 |
(2) 256K x 9 |
NONE |
NONE |
|
1.5MB |
(2) 256K x 9 |
(2) 256K x 9 |
(2) 256K x 9 |
NONE |
|
2MB |
(2) 256K x 9 |
(2) 256K x 9 |
(2) 256K x 9 |
(2) 256K x 9 |
|
2MB |
(2) 1M x 9 |
NONE |
NONE |
NONE |
|
2.5MB |
(2) 256K x 9 |
(2) 1M x 9 |
NONE |
NONE |
|
3MB |
(2) 256K x 9 |
(2) 256K x 9 |
(2) 1M x 9 |
NONE |
|
4MB |
(2) 1MB x 9 |
(2) 1M x 9 |
NONE |
NONE |
|
4.5MB |
(2) 1M x 9 |
(2) 1M x 9 |
(2) 256K x 9 |
NONE |
|
5MB |
(2) 256K x 9 |
(2) 256K x 9 |
(2) 1M x 9 |
(2) 1M x 9 |
|
6MB |
(2) 1M x 9 |
(2) 1M x 9 |
(2) 1M x 9 |
NONE |
|
8MB |
(2) 1M x 9 |
(2) 1M x 9 |
(2) 1M x 9 |
(2) 1M x 9 |
|
8MB |
(2) 4M x 9 |
NONE |
NONE |
NONE |
|
8.5MB |
(2) 256K x 9 |
(2) 4M x 9 |
NONE |
NONE |
|
9MB |
(2) 256K x 9 |
(2) 256K x 9 |
(2) 4M x 9 |
NONE |
|
10MB |
(2) 1M x 9 |
(2) 4M x 9 |
NONE |
NONE |
|
12MB |
(2) 1M x 9 |
(2) 1M x 9 |
(2) 4M x 9 |
NONE |
|
16MB |
(2) 4M x 9 |
(2) 4M x 9 |
NONE |
NONE |
