AAEON TECHNOLOGY, INC.
SBC-410
|
Device Type |
Single board computer |
|
Processor |
80486SX/CX486DX2/IBM486DX2/ST486DX2/TI486DX2/AM486DE2/ AM486DX2/80486DX2/CX486DX4/IBM486DX4/ST486DX4/ AM486DX4/80486DX4/P24D/P24T/CX5X86/IBM5X86/ST5X86/ AM DX5 |
|
Processor Speed |
25/33/40/50(internal)/50/66(internal)/75(internal)/100(internal)MHz |
|
Chip Set |
ALI M1489 |
|
Maximum Onboard Memory |
64MB (EDO supported) |
|
Cache |
128/256/512KB |
|
BIOS |
AMI |
|
Dimensions |
185mm x 122mm |
|
I/O Options |
Floppy drive interface, IDE interfaces (2), parallel port, serial ports (2), PC/104 connectors (2) |
|

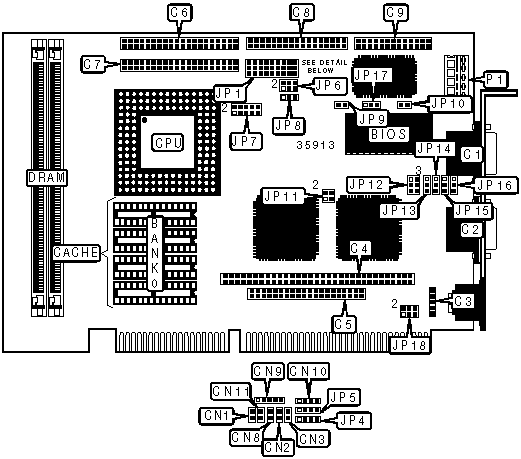

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Serial port 1 |
C1 |
Reset switch |
CN1 |
|
Serial port 2 |
C2 |
Turbo LED |
CN2 |
|
Auxiliary keyboard connector |
C3 |
IDE interface LED |
CN3 |
|
PC/104 connector |
C4 |
Turbo switch |
CN8 |
|
PC/104 connector |
C5 |
Power LED & keylock |
CN9 |
|
IDE interface 1 |
C6 |
Speaker |
CN10 |
|
IDE interface 2 |
C7 |
Green PC connector |
CN11 |
|
Floppy drive interface |
C8 |
5v power |
P1 |
|
Parallel port |
C9 | ||
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
|
» |
Watchdog timer reset |
JP4 |
Pins 1 & 2 closed |
|
Watchdog timer IRQ15 |
JP4 |
Pins 2 & 3 closed | |
|
» |
Factory configured - do not alter |
JP5 |
Unidentified |
|
» |
CMOS memory normal operation |
JP9 |
Open |
|
CMOS memory clear |
JP9 |
Closed | |
|
» |
Flash BIOS write protect enabled |
JP10 |
Open |
|
Flash BIOS write protect disabled |
JP10 |
Closed | |
|
» |
Flash BIOS voltage select 5v |
JP17 |
Pins 1 & 2 closed |
|
Flash BIOS voltage select 12v |
JP17 |
Pins 2 & 3 closed | |
|
» |
Keyboard connector select used as keyboard |
JP18 |
Pins 1 & 3, 2 & 4 closed |
|
Keyboard connector select used as mouse |
JP18 |
Pins 3 & 5, 4 & 6 closed | |
|
SIMM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
1MB |
(1) 256K x 36 |
None |
|
2MB |
(1) 512K x 36 |
None |
|
2MB |
(1) 256K x 36 |
(1) 256K x 36 |
|
3MB |
(1) 512K x 36 |
(1) 256K x 36 |
|
4MB |
(1) 1M x 36 |
None |
|
4MB |
(1) 512K x 36 |
(1) 512K x 36 |
|
5MB |
(1) 1M x 36 |
(1) 256K x 36 |
|
6MB |
(1) 1M x 36 |
(1) 512K x 36 |
|
8MB |
(1) 2M x 36 |
None |
|
8MB |
(1) 1M x 36 |
(1) 1M x 36 |
|
9MB |
(1) 2M x 36 |
(1) 256K x 36 |
|
10MB |
(1) 2M x 36 |
(1) 512K x 36 |
|
12MB |
(1) 2M x 36 |
(1) 1M x 36 |
|
SIMM CONFIGURATION (CON’T) | ||
|
Size |
Bank 0 |
Bank 1 |
|
16MB |
(1) 4M x 36 |
None |
|
17MB |
(1) 4M x 36 |
(1) 256K x 36 |
|
18MB |
(1) 4M x 36 |
(1) 512K x 36 |
|
20MB |
(1) 4M x 36 |
(1) 1M x 36 |
|
24MB |
(1) 4M x 36 |
(1) 2M x 36 |
|
32MB |
(1) 8M x 36 |
None |
|
32MB |
(1) 4M x 36 |
(1) 4M x 36 |
|
33MB |
(1) 8M x 36 |
(1) 256K x 36 |
|
34MB |
(1) 8M x 36 |
(1) 512K x 36 |
|
36MB |
(1) 8M x 36 |
(1) 1M x 36 |
|
40MB |
(1) 8M x 36 |
(1) 2M x 36 |
|
48MB |
(1) 8M x 36 |
(1) 4M x 36 |
|
64MB |
(1) 8M x 36 |
(1) 8M x 36 |
|
Note: Board accepts EDO memory. | ||
|
CACHE CONFIGURATION | ||
|
Size |
Bank 0 |
TAG |
|
128KB |
(4) 32K x 8 |
(1) 32K x 8 |
|
256KB |
(4) 64K x 8 |
(1) 32K x 8 |
|
512KB |
(4) 128K x 8 |
(1) 32K x 8 |
|
Note: The location of the TAG is unidentified. | ||
|
CACHE JUMPER CONFIGURATION | |
|
Size |
JP11 |
|
128KB |
Open |
|
256KB |
Pins 3 & 4 closed |
|
512KB |
Pins 1 & 2, 3 & 4 closed |
|
CPU SPEED SELECTION | ||
|
Speed |
JP6 |
JP8 |
|
25MHz |
Open |
Pins 1 & 2 closed |
|
33MHz |
Pins 1 & 2, 3 & 4 closed |
Pins 1 & 2 closed |
|
40MHz |
Pins 3 & 4, 5 & 6 closed |
Pins 2 & 3 closed |
|
50iMHz |
Open |
Pins 1 & 2 closed |
|
50MHz |
Pins 1 & 2, 5 & 6 closed |
Pins 2 & 3 closed |
|
66iMHz |
Pins 1 & 2, 3 & 4 closed |
Pins 1 & 2 closed |
|
75iMHz |
Open |
Pins 1 & 2 closed |
|
100iMHz |
Pins 1 & 2, 3 & 4 closed |
Pins 1 & 2 closed |
|
CPU TYPE SELECTION | |
|
Type |
JP1 |
|
80486SX |
1 & 4, 2 & 5, 8 & 9, 14 & 17, 19 & 20, 23 & 24, 25 & 26 |
|
CX 486DX2 |
1 & 4, 2 & 3, 5 & 8, 7 & 10, 11 & 13, 18 & 21, 22 & 23, 25 & 26 |
|
IBM 486DX2 |
1 & 4, 2 & 3, 5 & 8, 7 & 10, 11 & 13, 18 & 21, 22 & 23, 25 & 26 |
|
ST 486DX2 |
1 & 4, 2 & 3, 5 & 8, 7 & 10, 11 & 13, 18 & 21, 22 & 23, 25 & 26 |
|
TI 486DX2 |
1 & 4, 2 & 3, 5 & 8, 7 & 10, 11 & 13, 18 & 21, 22 & 23, 25 & 26 |
|
AM486DE2 |
1 & 4, 2 & 5, 8 & 9, 10 & 11, 14 & 17, 18 & 21, 19 & 20, 22 & 23, 26 & 27 |
|
AM486DX2(WB) |
1 & 4, 2 & 5, 8 & 9, 10 & 11, 13 & 16, 14 & 17, 18 & 21, 19 & 20, 22 & 23, 26 & 27 |
|
AM486DX2(WT) |
1 & 4, 2 & 5, 3 & 6, 8 & 9, 10 & 11, 14 & 17, 18 & 21, 19 & 20, 22 & 23, 26 & 27 |
|
80486DX2 |
1 & 4, 2 & 5, 8 & 9, 10 & 11, 14 & 17, 18 & 21, 19 & 20, 22 & 23, 26 & 27 |
|
CX 486DX4 |
1 & 4, 2 & 5, 8 & 9, 10 & 11, 14 & 17, 18 & 21, 19 & 20, 22 & 23, 25 & 26 |
|
IBM 486DX4 |
1 & 4, 2 & 5, 8 & 9, 10 & 11, 14 & 17, 18 & 21, 19 & 20, 22 & 23, 25 & 26 |
|
ST 486DX4 |
1 & 4, 2 & 5, 8 & 9, 10 & 11, 14 & 17, 18 & 21, 19 & 20, 22 & 23, 25 & 26 |
|
AM486DX4 |
1 & 4, 2 & 5, 8 & 9, 10 & 11, 14 & 17, 18 & 21, 19 & 20, 22 & 23, 26 & 27 |
|
80486DX4 |
1 & 4, 2 & 5, 8 & 9, 10 & 11, 14 & 17, 18 & 21, 19 & 20, 22 & 23, 26 & 27 |
|
P24D |
1 & 4, 2 & 5, 8 & 9, 10 & 11, 14 & 17, 18 & 21, 19 & 20, 22 & 23, 26 & 27 |
|
P24T |
1 & 4, 2 & 5, 7 & 10, 8 & 9, 14 & 17, 15 & 18, 19 & 20, 22 & 23, 26 & 27 |
|
CX 5X86 |
1 & 4, 2 & 5, 8 & 9, 10 & 11, 14 & 17, 18 & 21, 19 & 20, 22 & 23, 25 & 26 |
|
IBM 5X86 |
1 & 4, 2 & 5, 8 & 9, 10 & 11, 14 & 17, 18 & 21, 19 & 20, 22 & 23, 25 & 26 |
|
ST 5X86 |
1 & 4, 2 & 5, 8 & 9, 10 & 11, 14 & 17, 18 & 21, 19 & 20, 22 & 23, 25 & 26 |
|
AM DX5 |
1 & 4, 2 & 5, 8 & 9, 10 & 11, 13 & 16, 14 & 17, 18 & 21, 19 & 20, 22 & 23, 26 & 27 |
|
Note: Pins designated should be in the closed position. | |
|
CPU VOLTAGE SELECTION | ||
|
Voltage |
JP7 | |
|
3.3v |
Pins 6 & 8 closed | |
| » |
3.45v |
Pins 5 & 7 closed |
|
3.6v |
Pins 8 & 10 closed | |
|
4.0v |
Pins 7 & 9 closed | |
|
5.0v |
Pins 1 & 3, 2 & 4 closed | |
|
SERIAL PORT 2 SELECTION | ||||||
|
Setting |
JP12 |
JP13 |
JP14 |
JP15 |
JP16 | |
| » |
RS-232 |
1 & 2 |
1 & 2 |
1 & 2 |
1 & 2 |
1 & 2 |
|
RS-422 |
3 & 4 |
2 & 3 |
2 & 3 |
2 & 3 |
2 & 3 | |
|
RS-485 |
5 & 6 |
2 & 3 |
2 & 3 |
2 & 3 |
2 & 3 | |
|
Note: Pins designated should be in the closed position. | ||||||
