SBC-598

AAEON TECHNOLOGY, INC.

SBC-598

Device Type

Single board computer

Processor

CX 6X86MX/AM K6/Pentium/Pentium MMX

Processor Speed

166/200/233/266MHz

Chip Set

SIS 5598

Video Chip Set

SIS 5598

Maximum Onboard Memory

256MB (EDO & SDRAM supported) Unified Memory Architecture (UMA)

Cache

512KB

BIOS

Award

Dimensions

338mm x 122mm

I/O Options

Floppy drive interface, IDE interfaces (2), parallel port, PS/2 mouse port, PS/2 mouse interface, serial ports (2), VGA port, USB connector, IR connector

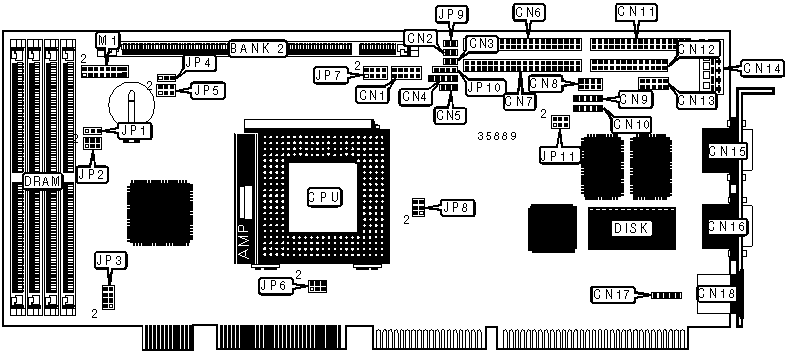

CONNECTIONS

Purpose

Location

Purpose

Location

USB connector

CN1

Floppy drive interface

CN11

IDE interface LED

CN2

Parallel port

CN12

Thermal alarm LED

CN3

Serial port 2

CN13

Power LED & keylock

CN4

5v power

CN14

Chassis fan power

CN5

Serial port 1

CN15

IDE interface 1

CN6

VGA port

CN16

IDE interface 2

CN7

Auxiliary keyboard connector

CN17

Digital I/O connector

CN8

PS/2 mouse port

CN18

IR connector

CN10

USER CONFIGURABLE SETTINGS

Function

Label

Position

»

Factory configured - do not alter

CN9

Unidentified

»

CMOS memory normal operation

JP1

Pins 1 & 2 closed

CMOS memory clear

JP1

Pins 2 & 3 closed

»

On board video enabled

JP2

Pins 1 & 3, 2 & 4 closed

On board video disabled

JP2

Pins 3 & 5, 4 & 6 closed

»

PCI CLK asynchronous

JP4

Pins 1 & 2 closed

PCI CLK synchronous

JP4

Pins 2 & 3 closed

»

Reset enabled

JP9

Open

Reset disabled

JP9

Closed

»

Buzzer enabled

JP10

Pins 2 & 3 closed

Speaker enabled

JP10

Open

SIMM CONFIGURATION

Size

Bank 0

Bank 1

8MB

(2) 1M x 36

None

16MB

(2) 2M x 36

None

16MB

(2) 1M x 36

(2) 1M x 36

24MB

(2) 2M x 36

(2) 1M x 36

32MB

(2) 4M x 36

None

32MB

(2) 2M x 36

(2) 2M x 36

40MB

(2) 4M x 36

(2) 1M x 36

48MB

(2) 4M x 36

(2) 2M x 36

SIMM CONFIGURATION (CON’T)

Size

Bank 0

Bank 1

64MB

(2) 8M x 36

None

64MB

(2) 4M x 36

(2) 4M x 36

72MB

(2) 8M x 36

(2) 1M x 36

80MB

(2) 8M x 36

(2) 2M x 36

96MB

(2) 8M x 36

(2) 4M x 36

128MB

(2) 8M x 36

(2) 8M x 36

128MB

(2) 16M x 36

None

136MB

(2) 16M x 36

(2) 1M x 36

144MB

(2) 16M x 36

(2) 2M x 36

160MB

(2) 16M x 36

(2) 4M x 36

192MB

(2) 16M x 36

(2) 8M x 36

256MB

(2) 16M x 36

(2) 16M x 36

Note: Board accepts EDO memory.

DIMM CONFIGURATION

Size

Bank 2

8MB

(1) 1M x 36

16MB

(1) 2M x 36

32MB

(1) 4M x 36

64MB

(1) 8M x 36

128MB

(1) 16M x 36

256MB

(1) 32M x 36

Note: Board accepts EDO memory.

DIMM VOLTAGE CONFIGURATION

Voltage

JP3

3.3v

Pins 5 & 6, 7 & 8 closed

»
5v

Pins 1 & 2, 3 & 4 closed

MEMORY BANK SELECTION

Setting

M1

»
SIMMs used

Pins 1 & 2, 3 & 4, 5 & 6, 7 & 8, 9 & 10, 11 & 12, 13 & 14, 15 & 16 closed

DIMM used

Pins 1 & 3, 2 & 4, 5 & 7, 6 & 8, 9 & 11, 10 & 12, 13 & 15, 14 & 16 closed

CACHE CONFIGURATION

Note: The location of the cache is unidentified.

CPU SPEED SELECTION (CX 6X86MX)

CPU speed

Clock speed

Multiplier

JP5

JP6

166MHz

60MHz

2.5x

3 & 4, 5 & 6

1 & 2, 3 & 4

200MHz

66MHz

2.5x

1 & 2, 5 & 6

1 & 2, 3 & 4

233MHz

66MHz

3x

1 & 2, 5 & 6

3 & 4

266MHz

66MHz

3.5x

1 & 2, 5 & 6

Open

Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (AM K6)

CPU speed

Clock speed

Multiplier

JP5

JP6

166MHz

66MHz

2.5x

1 & 2, 5 & 6

1 & 2, 3 & 4

200MHz

66MHz

3x

1 & 2, 5 & 6

3 & 4

233MHz

66MHz

3.5x

1 & 2, 5 & 6

Open

Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (INTEL)

CPU speed

Clock speed

Multiplier

JP5

JP6

166MHz

66MHz

2.5x

1 & 2, 5 & 6

1 & 2, 3 & 4

200MHz

66MHz

3x

1 & 2, 5 & 6

3 & 4

Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (INTEL MMX)

CPU speed

Clock speed

Multiplier

JP5

JP6

166MHz

66MHz

2.5x

1 & 2, 5 & 6

1 & 2, 3 & 4

200MHz

66MHz

3x

1 & 2, 5 & 6

3 & 4

233MHz

66MHz

3.5x

1 & 2, 5 & 6

Open

Note: Pins designated should be in the closed position.

CPU TYPE SELECTION

Type

JP8

Single voltage

Pins 3 & 5, 4 & 6 closed

»
Dual voltage

Pins 1 & 3, 2 & 4 closed

CPU VOLTAGE SELECTION

Voltage

JP7

2.0v

Open

2.1v

Pins 7 & 8 closed

2.2v

Pins 5 & 6 closed

2.3v

Pins 5 & 6, 7 & 8 closed

2.4v

Pins 3 & 4 closed

2.5v

Pins 3 & 4, 7 & 8 closed

2.6v

Pins 3 & 4, 5 & 6 closed

2.7v

Pins 3 & 4, 5 & 6, 7 & 8 closed

»
2.8v

Pins 1 & 2 closed

2.9v

Pins 1 & 2, 7 & 8 closed

3.0v

Pins 1 & 2, 5 & 6 closed

3.1v

Pins 1 & 2, 5 & 6, 7 & 8 closed

3.2v

Pins 1 & 2, 3 & 4 closed

3.3v

Pins 1 & 2, 3 & 4, 7 & 8 closed

3.4v

Pins 1 & 2, 3 & 4, 5 & 6 closed

3.5v

Pins 1 & 2, 3 & 4, 5 & 6, 7 & 8 closed

DISK ADDRESS SELECTION

Address

JP11

C800

Pins 1 & 2, 3 & 4 closed

CC00

Pins 1 & 2, 5 & 6 closed

D000

Pins 1 & 2 closed

D400

Pins 3 & 4, 5 & 6 closed

»
D800

Pins 3 & 4 closed

DC00

Pins 5 & 6 closed

E000

Open

Disabled

Pins 1 & 2, 3 & 4, 5 & 6 closed

Device Type	Single board computer
Processor	CX 6X86MX/AM K6/Pentium/Pentium MMX
Processor Speed	166/200/233/266MHz
Chip Set	SIS 5598
Video Chip Set	SIS 5598
Maximum Onboard Memory	256MB (EDO & SDRAM supported) Unified Memory Architecture (UMA)
Cache	512KB
BIOS	Award
Dimensions	338mm x 122mm
I/O Options	Floppy drive interface, IDE interfaces (2), parallel port, PS/2 mouse port, PS/2 mouse interface, serial ports (2), VGA port, USB connector, IR connector

CONNECTIONS
Purpose	Location	Purpose	Location
USB connector	CN1	Floppy drive interface	CN11
IDE interface LED	CN2	Parallel port	CN12
Thermal alarm LED	CN3	Serial port 2	CN13
Power LED & keylock	CN4	5v power	CN14
Chassis fan power	CN5	Serial port 1	CN15
IDE interface 1	CN6	VGA port	CN16
IDE interface 2	CN7	Auxiliary keyboard connector	CN17
Digital I/O connector	CN8	PS/2 mouse port	CN18
IR connector	CN10

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Factory configured - do not alter	CN9	Unidentified
»	CMOS memory normal operation	JP1	Pins 1 & 2 closed
	CMOS memory clear	JP1	Pins 2 & 3 closed
»	On board video enabled	JP2	Pins 1 & 3, 2 & 4 closed
	On board video disabled	JP2	Pins 3 & 5, 4 & 6 closed
»	PCI CLK asynchronous	JP4	Pins 1 & 2 closed
	PCI CLK synchronous	JP4	Pins 2 & 3 closed
»	Reset enabled	JP9	Open
	Reset disabled	JP9	Closed
»	Buzzer enabled	JP10	Pins 2 & 3 closed
	Speaker enabled	JP10	Open

SIMM CONFIGURATION
Size	Bank 0	Bank 1
8MB	(2) 1M x 36	None
16MB	(2) 2M x 36	None
16MB	(2) 1M x 36	(2) 1M x 36
24MB	(2) 2M x 36	(2) 1M x 36
32MB	(2) 4M x 36	None
32MB	(2) 2M x 36	(2) 2M x 36
40MB	(2) 4M x 36	(2) 1M x 36
48MB	(2) 4M x 36	(2) 2M x 36

SIMM CONFIGURATION (CON’T)
Size	Bank 0	Bank 1
64MB	(2) 8M x 36	None
64MB	(2) 4M x 36	(2) 4M x 36
72MB	(2) 8M x 36	(2) 1M x 36
80MB	(2) 8M x 36	(2) 2M x 36
96MB	(2) 8M x 36	(2) 4M x 36
128MB	(2) 8M x 36	(2) 8M x 36
128MB	(2) 16M x 36	None
136MB	(2) 16M x 36	(2) 1M x 36
144MB	(2) 16M x 36	(2) 2M x 36
160MB	(2) 16M x 36	(2) 4M x 36
192MB	(2) 16M x 36	(2) 8M x 36
256MB	(2) 16M x 36	(2) 16M x 36
Note: Board accepts EDO memory.

DIMM CONFIGURATION
Size	Bank 2
8MB	(1) 1M x 36
16MB	(1) 2M x 36
32MB	(1) 4M x 36
64MB	(1) 8M x 36
128MB	(1) 16M x 36
256MB	(1) 32M x 36
Note: Board accepts EDO memory.

DIMM VOLTAGE CONFIGURATION
Voltage		JP3
	3.3v	Pins 5 & 6, 7 & 8 closed
»	5v	Pins 1 & 2, 3 & 4 closed

MEMORY BANK SELECTION
Setting		M1
»	SIMMs used	Pins 1 & 2, 3 & 4, 5 & 6, 7 & 8, 9 & 10, 11 & 12, 13 & 14, 15 & 16 closed
	DIMM used	Pins 1 & 3, 2 & 4, 5 & 7, 6 & 8, 9 & 11, 10 & 12, 13 & 15, 14 & 16 closed

CPU SPEED SELECTION (CX 6X86MX)
CPU speed	Clock speed	Multiplier	JP5	JP6
166MHz	60MHz	2.5x	3 & 4, 5 & 6	1 & 2, 3 & 4
200MHz	66MHz	2.5x	1 & 2, 5 & 6	1 & 2, 3 & 4
233MHz	66MHz	3x	1 & 2, 5 & 6	3 & 4
266MHz	66MHz	3.5x	1 & 2, 5 & 6	Open
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (AM K6)
CPU speed	Clock speed	Multiplier	JP5	JP6
166MHz	66MHz	2.5x	1 & 2, 5 & 6	1 & 2, 3 & 4
200MHz	66MHz	3x	1 & 2, 5 & 6	3 & 4
233MHz	66MHz	3.5x	1 & 2, 5 & 6	Open
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (INTEL)
CPU speed	Clock speed	Multiplier	JP5	JP6
166MHz	66MHz	2.5x	1 & 2, 5 & 6	1 & 2, 3 & 4
200MHz	66MHz	3x	1 & 2, 5 & 6	3 & 4
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (INTEL MMX)
CPU speed	Clock speed	Multiplier	JP5	JP6
166MHz	66MHz	2.5x	1 & 2, 5 & 6	1 & 2, 3 & 4
200MHz	66MHz	3x	1 & 2, 5 & 6	3 & 4
233MHz	66MHz	3.5x	1 & 2, 5 & 6	Open
Note: Pins designated should be in the closed position.

CPU TYPE SELECTION
Type		JP8
	Single voltage	Pins 3 & 5, 4 & 6 closed
»	Dual voltage	Pins 1 & 3, 2 & 4 closed

CPU VOLTAGE SELECTION
Voltage		JP7
	2.0v	Open
	2.1v	Pins 7 & 8 closed
	2.2v	Pins 5 & 6 closed
	2.3v	Pins 5 & 6, 7 & 8 closed
	2.4v	Pins 3 & 4 closed
	2.5v	Pins 3 & 4, 7 & 8 closed
	2.6v	Pins 3 & 4, 5 & 6 closed
	2.7v	Pins 3 & 4, 5 & 6, 7 & 8 closed
»	2.8v	Pins 1 & 2 closed
	2.9v	Pins 1 & 2, 7 & 8 closed
	3.0v	Pins 1 & 2, 5 & 6 closed
	3.1v	Pins 1 & 2, 5 & 6, 7 & 8 closed
	3.2v	Pins 1 & 2, 3 & 4 closed
	3.3v	Pins 1 & 2, 3 & 4, 7 & 8 closed
	3.4v	Pins 1 & 2, 3 & 4, 5 & 6 closed
	3.5v	Pins 1 & 2, 3 & 4, 5 & 6, 7 & 8 closed

DISK ADDRESS SELECTION
Address		JP11
	C800	Pins 1 & 2, 3 & 4 closed
	CC00	Pins 1 & 2, 5 & 6 closed
	D000	Pins 1 & 2 closed
	D400	Pins 3 & 4, 5 & 6 closed
»	D800	Pins 3 & 4 closed
	DC00	Pins 5 & 6 closed
	E000	Open
	Disabled	Pins 1 & 2, 3 & 4, 5 & 6 closed
