AMERICAN MEGATRENDS, INC.
EZ-FLEX SERIES 38
|
Device Type |
Mainboard |
|
Processor |
AM386DX/80386DX |
|
Processor Speed |
25/33/40MHz |
|
Chip Set |
Unidentified |
|
Video Chip Set |
None |
|
Maximum Onboard Memory |
None |
|
Maximum Video Memory |
None |
|
Cache |
64/256KB |
|
BIOS |
AMI |
|
Dimensions |
Unidentified |
|
I/O Options |
None |
|
NPU Options |
80387DX/3167 |
|

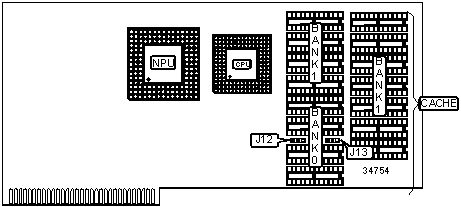

CACHE CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
64KB |
Unidentified |
None |
|
256KB |
Unidentified |
(11) 64K x 4 |
|
Note: the chip size in bank 0 is unidentified. | ||
|
CACHE JUMPER CONFIGURATION | ||
|
Size |
J12 |
J13 |
|
64KB |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
|
256KB |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
