Processor	CX M1/AM K5/Pentium
Processor Speed	90/100/120/133/150/166/180/200MHz
Chip Set	Intel
Video Chip Set	None
Maximum Onboard Memory	256MB (EDO supported)
Maximum Video Memory	None
Cache	256/512KB
BIOS	Award
Dimensions	305mm x 201mm
I/O Options	32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), IR connector, USB connector, ATX power connector
NPU Options	None

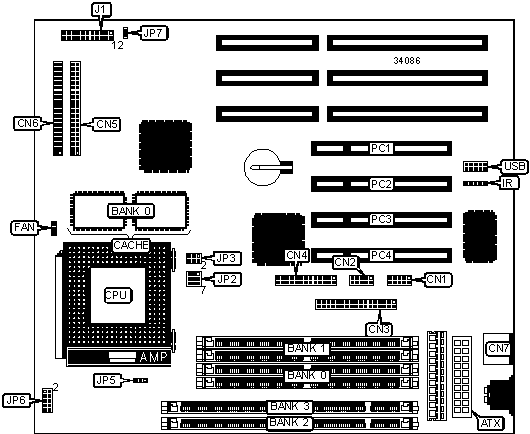

CONNECTIONS
Purpose	Location	Purpose	Location
ATX power supply	ATX	Reset switch	J1 pins 1 & 2
Serial port 1	CN1	Green PC connector	J1 pins 4 & 5
Serial port 2	CN2	Turbo LED	J1 pins 7 & 8
Floppy drive interface	CN3	IDE interface LED	J1 pins 10 & 11
Parallel port	CN4	Speaker	J1 pins 12 - 15
IDE interface 1	CN5	Power LED & keylock	J1 pins 17 - 21
IDE interface 2	CN6	Soft off power supply	JP7
PS/2 mouse port	CN7	32-bit PCI slots	PC1 – PC4
Chassis fan power	FAN	USB connector	USB
IR connector	IR

DIMM CONFIGURATION
Size	Bank 2	Bank 3
8MB	(1) 1M x 64	None
16MB	(1) 1M x 64	(1) 1M x 64
16MB	(1) 2M x 64	None
32MB	(1) 2M x 64	(1) 2M x 64
32MB	(1) 4M x 64	None
64MB	(1) 4M x 64	(1) 4M x 64
64MB	(1) 8M x 64	None
128MB	(1) 8M x 64	(1) 8M x 64
Note: Do not install DIMM and SIMM at the same time. Banks are interchangeable.

DRAM CONFIGURATION
Size	Bank 0	Bank 1
8MB	(2) 1M x 36	None
16MB	(2) 2M x 36	None
16MB	(2) 1M x 36	(2) 1M x 36
24MB	(2) 2M x 36	(2) 1M x 36
32MB	(2) 4M x 36	None
32MB	(2) 2M x 36	(2) 2M x 36
40MB	(2) 4M x 36	(2) 1M x 36
48MB	(2) 4M x 36	(2) 2M x 36
64MB	(2) 8M x 36	None
64MB	(2) 4M x 36	(2) 4M x 36
72MB	(2) 8M x 36	(2) 1M x 36
80MB	(2) 8M x 36	(2) 2M x 36
96MB	(2) 8M x 36	(2) 4M x 36
128MB	(2) 8M x 36	(2) 8M x 36
128MB	(2) 16M x 36	None

DRAM CONFIGURATION (CON’T)
Size	Bank 0	Bank 1
136MB	(2) 16M x 36	(2) 1M x 36
144MB	(2) 16M x 36	(2) 2M x 36
160MB	(2) 16M x 36	(2) 4M x 36
192MB	(2) 16M x 36	(2) 8M x 36
256MB	(2) 16M x 36	(2) 16M x 36
Note: Board accepts EDO memory. Banks are interchangeable.

CACHE CONFIGURATION
Size	Bank 0
256KB	(2) 32K x 32
512KB	(2) 64K x 32

CPU SPEED SELECTION (CYRIX)
CPU speed	Clock speed	Multiplier	JP2	JP3
150MHz	60MHz	2x	2 & 3, 4 & 5	1 & 2, 5 & 6
166MHz	66MHz	2x	2 & 3, 4 & 5	1 & 2, 4 & 5
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (AMD)
CPU speed	Clock speed	Multiplier	JP2	JP3
90MHz	60MHz	1.5x	1 & 2, 4 & 5	1 & 2, 5 & 6
100MHz	66MHz	1.5x	1 & 2, 4 & 5	1 & 2, 4 & 5
120MHz	60MHz	1.5x	1 & 2, 4 & 5	1 & 2, 5 & 6
133MHz	66MHz	1.5x	1 & 2, 4 & 5	1 & 2, 4 & 5
166MHz	66MHz	2x	2 & 3, 4 & 5	1 & 2, 4 & 5
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (INTEL)
CPU speed	Clock speed	Multiplier	JP2	JP3
120MHz	60MHz	2x	2 & 3, 4 & 5	1 & 2, 5 & 6
133MHz	66MHz	2x	2 & 3, 4 & 5	1 & 2, 4 & 5
150MHz	60MHz	2.5x	2 & 3, 5 & 6	1 & 2, 5 & 6
166MHz	66MHz	2.5x	2 & 3, 5 & 6	1 & 2, 4 & 5
180MHz	60MHz	3x	1 & 2, 5 & 6	1 & 2, 5 & 6
200MHz	66MHz	3x	1 & 2, 5 & 6	1 & 2, 4 & 5
Note: Pins designated should be in the closed position.

CPU TYPE SELECTION
Type	JP5	JP6
CX6X86	Pins 2 & 3 closed	Pins 1 & 2 closed
CX6X86L	Pins 1 & 2 closed	Pins 9 & 10 closed
AM K5	Pins 2 & 3 closed	Pins 1 & 2 closed
P54C STD	Pins 2 & 3 closed	Pins 1 & 2 closed
P54C VRE	Pins 2 & 3 closed	Pins 3 & 4 closed
P55C	Pins 1 & 2 closed	Pins 9 & 10 closed
