AMERICAN PREDATOR CORPORATION
PREDATOR I PLUS OVERDRIVE
|
Processor |
80486SX/80487SX/80486DX/80486DX2/80486DX4/Pentium Overdrive |
|
Processor Speed |
20/25/33/40/50(internal)/50/66(internal)/75(internal)/83(internal)/ 100(internal)MHz |
|
Chip Set |
Symphony |
|
Max. Onboard DRAM |
64MB |
|
Cache |
128/256KB |
|
BIOS |
AMI |
|
Dimensions |
330mm x 218mm |
|
I/O Options |
32-bit VESA local bus slots (2), floppy drive interface, IDE interface, parallel port, PS/2 mouse interface, serial ports (2) |
|
NPU Options |
None |
|

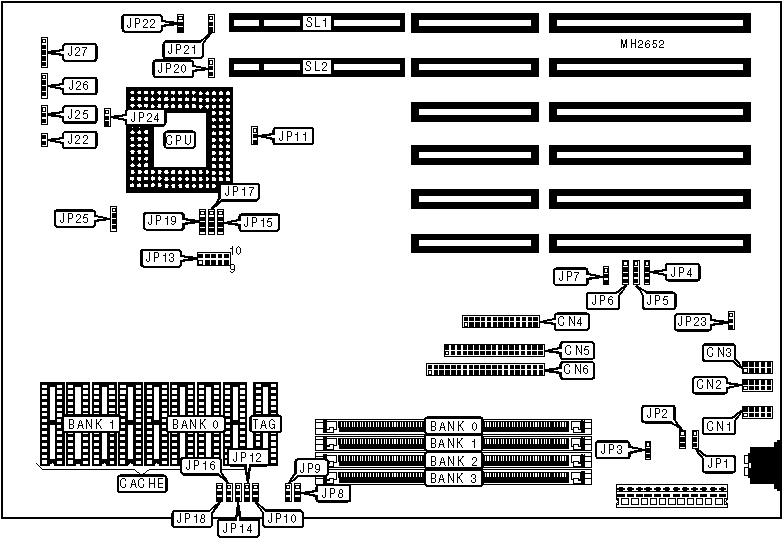

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
PS/2 mouse interface |
CN1 |
5v ground |
J22 |
|
Serial port 2 |
CN2 |
Turbo LED |
J25 |
|
Serial port 1 |
CN3 |
Speaker |
J26 |
|
Parallel port |
CN4 |
Power LED & keylock |
J27 |
|
Floppy drive interface |
CN5 |
32-bit VESA local bus slots |
SL1 & SL2 |
|
IDE interface |
CN6 | ||
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Jumper |
Position | |
|
» |
CMOS memory normal operation |
JP1 |
pins 1 & 2 closed |
|
CMOS memory clear |
JP1 |
pins 2 & 3 closed | |
|
» |
Monitor type select color |
JP2 |
pins 1 & 2 closed |
|
Monitor type select monochrome |
JP2 |
pins 2 & 3 closed | |
|
» |
Mouse IRQ12 enabled |
JP3 |
pins 1 & 2 closed |
|
Mouse IRQ12 disabled |
JP3 |
pins 2 & 3 closed | |
|
» |
Serial port 2 IRQ select IRQ3 |
JP4 |
pins 1 & 2 closed |
|
Serial port 2 IRQ select IRQ9 |
JP4 |
pins 2 & 3 closed | |
|
Serial port 2 IRQ select disabled |
JP4 |
pins 3 & 4 closed | |
|
» |
Parallel port IRQ select IRQ7 |
JP5 |
pins 1 & 2 closed |
|
Parallel port IRQ select IRQ5 |
JP5 |
pins 2 & 3 closed | |
|
Parallel port IRQ select disabled |
JP5 |
pins 3 & 4 closed | |
|
» |
Serial port 1 IRQ select IRQ4 |
JP6 |
pins 1 & 2 closed |
|
Serial port 1 IRQ select IRQ5 |
JP6 |
pins 2 & 3 closed | |
|
Serial port 1 IRQ select disabled |
JP6 |
pins 3 & 4 closed | |
|
» |
On board I/O enabled |
JP7 |
pins 1 & 2 closed |
|
On board I/O disabled |
JP7 |
pins 2 & 3 closed | |
|
» |
BIOS type select normal |
JP23 |
pins 1 & 2 closed |
|
BIOS type select emergency |
JP23 |
pins 2 & 3 closed | |
|
DRAM CONFIGURATION | ||||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
|
1MB |
(1) 256K x 36 |
NONE |
NONE |
NONE |
|
2MB |
(1) 256K x 36 |
(1) 256K x 36 |
NONE |
NONE |
|
2MB |
(1) 512K x 36 |
NONE |
NONE |
NONE |
|
3MB |
(1) 256K x 36 |
(1) 512K x 36 |
NONE |
NONE |
|
4MB |
(1) 256K x 36 |
(1) 256K x 36 |
(1) 256K x 36 |
(1) 256K x 36 |
|
4MB |
(1) 512K x 36 |
(1) 512K x 36 |
NONE |
NONE |
|
4MB |
(1) 1M x 36 |
NONE |
NONE |
NONE |
|
5MB |
(1) 256K x 36 |
(1) 1M x 36 |
NONE |
NONE |
|
5MB |
(1) 512K x 36 |
(1) 256K x 36 |
(1) 256K x 36 |
(1) 256K x 36 |
|
6MB |
(1) 512K x 36 |
(1) 1M x 36 |
NONE |
NONE |
|
6MB |
(1) 1M x 36 |
(1) 512K x 36 |
NONE |
NONE |
|
7MB |
(1) 256K x 36 |
(1) 512K x 36 |
(1) 512K x 36 |
(1) 512K x 36 |
|
7MB |
(1) 1M x 36 |
(1) 256K x 36 |
(1) 256K x 36 |
(1) 256K x 36 |
|
8MB |
(1) 512K x 36 |
(1) 512K x 36 |
(1) 512K x 36 |
(1) 512K x 36 |
|
8MB |
(1) 1M x 36 |
(1) 1M x 36 |
NONE |
NONE |
|
8MB |
(1) 2M x 36 |
NONE |
NONE |
NONE |
|
9MB |
(1) 256K x 36 |
(1) 2M x 36 |
NONE |
NONE |
|
10MB |
(1) 512K x 36 |
(1) 2M x 36 |
NONE |
NONE |
|
10MB |
(1) 1M x 36 |
(1) 512K x 36 |
(1) 512K x 36 |
(1) 512K x 36 |
|
10MB |
(1) 2M x 36 |
(1) 512K x 36 |
NONE |
NONE |
|
11MB |
(1) 2M x 36 |
(1) 256K x 36 |
(1) 256K x 36 |
(1) 256K x 36 |
|
12MB |
(1) 1M x 36 |
(1) 2M x 36 |
NONE |
NONE |
|
DRAM CONFIGURATION (CON’T) | ||||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
|
12MB |
(1) 2M x 36 |
(1) 1M x 36 |
NONE |
NONE |
|
13MB |
(1) 256K x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
|
14MB |
(1) 512K x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
|
14MB |
(1) 2M x 36 |
(1) 512K x 36 |
(1) 512K x 36 |
(1) 512K x 36 |
|
16MB |
(1) 1M x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
|
16MB |
(1) 2M x 36 |
(1) 2M x 36 |
NONE |
NONE |
|
16MB |
(1) 4M x 36 |
NONE |
NONE |
NONE |
|
17MB |
(1) 256K x 36 |
(1) 4M x 36 |
NONE |
NONE |
|
18MB |
(1) 512K x 36 |
(1) 4M x 36 |
NONE |
NONE |
|
18MB |
(1) 4M x 36 |
(1) 512K x 36 |
NONE |
NONE |
|
19MB |
(1) 4M x 36 |
(1) 256K x 36 |
(1) 256K x 36 |
(1) 256K x 36 |
|
20MB |
(1) 1M x 36 |
(1) 4M x 36 |
NONE |
NONE |
|
20MB |
(1) 2M x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
|
20MB |
(1) 4M x 36 |
(1) 1M x 36 |
NONE |
NONE |
|
22MB |
(1) 4M x 36 |
(1) 512K x 36 |
(1) 512K x 36 |
(1) 512K x 36 |
|
24MB |
(1) 2M x 36 |
(1) 4M x 36 |
NONE |
NONE |
|
24MB |
(1) 4M x 36 |
(1) 2M x 36 |
NONE |
NONE |
|
25MB |
(1) 256K x 36 |
(1) 2M x 36 |
(1) 2M x 36 |
(1) 2M x 36 |
|
26MB |
(1) 512K x 36 |
(1) 2M x 36 |
(1) 2M x 36 |
(1) 2M x 36 |
|
28MB |
(1) 1M x 36 |
(1) 2M x 36 |
(1) 2M x 36 |
(1) 2M x 36 |
|
28MB |
(1) 4M x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
|
32MB |
(1) 2M x 36 |
(1) 2M x 36 |
(1) 2M x 36 |
(1) 2M x 36 |
|
32MB |
(1) 8M x 36 |
NONE |
NONE |
NONE |
|
32MB |
(1) 4M x 36 |
(1) 4M x 36 |
NONE |
NONE |
|
33MB |
(1) 256K x 36 |
(1) 8M x 36 |
NONE |
NONE |
|
34MB |
(1) 512K x 36 |
(1) 8M x 36 |
NONE |
NONE |
|
34MB |
(1) 8M x 36 |
(1) 512K x 36 |
NONE |
NONE |
|
35MB |
(1) 8M x 36 |
(1) 256K x 36 |
(1) 256K x 36 |
(1) 256K x 36 |
|
36MB |
(1) 1M x 36 |
(1) 8M x 36 |
NONE |
NONE |
|
36MB |
(1) 8M x 36 |
(1) 1M x 36 |
NONE |
NONE |
|
38MB |
(1) 8M x 36 |
(1) 512K x 36 |
(1) 512K x 36 |
(1) 512K x 36 |
|
40MB |
(1) 2M x 36 |
(1) 8M x 36 |
NONE |
NONE |
|
40MB |
(1) 8M x 36 |
(1) 2M x 36 |
NONE |
NONE |
|
40MB |
(1) 4M x 36 |
(1) 2M x 36 |
(1) 2M x 36 |
(1) 2M x 36 |
|
44MB |
(1) 8M x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
|
48MB |
(1) 8M x 36 |
(1) 4M x 36 |
NONE |
NONE |
|
48MB |
(1) 4M x 36 |
(1) 8M x 36 |
NONE |
NONE |
|
49MB |
(1) 256K x 36 |
(1) 4M x 36 |
(1) 4M x 36 |
(1) 4M x 36 |
|
50MB |
(1) 512K x 36 |
(1) 4M x 36 |
(1) 4M x 36 |
(1) 4M x 36 |
|
52MB |
(1) 1M x 36 |
(1) 4M x 36 |
(1) 4M x 36 |
(1) 4M x 36 |
|
56MB |
(1) 2M x 36 |
(1) 4M x 36 |
(1) 4M x 36 |
(1) 4M x 36 |
|
56MB |
(1) 8M x 36 |
(1) 2M x 36 |
(1) 2M x 36 |
(1) 2M x 36 |
|
64MB |
(1) 8M x 36 |
(1) 8M x 36 |
NONE |
NONE |
|
64MB |
(1) 4M x 36 |
(1) 4M x 36 |
(1) 4M x 36 |
(1) 4M x 36 |
|
CACHE CONFIGURATION | |||
|
Size |
Bank 0 |
Bank 1 |
TAG |
|
128KB |
(4) 32K x 8 |
NONE |
(1) 8K x 8 |
|
256KB |
(4) 32K x 8 |
(4) 32K x 8 |
(1) 32K x 8 |
|
CACHE JUMPER CONFIGURATION | |||||||
|
Size |
JP8 |
JP9 |
JP10 |
JP12 |
JP14 |
JP16 |
JP18 |
|
128KB |
1 & 2 |
1 & 2 |
1 & 2 |
1 & 2 |
1 & 2 |
1 & 2 |
1 & 2 |
|
256KB |
2 & 3 |
2 & 3 |
2 & 3 |
2 & 3 |
2 & 3 |
2 & 3 |
2 & 3 |
|
Note: Pins designated should be in the closed position. | |||||||
|
CPU TYPE CONFIGURATION | ||||
|
Type |
JP15 |
JP17 |
JP19 |
JP24 |
|
80486SX |
pins 3 & 4 closed |
pins 3 & 4 closed |
pins 3 & 4 closed |
pins 1 & 2 closed |
|
80487SX |
pins 2 & 3 closed |
pins 2 & 3 closed |
pins 2 & 3 closed |
pins 1 & 2 closed |
|
80486DX |
pins 1 & 2 closed |
pins 1 & 2 closed |
pins 1 & 2 closed |
pins 1 & 2 closed |
|
80486DX2 |
pins 1 & 2 closed |
pins 1 & 2 closed |
pins 1 & 2 closed |
pins 1 & 2 closed |
|
80486DX4 |
pins 1 & 2 closed |
pins 1 & 2 closed |
pins 1 & 2 closed |
pins 2 & 3 closed |
|
Pentium Overdrive |
pins 2 & 3 closed |
pins 2 & 3 closed |
pins 2 & 3 closed |
pins 1 & 2 closed |
|
CPU SPEED CONFIGURATION | |||||
|
Speed |
JP11 |
JP13 |
JP20 |
JP21 |
JP25 |
|
20MHz |
1 & 2 |
1 & 2 |
2 & 3 |
1 & 2 |
N/A |
|
25MHz |
1 & 2 |
3 & 4 |
2 & 3 |
1 & 2 |
N/A |
|
33MHz |
1 & 2 |
5 & 6 |
2 & 3 |
1 & 2 |
N/A |
|
40MHz |
1 & 2 |
7 & 8 |
2 & 3 |
1 & 2 |
N/A |
|
50iMHz |
1 & 2 |
3 & 4 |
2 & 3 |
1 & 2 |
N/A |
|
50MHz |
2 & 3 |
9 & 10 |
1 & 2 |
2 & 3 |
N/A |
|
66iMHz |
1 & 2 |
5 & 6 |
2 & 3 |
1 & 2 |
N/A |
|
75iMHz |
1 & 2 |
3 & 4 |
2 & 3 |
1 & 2 |
1 & 2 |
|
83iMHz |
1 & 2 |
5 & 6 |
2 & 3 |
1 & 2 |
3 & 4 |
|
100iMHz |
1 & 2 |
5 & 6 |
2 & 3 |
1 & 2 |
1 & 2 |
|
Note: Pins designated should be in the closed position. | |||||
|
VESA WAIT STATE CONFIGURATION | |
|
Wait states |
JP22 |
|
0 wait states |
pins 1 & 2 closed |
|
1 wait state |
pins 2 & 3 closed |
