AXIOM TECHNOLOGY, INC.
AX8035H
|
Processor |
CX486S/80486SX/80487SX/CX486DX/80486DX/80486DX2 |
|
Processor Speed |
33/50MHz |
|
Chip Set |
UMC |
|
Max. Onboard DRAM |
64MB |
|
Cache |
32/64/128/256KB |
|
BIOS |
AMI |
|
Dimensions |
185mm x 122mm |
|
I/O Options |
Floppy drive interface, IDE interface, parallel port, serial ports (2) |
|
NPU Options |
None |
|

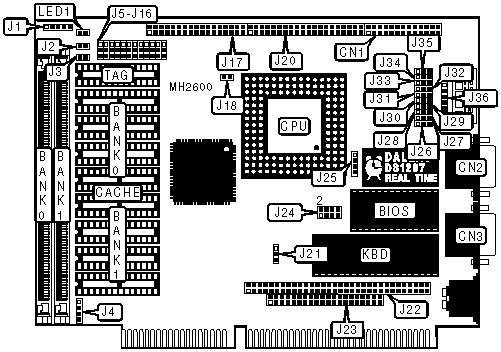

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Parallel port |
CN1 |
Floppy drive interface |
J17 |
|
Serial port 1 |
CN2 |
IDE interface LED |
J18 |
|
Serial port 2 |
CN3 |
IDE interface |
J20 |
|
Power LED & keylock |
J1 |
PC/104 bus connector |
J22 |
|
Turbo switch |
J2 |
PC/104 bus connector |
J23 |
|
Reset switch |
J3 |
Auxiliary keyboard connector |
J36 |
|
Speaker |
J4 |
Turbo LED |
LED1 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Jumper |
Position | |
|
» |
Factory configured - do not alter |
J14 |
pins 1 & 2 closed |
|
» |
Factory configured - do not alter |
J15 |
pins 1 & 2 closed |
|
» |
Parallel port enabled |
J26 |
pins 1 & 2 closed |
|
Parallel port disabled |
J26 |
pins 2 & 3 closed | |
|
» |
Floppy drive interface enabled |
J29 |
pins 1 & 2 closed |
|
Floppy drive interface disabled |
J29 |
pins 2 & 3 closed | |
|
» |
Parallel port select LPT2 |
J30 |
pins 1 & 2 closed |
|
Parallel port select LPT3 |
J30 |
pins 2 & 3 closed | |
|
» |
Watch dog timer select reset system when WDT time out |
J35 |
pins 1 & 2 closed |
|
Watch dog timer select activate NMI to CPU reset system |
J35 |
pins 2 & 3 closed | |
|
Watch dog timer select disabled |
J35 |
Open | |
|
DRAM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
1MB |
(1) 256K x 36 |
NONE |
|
2MB |
(1) 256K x 36 |
(1) 256K x 36 |
|
2MB |
(1) 512K x 36 |
NONE |
|
3MB |
(1) 512K x 36 |
(1) 256K x 36 |
|
4MB |
(1) 512K x 36 |
(1) 512K x 36 |
|
4MB |
(1) 1M x 36 |
NONE |
|
5MB |
(1) 1M x 36 |
(1) 256K x 36 |
|
6MB |
(1) 1M x 36 |
(1) 512K x 36 |
|
8MB |
(1) 1M x 36 |
(1) 1M x 36 |
|
8MB |
(1) 2M x 36 |
NONE |
|
9MB |
(1) 2M x 36 |
(1) 256K x 36 |
|
10MB |
(1) 2M x 36 |
(1) 512K x 36 |
|
12MB |
(1) 2M x 36 |
(1) 1M x 36 |
|
16MB |
(1) 2M x 36 |
(1) 2M x 36 |
|
16MB |
(1) 4M x 36 |
NONE |
|
17MB |
(1) 4M x 36 |
(1) 256K x 36 |
|
18MB |
(1) 4M x 36 |
(1) 512K x 36 |
|
20MB |
(1) 4M x 36 |
(1) 1M x 36 |
|
24MB |
(1) 4M x 36 |
(1) 2M x 36 |
|
32MB |
(1) 4M x 36 |
(1) 4M x 36 |
|
32MB |
(1) 8M x 36 |
NONE |
|
33MB |
(1) 8M x 36 |
(1) 256K x 36 |
|
34MB |
(1) 8M x 36 |
(1) 512K x 36 |
|
36MB |
(1) 8M x 36 |
(1) 1M x 36 |
|
40MB |
(1) 8M x 36 |
(1) 2M x 36 |
|
48MB |
(1) 8M x 36 |
(1) 4M x 36 |
|
64MB |
(1) 8M x 36 |
(1) 8M x 36 |
|
CACHE CONFIGURATION | |||
|
Size |
Bank 0 |
Bank 1 |
TAG |
|
32KB |
(4) 8K x 8 |
NONE |
(1) 8K x 8 |
|
64KB |
(4) 8K x 8 |
(4) 8K x 8 |
(1) 8K x 8 |
|
128KB |
(4) 32K x 8 |
NONE |
(1) 8K x 8 |
|
256KB |
(4) 32K x 8 |
(4) 32K x 8 |
(1) 32K x 8 |
|
CACHE JUMPER CONFIGURATION | |||||
|
Size |
J5 |
J6 |
J7 |
J8 |
J9 |
|
32KB |
2 & 3 |
2 & 3 |
2 & 3 |
2 & 3 |
Open |
|
64KB |
2 & 3 |
2 & 3 |
1 & 2 |
1 & 2 |
Open |
|
128KB |
2 & 3 |
1 & 2 |
1 & 2 |
2 & 3 |
2 & 3 |
|
256KB |
1 & 2 |
1 & 2 |
1 & 2 |
1 & 2 |
1 & 2 |
|
Note: Pins designated should be in the closed position. | |||||
|
CPU TYPE CONFIGURATION | ||
|
Type |
J16 |
J25 |
|
CX486S |
Open |
pins 2 & 3 closed |
|
80846SX |
Open |
pins 2 & 3 closed |
|
80487SX |
pins 2 & 3 closed |
pins 1 & 2, 3 & 4 closed |
|
CX486DX |
pins 1 & 2 closed |
pins 1 & 2, 3 & 4 closed |
|
80486DX |
pins 1 & 2 closed |
pins 1 & 2, 3 & 4 closed |
|
80486DX2 |
pins 1 & 2 closed |
pins 1 & 2, 3 & 4 closed |
|
VESA ACTIVE/RECOVERY TIME CONFIGURATION | |||||||
|
Speed |
Active |
Recovery |
Speed |
J10 |
J11 |
J12 |
J13 |
|
33MHz |
5T |
5T |
> 2 |
2 & 3 |
1 & 2 |
1 & 2 |
1 & 2 |
|
33MHz |
5T |
7T |
> 1 |
1 & 2 |
1 & 2 |
1 & 2 |
1 & 2 |
|
33MHz |
5T |
9T |
> 0 |
2 & 3 |
2 & 3 |
1 & 2 |
1 & 2 |
|
50MHz |
9T |
9T |
> 2 |
2 & 3 |
2 & 3 |
1 & 2 |
2 & 3 |
|
50MHz |
9T |
11T |
> 1 |
1 & 2 |
2 & 3 |
1 & 2 |
2 & 3 |
|
50MHz |
9T |
13T |
> 0 |
2 & 3 |
1 & 2 |
2 & 3 |
2 & 3 |
|
Note: Pins designated should be in the closed position. | |||||||
|
ON BOARD IDE CONFIGURATION | ||
|
Setting |
J27 |
J28 |
|
Enabled |
pins 1 & 2 closed |
pins 1 & 2 closed |
|
Disabled |
pins 2 & 3 closed |
pins 2 & 3 closed |
|
SERIAL PORT CONFIGURATION | ||
|
Setting |
J31 |
J33 |
|
Serial port 1 enabled |
pins 1 & 2 closed |
N/A |
|
Serial port 1 disabled |
pins 2 & 3 closed |
N/A |
|
Serial port 2 enabled |
N/A |
pins 1 & 2 closed |
|
Serial port 2 disabled |
N/A |
pins 2 & 3 closed |
|
SERIAL PORT 1 CONFIGURATION | |
|
COM port |
J32 |
|
COM1 |
pins 1 & 2 closed |
|
COM3 |
pins 2 & 3 closed |
|
SERIAL PORT 2 CONFIGURATION | |
|
COM port |
J34 |
|
COM2 |
pins 1 & 2 closed |
|
COM4 |
pins 2 & 3 closed |
|
WATCH DOG TIMER CONFIGURATION | ||
|
Time |
J21 |
J24 |
|
.5 |
pins 1 & 2 closed |
pins 1 & 2 closed |
|
1 |
pins 1 & 2 closed |
pins 3 & 4 closed |
|
4 |
pins 1 & 2 closed |
pins 5 & 6 closed |
|
8 |
pins 1 & 2 closed |
pins 7 & 8 closed |
|
15 |
pins 2 & 3 closed |
pins 1 & 2 closed |
|
30 |
pins 2 & 3 closed |
pins 3 & 4 closed |
|
120 |
pins 2 & 3 closed |
pins 5 & 6 closed |
|
240 |
pins 2 & 3 closed |
pins 7 & 8 closed |
|
Note; Time is represented in seconds. | ||
