Processor	Pentium
Processor Speed	75/90/100MHz
Chip Set	Unidentified
Max. Onboard DRAM	128MB
Cache	256/512/1024/2048KB
BIOS	Award
Dimensions	330mm x 218mm
I/O Options	32-bit VESA local bus slots (2), 32-bit PCI slots (3)
NPU Options	None

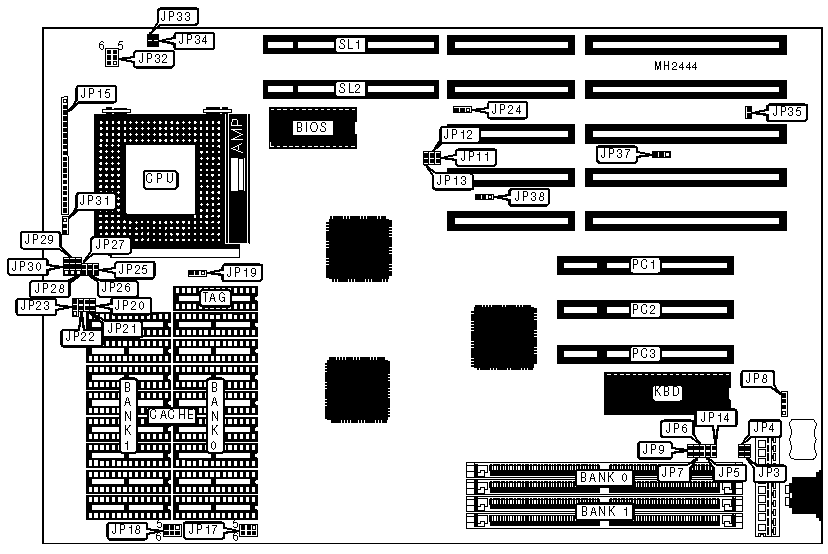

CONNECTIONS
Purpose	Location	Purpose	Location
External battery	JP8	Turbo switch	JP15 (pins 14 - 16)
Speaker	JP15 (pins 1 - 4)	+5v ground	JP15 (pins 17 - 18)
Power LED & keylock	JP15 (pins 5 - 9)	Chassis fan power	JP32
Turbo LED	JP15 (pins 10 - 11)	32-bit VESA local bus slots	PC1 - PC3
Reset switch	JP15 (pins 12 - 13)	32-bit PCI bus slots	SL1 & SL2

USER CONFIGURABLE SETTINGS
Function		Jumper	Position
»	Host data wait state select 1 wait state	JP4	Open
	Host data wait state select 0 wait states	JP4	Closed
»	Back to back I/O delay select 3 wait states	JP6	Open
	Back to back I/O delay select 0 wait states	JP6	Closed
»	CMOS memory normal operation	JP8	pins 2 & 3 closed
	CMOS memory clear	JP8	pins 3 & 4 closed
	Battery type select external	JP8	Closed
»	Monitor type select color	JP14	Open
	Monitor type select monochrome	JP14	Closed
»	Factory configured - do not alter	JP19	Open
»	Buffer type select stand alone	JP26	Open
	Buffer type select loaded component	JP26	Closed
»	Factory configured - do not alter	JP31	Open
»	Stop clock select enabled	JP33	Open
	Stop clock select disabled	JP33	Closed
»	Bus/core ratio select 2/3 ratio	JP34	Open
	Bus/core ratio select 1/2 ratio	JP34	Closed
»	Factory configured - do not alter	JP35	Open

DRAM CONFIGURATION
Size	Bank 0	Bank 1
2MB	(2) 256K x 36	NONE
4MB	(2) 512K x 36	NONE
4MB	(2) 256K x 36	(2) 256K x 36
6MB	(2) 256K x 36	(2) 512K x 36
8MB	(2) 1M x 36	NONE
8MB	(2) 512K x 36	(2) 512K x 36
10MB	(2) 256K x 36	(2) 1M x 36
12MB	(2) 512K x 36	(2) 1M x 36
16MB	(2) 2M x 36	NONE
16MB	(2) 1M x 36	(2) 1M x 36
18MB	(2) 256K x 36	(2) 2M x 36
20MB	(2) 512K x 36	(2) 2M x 36
24MB	(2) 1M x 36	(2) 2M x 36
32MB	(2) 4M x 36	NONE
32MB	(2) 2M x 36	(2) 2M x 36
34MB	(2) 256K x 36	(2) 4M x 36
36MB	(2) 512K x 36	(2) 4M x 36
40MB	(2) 1M x 36	(2) 4M x 36
48MB	(2) 2M x 36	(2) 4M x 36
64MB	(2) 8M x 36	NONE
66MB	(2) 256K x 36	(2) 8M x 36
68MB	(2) 512K x 36	(2) 8M x 36
72MB	(2) 1M x 36	(2) 8M x 36

DRAM CONFIGURATION (CON’T)
Size	Bank 0	Bank 1
80MB	(2) 2M x 36	(2) 8M x 36
96MB	(2) 8M x 36	(2) 4M x 36
96MB	(2) 4M x 36	(2) 8M x 36
128MB	(2) 8M x 36	(2) 8M x 36

CACHE CONFIGURATION
Size	Bank 0	Bank 1	TAG
256KB	(8) 32K x 8	NONE	(1) 8K x 8
512KB	(8) 32K x 8	(8) 32K x 8	(1) 32K x 8
512KB	(8) 64K x 8	NONE	(1) 32K x 8
1MB	(8) 64K x 8	(8) 64K x 8	(1) 32K x 8
1MB	(8) 128K x 8	NONE	(1) 32K x 8
2MB	(8) 128K x 8	(8) 128K x 8	(1) 64K x 8

CACHE JUMPER CONFIGURATION
Size	JP20	JP21	JP22	JP23	JP28	JP29	JP30
256KB	Open	Open	Open	Open	1 & 2	Open	1 & 2
512KB	Open	Open	Closed	Open	2 & 3	Open	2 & 3
512KB	Open	Open	Closed	Open	1 & 2	2 & 3	1 & 2
1MB	Open	Closed	Closed	Open	2 & 3	1 & 2	2 & 3
1MB	Open	Closed	Closed	2 & 3	1 & 2	2 & 3	1 & 2
2MB	Closed	Closed	Closed	1 & 2	2 & 3	1 & 2	2 & 3
Note: Pins designated should be in the closed position.

CACHE VOLTAGE CONFIGURATION
Voltage	JP17	JP18
3v	pins 3 & 5, 4 & 6 closed	pins 3 & 5, 4 & 6 closed
5v	pins 1 & 3, 2 & 4 closed	pins 1 & 3, 2 & 4 closed
Note: JP17 = Bank 0 and JP18 = Bank 1.

CPU SPEED CONFIGURATION
Speed	JP11	JP12	JP13
75MHz	Closed	Open	Open
90MHz	Open	Closed	Open
100MHz	Closed	Open	Closed

VESA WAIT STATE CONFIGURATION
Wait states	JP5
0 wait states	Open
1 wait state	Closed

BUS SPEED CONFIGURATION
CPU speed	JP3
CPU clock/2	Open
= 50MHz	Closed

AT CLOCK CONFIGURATION
Clock	JP7	JP9
LCLK/3	Open	Closed
LCLK/4	Closed	Open

PCI IRQ CONFIGURATION
IRQ	JP37	JP38
IRQ14	pins 2 & 3 closed	pins 1 & 2 closed
IRQ15	pins 1 & 2 closed	pins 2 & 3 closed

DRIVE ENABLE CONFIGURATION
Speed	JP25	JP27
50MHz	Open	Open
60MHz	Closed	Closed
66MHz	Closed	Closed

FLASH MEMORY CONFIGURATION
Setting	JP24
EPROM	Open
5v flash	pins 2 & 3 closed
12v flash	pins 1 & 2 closed
