Processor	Pentium
Processor Speed	60/66MHz
Chip Set	Unidentified
Max. Onboard DRAM	128MB
Cache	256/512/1024KB
BIOS	Award
Dimensions	330mm x 218mm
I/O Options	32-bit PCI bus slots (3), green PC connector
NPU Options	None

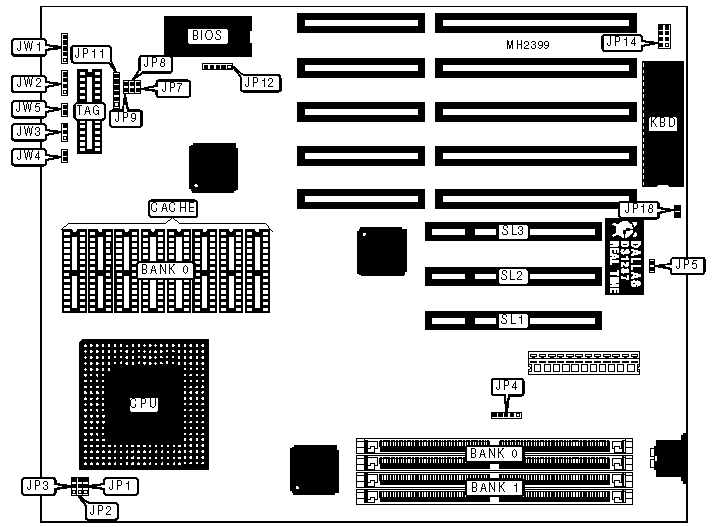

CONNECTIONS
Purpose	Location	Purpose	Location
Green PC connector	JP14	Reset switch	JW4
Power LED & keylock	JW1	Turbo LED	JW5
Speaker	JW2	32-bit PCI bus slots	SL1 - SL3
Turbo switch	JW3

USER CONFIGURABLE SETTINGS
Function		Jumper	Position
»	CPU cache select write back	JP1	pins 1 & 2 closed
	CPU cache select write through	JP1	pins 2 & 3 closed
»	Pipeline mode disabled	JP2	pins 1 & 2 closed
	Pipeline mode enabled	JP2	pins 2 & 3 closed
»	Always invalid	JP3	pins 2 & 3 closed
	Only invalid in write cycle	JP3	pins 1 & 2 closed
»	CMOS memory normal operation	JP5	Open
	CMOS memory clear	JP5	Closed
»	Factory configured - do not alter	JP12	Open
»	Monitor type select color	JP18	Closed
	Monitor type select monochrome	JP18	Open

DRAM CONFIGURATION
Size	Bank 0	Bank 1
2MB	(2) 256K x 36	NONE
4MB	(2) 512K x 36	NONE
4MB	(2) 256K x 36	(2) 256K x 36
6MB	(2) 256K x 36	(2) 512K x 36
8MB	(2) 1M x 36	NONE
8MB	(2) 512K x 36	(2) 512K x 36
10MB	(2) 256K x 36	(2) 1M x 36
12MB	(2) 512K x 36	(2) 1M x 36
16MB	(2) 2M x 36	NONE
16MB	(2) 1M x 36	(2) 1M x 36
18MB	(2) 256K x 36	(2) 2M x 36
20MB	(1) 512K x 36	(2) 2M x 36
20MB	(2) 512K x 36	(2) 2M x 36
32MB	(2) 4M x 36	NONE
32MB	(2) 2M x 36	(2) 2M x 36
34MB	(2) 256K x 36	(2) 4M x 36
36MB	(2) 512K x 36	(2) 4M x 36
40MB	(2) 1M x 36	(2) 4M x 36
48MB	(2) 2M x 36	(2) 4M x 36
64MB	(2) 8M x 36	NONE
64MB	(2) 4M x 36	(2) 4M x 36
66MB	(2) 256K x 36	(2) 8M x 36
68MB	(2) 512K x 36	(2) 8M x 36
72MB	(2) 1M x 36	(2) 8M x 36
96MB	(2) 4M x 36	(2) 8M x 36
128MB	(2) 8M x 36	(2) 8M x 36

DRAM JUMPER CONFIGURATION
Bank 0	Bank 1	JP4
Single sided SIMM	Single sided SIMM	pins 1 & 2, 3 & 4 closed
Single sided SIMM	Double sided SIMM	pins 1 & 2, 3 & 4 closed
Double sided SIMM	Double sided SIMM	pins 2 & 3, 4 & 5 closed
Double sided SIMM	Single sided SIMM	pins 2 & 3, 4 & 5 closed

CACHE CONFIGURATION
Size	Bank 0	TAG
256KB	(8) 32K x 8	(1) 8K x 8
512KB	(8) 64K x 8	(1) 32K x 8
1MB	(8) 128K x 8	(1) 32K x 8

CACHE JUMPER CONFIGURATION
Size	JP11
256KB	pins 2 & 3, 5 & 6 closed
512KB	pins 1 & 2, 5 & 6 closed
1MB	pins 1 & 2, 4 & 5 closed

CPU SPEED CONFIGURATION (IMI IMISC466 CLOCK GENERATOR)
Speed	JP7	JP8	JP9
60MHz	Open	Open	Closed
66MHz	Open	Open	Open

CPU SPEED CONFIGURATION (MXIC MX8315 CLOCK GENERATOR)
Speed	JP7	JP8	JP9
60MHz	Open	Closed	Open
66MHz	Closed	Open	Closed
