ADVANCED LOGIC RESEARCH, INC.
FLEXCACHE 20386Z/25386Z
|
Processor |
80386SX |
|
Processor Speed |
20/25MHz |
|
Chip Set |
Unidentified |
|
Max. Onboard DRAM |
16MB |
|
Cache |
64KB |
|
BIOS |
Phoenix |
|
Dimensions |
355mm x 304mm |
|
I/O Options |
32-bit external memory card |
|
NPU Options |
80387SX/3167 |
|

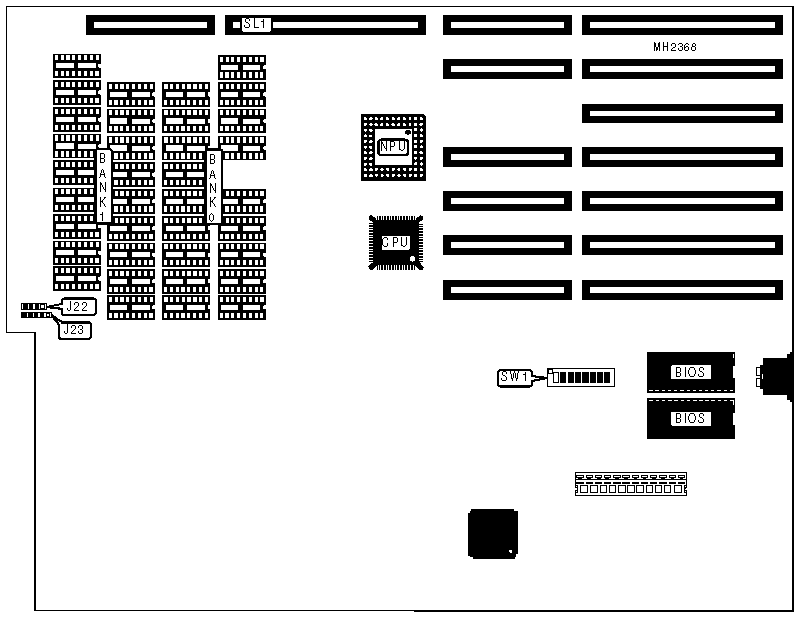

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Speaker |
J22 |
32-bit external memory card |
SL1 |
|
Front panel connector |
J23 | ||
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Switch |
Position | |
|
» |
Cache enabled |
SW1/1 |
Off |
|
Cache disabled or slow speed enabled |
SW1/1 |
On | |
|
» |
Monitor type select monochrome |
SW1/2 |
Off |
|
Monitor type select color |
SW1/2 |
On | |
|
» |
ROM to RAM swap status enabled |
SW1/3 |
Off |
|
ROM to RAM swap status disabled |
SW1/3 |
On | |
|
» |
Factory configured - do not alter |
SW1/5 |
Off |
|
» |
Factory configured - do not alter |
SW1/6 |
Off |
|
» |
Factory configured - do not alter |
SW1/7 |
Off |
|
» |
Factory configured - do not alter |
SW1/8 |
Off |
|
DRAM CONFIGURATION (MAINBOARD) | ||
|
Size |
Bank 0 |
Bank 1 |
|
1MB |
(18) 411000 |
NONE |
|
4MB |
(18) 441000 |
(18) 441000 |
|
DRAM CONFIGURATION (1MB FLEXMEM CARD & 1MB ON MAINBOARD) | ||||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
|
2MB |
(36) 41256 |
NONE |
NONE |
NONE |
|
3MB |
(36) 41256 |
(36) 41256 |
NONE |
NONE |
|
4MB |
(36) 41256 |
(36) 41256 |
(36) 41256 |
NONE |
|
5MB |
(36) 41256 |
(36) 41256 |
(36) 41256 |
(36) 41256 |
|
6MB |
(36) 41256 |
(36) 44256 |
NONE |
NONE |
|
7MB |
(36) 41256 |
(36) 41256 |
(36) 44256 |
NONE |
|
8MB |
(36) 41256 |
(36) 41256 |
(36) 41256 |
(36) 44256 |
|
10MB |
(36) 41256 |
(36) 44256 |
(36) 44256 |
NONE |
|
11MB |
(36) 41256 |
(36) 41256 |
(36) 44256 |
(36) 44256 |
|
14MB |
(36) 41256 |
(36) 44256 |
(36) 44256 |
(36) 44256 |
|
DRAM CONFIGURATION (4MB FLEXMEM CARD & 1MB ON MAINBOARD) | ||||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
|
5MB |
(36) 44256 |
NONE |
NONE |
NONE |
|
6MB |
(36) 44256 |
(36) 41256 |
NONE |
NONE |
|
7MB |
(36) 44256 |
(36) 41256 |
(36) 41256 |
NONE |
|
8MB |
(36) 44256 |
(36) 41256 |
(36) 41256 |
(36) 41256 |
|
9MB |
(36) 44256 |
(36) 41256 |
NONE |
NONE |
|
10MB |
(36) 44256 |
(36) 41256 |
(36) 44256 |
NONE |
|
11MB |
(36) 44256 |
(36) 41256 |
(36) 41256 |
(36) 44256 |
|
13MB |
(36) 44256 |
(36) 44256 |
(36) 44256 |
NONE |
|
14MB |
(36) 44256 |
(36) 44256 |
(36) 44256 |
NONE |
|
16MB |
(36) 44256 |
(36) 44256 |
(36) 44256 |
(36) 44256 |
|
DRAM CONFIGURATION (1MB FLEXMEM CARD & 4MB ON MAINBOARD) | ||||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
|
5MB |
(36) 41256 |
NONE |
NONE |
NONE |
|
6MB |
(36) 41256 |
(36) 41256 |
NONE |
NONE |
|
7MB |
(36) 41256 |
(36) 41256 |
(36) 41256 |
NONE |
|
8MB |
(36) 41256 |
(36) 41256 |
(36) 41256 |
(36) 41256 |
|
9MB |
(36) 41256 |
(36) 44256 |
NONE |
NONE |
|
10MB |
(36) 41256 |
(36) 41256 |
(36) 44256 |
NONE |
|
11MB |
(36) 41256 |
(36) 44256 |
(36) 44256 |
(36) 44256 |
|
13MB |
(36) 41256 |
(36) 44256 |
(36) 44256 |
NONE |
|
14MB |
(36) 41256 |
(36) 41256 |
(36) 44256 |
(36) 44256 |
|
16MB |
(36) 41256 |
(36) 44256 |
(36) 44256 |
(36) 44256 |
|
DRAM CONFIGURATION (4MB FLEXMEM CARD & 4MB ON MAINBOARD) | ||||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
|
8MB |
(36) 44256 |
NONE |
NONE |
NONE |
|
9MB |
(36) 44256 |
(36) 41256 |
NONE |
NONE |
|
10MB |
(36) 44256 |
(36) 41256 |
(36) 41256 |
NONE |
|
11MB |
(36) 44256 |
(36) 41256 |
(36) 41256 |
(36) 41256 |
|
12MB |
(36) 44256 |
(36) 44256 |
NONE |
NONE |
|
13MB |
(36) 44256 |
(36) 41256 |
(18) 44256 |
NONE |
|
14MB |
(36) 44256 |
(36) 41256 |
(36) 41256 |
(36) 44256 |
|
16MB |
(36) 44256 |
(36) 44256 |
(36) 44256 |
NONE |
|
CACHE CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
64KB |
(4) 8K x 8 |
(4) 8K x 8 |
|
Note: The location of the cache is unidenified. | ||
|
NPU SPEED CONFIGURATION | |
|
Speed |
SW1/4 |
|
20MHz |
On |
|
25MHz |
Off |
