AUVA COMPUTER, INC.
TAM33-MA0/TAM40-MA0/TAM33-MA1/TAM40-MA1/TAM33-MAK
|
Processor |
80386DX/CX486DLC (exact location unknown) |
|
Processor Speed |
33/40MHz |
|
Chip Set |
Unidentified |
|
Max. Onboard DRAM |
32MB |
|
Cache |
8KB |
|
BIOS |
Unidentified |
|
Dimensions |
240mm x 220mm |
|
I/O Options |
None |
|
NPU Options |
CX487DLC/80387/3167 (exact location unknown) |
|

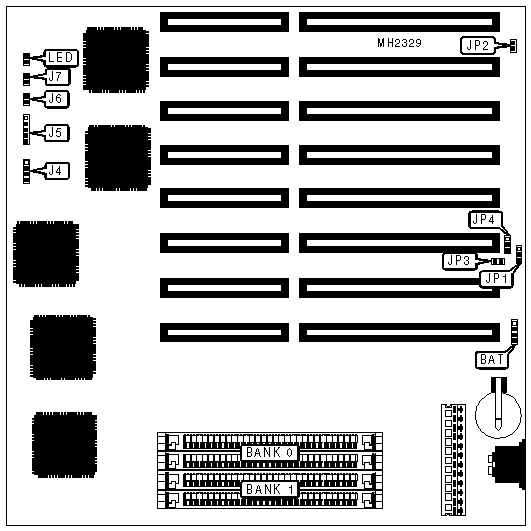

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
External battery |
BAT |
Turbo switch |
J6 |
|
Speaker |
J4 |
Reset switch |
J7 |
|
Power LED & keylock |
J5 |
Turbo LED |
LED |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Jumper |
Position | |
|
» |
CMOS memory select normal |
JP1 |
pins 1 & 2 closed |
|
CMOS memory clear |
JP1 |
pins 2 & 3 closed | |
|
Note: Exact configurations for JP2 - Monitor type select are unidentified. | |||
|
DRAM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
1MB |
(4) 256K x 9 |
NONE |
|
2MB |
(4) 256K x 9 |
(4) 256K x 9 |
|
4MB |
(4) 1M x 9 |
NONE |
|
5MB |
(4) 256K x 9 |
(4) 1M x 9 |
|
8MB |
(4) 1M x 9 |
(4) 1M x 9 |
|
16MB |
(4) 4M x 9 |
NONE |
|
20MB |
(4) 1M x 9 |
(4) 4M x 9 |
|
32MB |
(4) 4M x 9 |
(4) 4M x 9 |
|
CMOS CONFIGURATION | ||
|
Type |
JP3 |
JP4 |
|
DS1287 |
Open |
pins 1 & 2 closed |
|
MC146818 |
Closed |
pins 2 & 3 closed |
