ADVANCED LOGIC RESEARCH, INC.
POWERFLEX 386SX
|
Processor |
80286/80386SX |
|
Processor Speed |
16MHz |
|
Chip Set |
ALR |
|
Max. Onboard DRAM |
5MB |
|
Cache |
None |
|
BIOS |
AMI |
|
Dimensions |
330mm x 218mm |
|
I/O Options |
CPU expansion slot, IDE interface, parallel port, serial port |
|
NPU Options |
80287/80387SX |
|

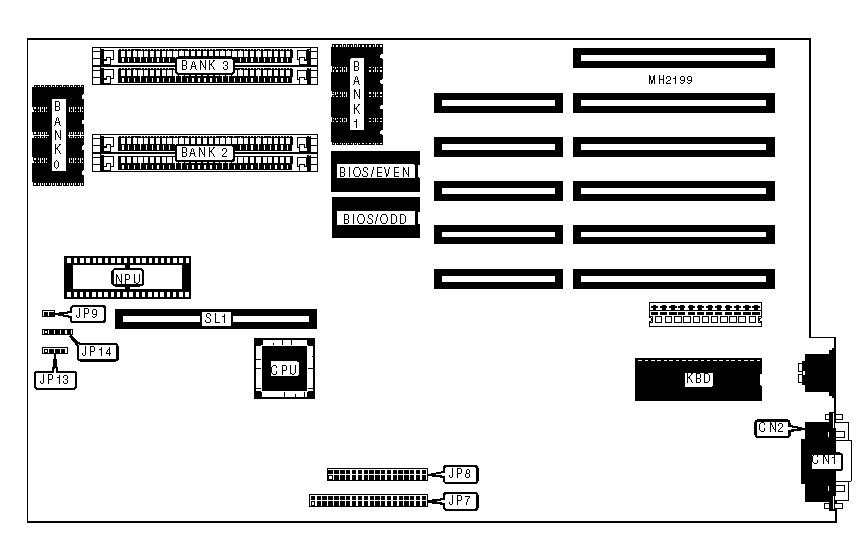

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Serial port |
CN1 |
IDE interface LED |
JP9 |
|
Parallel port |
CN2 |
Power LED & keylock |
JP13 |
|
IDE interface |
JP7 |
Speaker |
JP14 |
|
Floppy drive interface |
JP8 |
CPU expansion slot |
SL1 |
|
DRAM CONFIGURATION | ||||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
|
1MB |
(4) 128K x 8 |
(4) 128K x 8 |
NONE |
NONE |
|
3MB |
(4) 128K x 8 |
(4) 128K x 8 |
(2) 1M x 9 |
NONE |
|
5MB |
(4) 128K x 8 |
(4) 128K x 8 |
(2) 1M x 9 |
(2) 1M x 9 |
|
Note: Banks 0 & 1 are factory installed and are not configurable | ||||
|

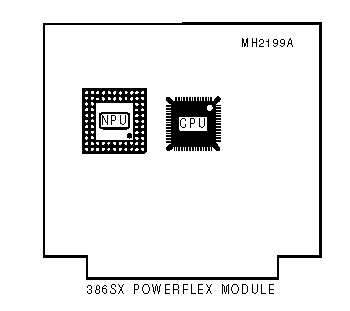

MISCELLANEOUS TECHNICAL NOTE |
|
Note:If the 386SX PowerFlex module is installed, remove the 80287 coprocessor. |
