ASUS COMPUTER INTERNATIONAL
PCI/E-P54NP4 (VERSION 2.0)
|
Processor |
Pentium |
|
Processor Speed |
90/100MHz |
|
Chip Set |
Intel |
|
Max. Onboard DRAM |
192MB |
|
Cache |
256/512KB |
|
BIOS |
Award/NCR |
|
Dimensions |
330mm x 218mm |
|
I/O Options |
32-bit PCI slots (4) |
|
NPU Options |
None |
|

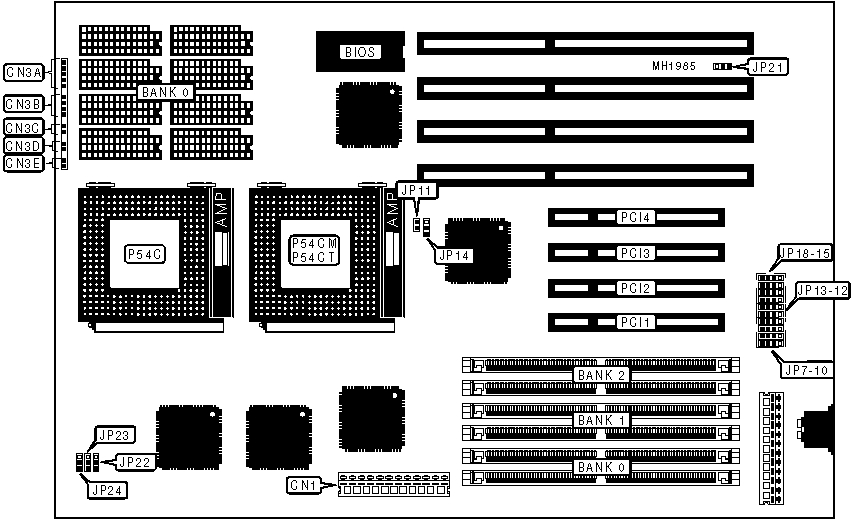

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
3.3V power connector |
CN1 |
Green PC power switch |
CN3E |
|
Keylock |
CN3A |
32-bit PCI slots |
PCI1 |
|
Speaker |
CN3B |
32-bit PCI slots |
PCI2 |
|
Reset switch |
CN3C |
32-bit PCI slots |
PCI3 |
|
Power LED |
CN3D |
32-bit PCI slots |
PCI4 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Jumper |
Position | |
|
» |
CPU internal core clock x 1.5 |
JP11 |
Open |
|
CPU internal core clock x 2.0 |
JP11 |
Closed | |
|
» |
Single processor installed |
JP14 |
pins 2 & 3 closed |
|
Dual processors installed |
JP14 |
pins 1 & 2 closed | |
|
» |
5V flash BIOS programming or normal operation |
JP21 |
pins 1 & 2 closed |
|
12V flash BIOS programming |
JP21 |
pins 2 & 3 closed | |
|
» |
Factory configured - do not alter |
JP24 |
pins 1 & 2 closed |
|
DRAM CONFIGURATION | |||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
|
2MB |
(2) 256K x 36 |
NONE |
NONE |
|
4MB |
(2) 256K x 36 |
(2) 256K x 36 |
NONE |
|
4MB |
(2) 512K x 36 |
NONE |
NONE |
|
6MB |
(2) 256K x 36 |
(2) 256K x 36 |
(2) 256K x 36 |
|
6MB |
(2) 256K x 36 |
(2) 512K x 36 |
NONE |
|
6MB |
(2) 512K x 36 |
(2) 256K x 36 |
NONE |
|
8MB |
(2) 512K x 36 |
(2) 256K x 36 |
(2) 256K x 36 |
|
8MB |
(2) 512K x 36 |
(2) 512K x 36 |
NONE |
|
8MB |
(2) 1M x 36 |
NONE |
NONE |
|
10MB |
(2) 1M x 36 |
(2) 256K x 36 |
NONE |
|
10MB |
(2) 256K x 36 |
(2) 512K x 36 |
(2) 512K x 36 |
|
10MB |
(2) 256K x 36 |
(2) 1M x 36 |
NONE |
|
12MB |
(2) 1M x 36 |
(2) 256K x 36 |
(2) 256K x 36 |
|
12MB |
(2) 512K x 36 |
(2) 512K x 36 |
(2) 512K x 36 |
|
12MB |
(2) 512K x 36 |
(2) 1M x 36 |
NONE |
|
12MB |
(2) 1M x 36 |
(2) 512K x 36 |
NONE |
|
16MB |
(2) 2M x 36 |
NONE |
NONE |
|
16MB |
(2) 1M x 36 |
(2) 512K x 36 |
(2) 512K x 36 |
|
16MB |
(2) 1M x 36 |
(2) 1M x 36 |
NONE |
|
18MB |
(2) 2M x 36 |
(2) 256K x 36 |
NONE |
|
18MB |
(2) 256K x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
|
18MB |
(2) 2M x 36 |
(2) 256K x 36 |
NONE |
|
20MB |
(2) 512K x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
|
20MB |
(2) 2M x 36 |
(2) 256K x 36 |
(2) 256K x 36 |
|
20MB |
(2) 2M x 36 |
(2) 512K x 36 |
NONE |
|
24MB |
(2) 2M x 36 |
(2) 512K x 36 |
(2) 512K x 36 |
|
24MB |
(2) 2M x 36 |
(2) 1M x 36 |
NONE |
|
24MB |
(2) 1M x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
|
24MB |
(2) 1M x 36 |
(2) 2M x 36 |
NONE |
|
32MB |
(2) 4M x 36 |
NONE |
NONE |
|
32MB |
(2) 2M x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
|
32MB |
(2) 2M x 36 |
(2) 2M x 36 |
NONE |
|
34MB |
(2) 256K x 36 |
(2) 2M x 36 |
(2) 2M x 36 |
|
34MB |
(2) 256K x 36 |
(2) 4M x 36 |
NONE |
|
34MB |
(2) 4M x 36 |
(2) 256K x 36 |
NONE |
|
DRAM CONFIGURATION (CONTINUED) | |||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
|
36MB |
(2) 512K x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
|
36MB |
(2) 512K x 36 |
(2) 4M x 36 |
NONE |
|
36MB |
(2) 4M x 36 |
(2) 256K x 36 |
(2) 256K x 36 |
|
36MB |
(2) 4M x 36 |
(2) 512K x 36 |
NONE |
|
40MB |
(2) 1M x 36 |
(2) 2M x 36 |
(2) 2M x 36 |
|
40MB |
(2) 1M x 36 |
(2) 4M x 36 |
NONE |
|
40MB |
(2) 4M x 36 |
(2) 512K x 36 |
(2) 512K x 36 |
|
40MB |
(2) 4M x 36 |
(2) 1M x 36 |
NONE |
|
48MB |
(2) 2M x 36 |
(2) 2M x 36 |
(2) 2M x 36 |
|
48MB |
(2) 2M x 36 |
(2) 4M x 36 |
NONE |
|
48MB |
(2) 4M x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
|
48MB |
(2) 4M x 36 |
(2) 2M x 36 |
NONE |
|
64MB |
(2) 4M x 36 |
(2) 2M x 36 |
(2) 2M x 36 |
|
64MB |
(2) 4M x 36 |
(2) 4M x 36 |
NONE |
|
64MB |
(2) 8M x 36 |
NONE |
NONE |
|
66MB |
(2) 256K x 36 |
(2) 4M x 36 |
(2) 4M x 36 |
|
66MB |
(2) 8M x 36 |
(2) 256K x 36 |
NONE |
|
66MB |
(2) 256K x 36 |
(2) 8M x 36 |
NONE |
|
68MB |
(2) 512K x 36 |
(2) 4M x 36 |
(2) 4M x 36 |
|
68MB |
(2) 8M x 36 |
(2) 512K x 36 |
NONE |
|
68MB |
(2) 8M x 36 |
(2) 256K x 36 |
(2) 256K x 36 |
|
72MB |
(2) 1M x 36 |
(2) 4M x 36 |
(2) 4M x 36 |
|
72MB |
(2) 1M x 36 |
(2) 8M x 36 |
NONE |
|
72MB |
(2) 8M x 36 |
(2) 512K x 36 |
(2) 512K x 36 |
|
72MB |
(2) 8M x 36 |
(2) 1M x 36 |
NONE |
|
80MB |
(2) 2M x 36 |
(2) 4M x 36 |
(2) 4M x 36 |
|
80MB |
(2) 2M x 36 |
(2) 8M x 36 |
NONE |
|
80MB |
(2) 8M x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
|
80MB |
(2) 8M x 36 |
(2) 2M x 36 |
NONE |
|
96MB |
(2) 4M x 36 |
(2) 4M x 36 |
(2) 4M x 36 |
|
96MB |
(2) 4M x 36 |
(2) 8M x 36 |
NONE |
|
96MB |
(2) 8M x 36 |
(2) 2M x 36 |
(2) 2M x 36 |
|
96MB |
(2) 8M x 36 |
(2) 4M x 36 |
NONE |
|
128MB |
(2) 8M x 36 |
(2) 4M x 36 |
(2) 4M x 36 |
|
128MB |
(2) 8M x 36 |
(2) 8M x 36 |
NONE |
|
128MB |
(2) 16M x 36 |
NONE |
NONE |
|
130MB |
(2) 256K x 36 |
(2) 8M x 36 |
(2) 8M x 36 |
|
130MB |
(2) 256K x 36 |
(2) 16M x 36 |
NONE |
|
130MB |
(2) 16M x 36 |
(2) 256K x 36 |
NONE |
|
132MB |
(2) 16M x 36 |
(2) 256K x 36 |
(2) 256K x 36 |
|
132MB |
(2) 512K x 36 |
(2) 8M x 36 |
(2) 8M x 36 |
|
132MB |
(2) 16M x 36 |
(2) 512K x 36 |
NONE |
|
132MB |
(2) 512K x 36 |
(2) 16M x 36 |
NONE |
|
DRAM CONFIGURATION (CONTINUED) | |||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
|
136MB |
(2) 1M x 36 |
(2) 16M x 36 |
NONE |
|
136MB |
(2) 1M x 36 |
(2) 8M x 36 |
(2) 8M x 36 |
|
136MB |
(2) 16M x 36 |
(2) 512K x 36 |
(2) 512K x 36 |
|
136MB |
(2) 16M x 36 |
(2) 1M x 36 |
NONE |
|
144MB |
(2) 2M x 36 |
(2) 8M x 36 |
(2) 8M x 36 |
|
144MB |
(2) 2M x 36 |
(2) 16M x 36 |
NONE |
|
144MB |
(2) 16M x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
|
144MB |
(2) 16M x 36 |
(2) 2M x 36 |
NONE |
|
160MB |
(2) 4M x 36 |
(2) 8M x 36 |
(2) 8M x 36 |
|
160MB |
(2) 4M x 36 |
(2) 16M x 36 |
NONE |
|
160MB |
(2) 16M x 36 |
(2) 2M x 36 |
(2) 2M x 36 |
|
160MB |
(2) 16M x 36 |
(2) 4M x 36 |
NONE |
|
192MB |
(2) 8M x 36 |
(2) 8M x 36 |
(2) 8M x 36 |
|
192MB |
(2) 8M x 36 |
(2) 16M x 36 |
NONE |
|
192MB |
(2) 16M x 36 |
(2) 4M x 36 |
(2) 4M x 36 |
|
192MB |
(2) 16M x 36 |
(2) 8M x 36 |
NONE |
|
CACHE CONFIGURATION | |||
|
Size |
Bank 0 |
JP22 |
JP23 |
|
0KB |
NONE |
pins 1 & 2 closed |
pins 1 & 2 closed |
|
256KB |
(8) 32K x 8 |
pins 2 & 3 closed |
pins 1 & 2 closed |
|
512KB |
(8) 64K x 8 |
pins 2 & 3 closed |
pins 2 & 3 closed |
|
EISA BUS INTERRUPT SELECT | |
|
Interrupt |
Setting |
|
IRQ5 |
JP7 & JP18/pins 2 & 3 closed |
|
IRQ9 |
JP8 & JP17/pins 2 & 3 closed |
|
IRQ11 |
JP9 & JP16/pins 2 & 3 closed |
|
IRQ14 |
JP10 & JP15/pins 2 & 3 closed |
|
IRQ15 |
JP12 & JP13/pins 2 & 3 closed |
|
PCI BUS EDGE TRIGGER INTERRUPT SELECT | ||||
|
IRQ |
PCI1 |
PCI2 |
PCI3 |
PCI4 |
|
5 |
JP7/pins 1 & 2 |
JP7/pins 3 & 4 |
JP18/pins 1 & 2 |
JP18/pins 3 & 4 |
|
9 |
JP8/pins 1 & 2 |
JP8/pins 3 & 4 |
JP17/pins 1 & 2 |
JP17/pins 3 & 4 |
|
11 |
JP9/pins 1 & 2 |
JP9/pins 3 & 4 |
JP16/pins 1 & 2 |
JP16/pins 3 & 4 |
|
14 |
JP10/pins 1 & 2 |
JP10/pins 3 & 4 |
JP15/pins 1 & 2 |
JP15/pins 3 & 4 |
|
15 |
JP12/pins 1 & 2 |
JP12/pins 3 & 4 |
JP13/pins 1 & 2 |
JP13/pins 3 & 4 |
|
Note:Pins designated should be in the closed position. | ||||
