BIOSTAR MICROTECH INTERNATIONAL CORPORATION
MB1333AEA-G/1340AEA-G/1333AEA-Q/1340AEA-Q
|
Processor |
80386DX/CX486DLC |
|
Processor Speed |
33/40MHz |
|
Chip Set |
Biostar |
|
Max. Onboard DRAM |
32MB |
|
Cache |
64/128/256KB |
|
BIOS |
AMI |
|
Dimensions |
330mm x 218mm |
|
I/O Options |
None |
|
NPU Options |
80387DX/3167 |
|

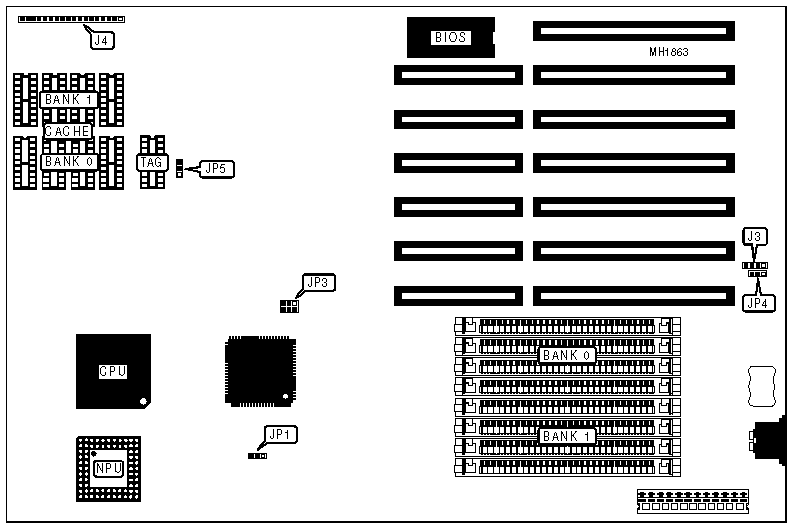

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
External battery |
J3 |
Reset switch |
J4/pins 12 - 13 |
|
Speaker |
J4/pins 1 - 4 |
Turbo switch |
J4/pins 14 - 15 |
|
Keylock & power LED |
J4/pins 5 - 9 |
5 volt ground |
J4/pins 17 - 18 |
|
Turbo LED |
J4/pins 10 - 11 | ||
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Jumper |
Position | |
|
» |
Monitor type select color |
JP1 |
pins 2 & 3 closed |
|
Monitor type select monochrome |
JP1 |
pins 1 & 2 closed | |
|
» |
CMOS memory clear |
JP4 |
pins 2 & 3 closed |
|
CMOS memory normal operation |
JP4 |
pins 1 & 2 closed | |
|
CACHE JUMPER CONFIGURATION | ||
|
Cache Size |
JP3 |
JP5 |
|
64KB |
Open |
pins 1 & 2 closed |
|
128KB |
pins 1 & 2 and 3 & 4 closed |
pins 2 & 3 closed |
|
256KB |
Closed |
pins 1 & 2 closed |
|
CACHE CONFIGURATION | |||
|
Cache Size |
Bank 0 |
Bank 1 |
TAG |
|
64KB |
(4) 8K x 8 |
(4) 8K x 8 |
(1) 8K x 8 |
|
128KB |
(4) 32K x 8 |
NONE |
(1) 8K x 8 |
|
256KB |
(4) 32K x 8 |
(4) 32K x 8 |
(1) 32K x 8 |
|
DRAM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
1MB |
(4) 256K x 9 |
NONE |
|
2MB |
(4) 256K x 9 |
(4) 256K x 9 |
|
4MB |
(4) 1M x 9 |
NONE |
|
5MB |
(4) 256K x 9 |
(4) 1M x 9 |
|
8MB |
(4) 1M x 9 |
(4) 1M x 9 |
|
16MB |
(4) 4M x 9 |
NONE |
|
20MB |
(4) 1M x 9 |
(4) 4M x 9 |
|
20MB |
(4) 4M x 9 |
(4) 1M x 9 |
|
32MB |
(4) 4M x 9 |
(4) 4M x 9 |
