AUSTIN COMPUTER SYSTEMS
486 LX VESA LOCAL BUS WINSTATION
|
Processor |
80486SX/80487SX/80486DX/80486DX2 |
|
Processor Speed |
25/33/50(Internal)/50/66(Internal)MHz |
|
Chip Set |
SIS |
|
Max. Onboard DRAM |
32MB |
|
Cache |
64/128/256KB |
|
BIOS |
AMI |
|
Dimensions |
330mm x 218mm |
|
I/O Options |
32-bit VESA local bus slots (2) |
|
NPU Options |
None |

|

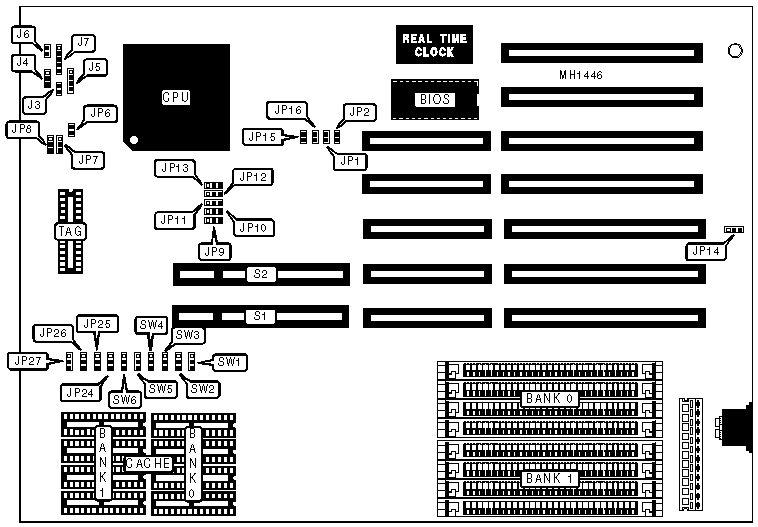

CONNECTIONS |
|||
|
Purpose |
Location |
Purpose |
Location |
|
Turbo LED |
J3 |
Reset switch |
J6 |
|
Turbo switch |
J4 |
Power LED & keylock |
J7 |
|
Speaker |
J5 |
32-bit VESA local bus slots |
S1 & S2 |
|
USER CONFIGURABLE SETTINGS |
|||
|
Function |
Jumper/Switch |
Position |
|
|
» |
Factory configured do not alter |
JP1 |
Open |
|
» |
Monitor type select color |
JP2 |
Closed |
|
|
Monitor type select monochrome |
JP2 |
Open |
|
» |
Factory configured do not alter |
JP9 |
Pins 1 & 2 closed |
|
» |
Factory configured do not alter |
JP14 |
Pins 1 & 2 closed |
|
» |
Factory configured do not alter |
JP15 |
Open |
|
» |
Factory configured do not alter |
JP16 |
Open |
|
» |
Factory configured do not alter |
JP24 |
Pins 2 & 3 open |
|
» |
Factory configured do not alter |
JP25 |
Pins 1 & 2 open |
|
DRAM CONFIGURATION |
||
|
Size |
Bank 0 |
Bank 1 |
|
1MB |
(4) 256K x 9 |
NONE |
|
2MB |
(4) 256K x 9 |
(4) 256K x 9 |
|
4MB |
(4) 1M x 9 |
NONE |
|
8MB |
(4) 1M x 9 |
(4) 1M x 9 |
|
16MB |
(4) 4M x 9 |
NONE |
|
20MB |
(4) 1M x 9 |
(4) 4M x 9 |
|
32MB |
(4) 4M x 9 |
(4) 4M x 9 |
|
CACHE CONFIGURATION |
|||
|
Size |
Cache |
Location |
TAG |
|
64KB |
(8) 8K x 8 |
Banks 0 & 1 |
(1) 8K x 8 |
|
128KB |
(4) 32K x 8 |
Bank 0 |
(1) 8K x 8 |
|
256KB |
(8) 32K x 8 |
Banks 0 & 1 |
(1) 32K x 8 |
|
CACHE JUMPER CONFIGURATION |
||||||
|
Size |
SR1 |
SR2 |
SR3 |
SR4 |
SR5 |
SR6 |
|
64KB |
Pins 2 & 3 |
Pins 2 & 3 |
Pins 1 & 2 |
Pins 2 & 3 |
Pins 1 & 2 |
Pins 1 & 2 |
|
128KB |
Pins 1 & 2 |
Pins 1 & 2 |
Pins 2 & 3 |
Pins 2 & 3 |
Pins 2 & 3 |
Pins 1 & 2 |
|
256KB |
Pins 2 & 3 |
Pins 2 & 3 |
Pins 2 & 3 |
Pins 2 & 3 |
Pins 2 & 3 |
Pins 2 & 3 |
|
NotePins designated should be in the closed position. |
||||||
|
CPU TYPE CONFIGURATION |
|||
|
CPU Type |
JP6 |
JP7 |
JP8 |
|
80486SX |
Open |
Open |
Pins 2 & 3 closed |
|
80487SX |
Closed |
Pins 2 & 3 closed |
Pins 1 & 2 closed |
|
80486DX |
Closed |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
|
80486DX2 |
Closed |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
|
CPU SPEED CONFIGURATION |
||||
|
Speed |
JP10 |
JP11 |
JP12 |
JP13 |
|
25MHz |
Pins 2 & 3 |
Pins 2 & 3 |
Pins 1 & 2 |
Pins 1 & 2 |
|
33MHz |
Pins 1 & 2 |
Pins 2 & 3 |
Pins 1 & 2 |
Pins 1 & 2 |
|
50iMHz |
Pins 2 & 3 |
Pins 2 & 3 |
Pins 1 & 2 |
Pins 1 & 2 |
|
50MHz |
Pins 1 & 2 |
Pins 1 & 2 |
Pins 1 & 2 |
Pins 1 & 2 |
|
66iMHz |
Pins 1 & 2 |
Pins 2 & 3 |
Pins 1 & 2 |
Pins 1 & 2 |
|
NotePins designated should be in the closed position. |
||||
|
VESA CPU TYPE (ID0 & ID1) CONFIGURATION |
||
|
CPU TYPE |
JP24 (ID0) |
JP25 (ID1) |
|
80386 |
Pins 2 & 3 closed |
Pins 1 & 2 closed |
|
80486 |
Pins 2 & 3 closed |
Pins 1 & 2 closed |
|
VESA WAIT STATE (ID2) CONFIGURATION |
||
|
Wait states |
CPU Speed |
JP26 |
|
0 wait states |
£ 33MHz |
Pins 1 & 2 closed |
|
1 wait state |
> 33MHz |
Pins 2 & 3 closed |
|
VESA WAIT STATE (ID2) CONFIGURATION |
|
|
CPU Speed |
JP27 |
|
<= 33MHz |
Pins 1 & 2 closed |
|
> 33MHz |
Pins 2 & 3 closed |
