ADVANCED LOGIC RESEARCH, INC.
MPS (Multi-Processor System)
|
Processor |
80386DX/80486SX/80486DX/ODP486SX (on external CPU/NPU/Cache module) |
|
Processor Speed |
20/25/33/50MHz |
|
Chip Set |
ALR |
|
Max. Onboard DRAM |
17MB |
|
Cache |
None (16KB on external 32-bit CPU/NPU/Cache module) |
|
BIOS |
Phoenix |
|
Dimensions |
385mm x 255mm |
|
I/O Options |
32-bit external CPU/NPU/Cache module slot, 32-bit external memory module slot bus mouse port, floppy interface, IDE interface, parallel port, serial port |
|
NPU Options |
80387/3167/4167 (on external CPU/NPU/Cache module) |
|

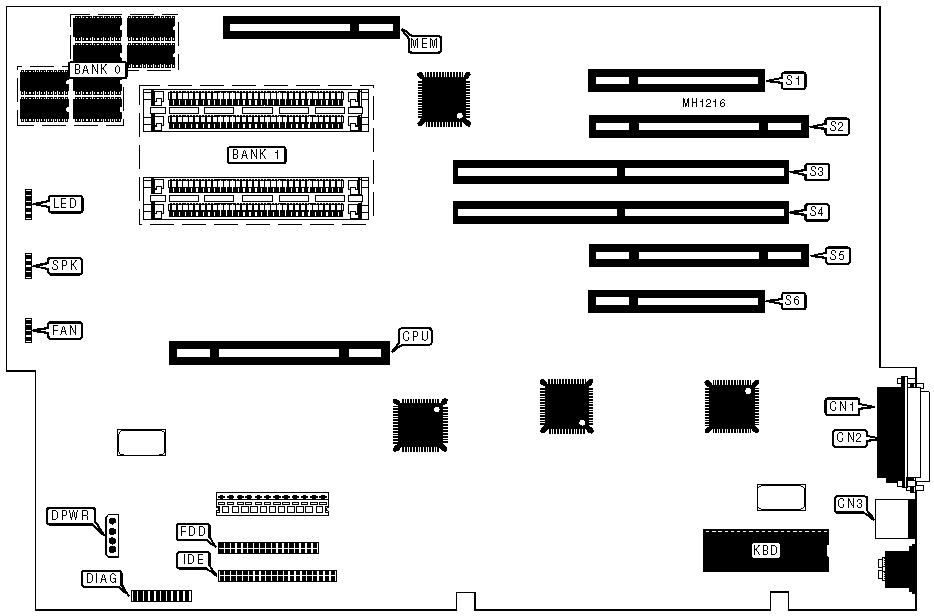

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Parallel port |
CN1 |
Power LED & keylock |
LED |
|
Serial port 1 |
CN2 |
Drive power (HD or FDD) |
DPWR |
|
Bus mouse port |
CN3 |
32-bit external CPU/NPU/Cache module |
CPU |
|
Diagnostic port |
DIAG |
32-bit external memory module |
MEM |
|
Fan power |
FAN |
32-bit MCA slots |
S3 & S4 |
|
Floppy drive interface |
FDD |
16-bit MCA slots with video extensions |
S2 & S5 |
|
IDE interface |
IDE |
16-bit MCA slots |
S1 & S6 |
|
Speaker |
SPK | ||
|
DRAM CONFIGURATION | ||||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
|
2MB |
(8) 44256 |
(4) 256K x 9 |
NONE |
NONE |
|
3MB |
(8) 44256 |
(4) 256K x 9 |
(4) 256K x 9 |
NONE |
|
4MB |
(8) 44256 |
(4) 256K x 9 |
(4) 256K x 9 |
(4) 256K x 9 |
|
6MB |
(8) 44256 |
(4) 1M x 9 |
(4) 256K x 9 |
NONE |
|
7MB |
(8) 44256 |
(4) 256K x 9 |
(4) 256K x 9 |
(4) 1M x 9 |
|
7MB |
(8) 44256 |
(4) 256K x 9 |
(4) 1M x 9 |
(4) 256K x 9 |
|
7MB |
(8) 44256 |
(4) 1M x 9 |
(4) 256K x 9 |
(4) 256K x 9 |
|
9MB |
(8) 44256 |
(4) 1M x 9 |
(4) 1M x 9 |
NONE |
|
10MB |
(8) 44256 |
(4) 256K x 9 |
(4) 1M x 9 |
(4) 1M x 9 |
|
10MB |
(8) 44256 |
(4) 1M x 9 |
(4) 256K x 9 |
(4) 1M x 9 |
|
10MB |
(8) 44256 |
(4) 1M x 9 |
(4) 1M x 9 |
(4) 256K x 9 |
|
13MB |
(8) 44256 |
(4) 1M x 9 |
(4) 1M x 9 |
(4) 1M x 9 |
|
17MB |
(8) 44256 |
(4) 4M x 9 |
NONE |
NONE |
|
18MB |
(8) 44256 |
(4) 4M x 9 |
(4) 256K x 9 |
NONE |
|
19MB |
(8) 44256 |
(4) 256K x 9 |
(4) 256K x 9 |
(4) 4M x 9 |
|
19MB |
(8) 44256 |
(4) 256K x 9 |
(4) 4M x 9 |
(4) 256K x 9 |
|
19MB |
(8) 44256 |
(4) 4M x 9 |
(4) 256K x 9 |
(4) 256K x 9 |
|
21MB |
(8) 44256 |
(4) 1M x 9 |
(4) 4M x 9 |
NONE |
|
21MB |
(8) 44256 |
(4) 4M x 9 |
(4) 1M x 9 |
NONE |
|
22MB |
(8) 44256 |
(4) 256K x 9 |
(4) 1M x 9 |
(4) 4M x 9 |
|
22MB |
(8) 44256 |
(4) 1M x 9 |
(4) 256K x 9 |
(4) 4M x 9 |
|
22MB |
(8) 44256 |
(4) 1M x 9 |
(4) 4M x 9 |
(4) 256K x 9 |
|
22MB |
(8) 44256 |
(4) 4M x 9 |
(4) 256K x 9 |
(4) 1M x 9 |
|
22MB |
(8) 44256 |
(4) 4M x 9 |
(4) 1M x 9 |
(4) 256K x 9 |
|
25MB |
(8) 44256 |
(4) 1M x 9 |
(4) 1M x 9 |
(4) 4M x 9 |
|
25MB |
(8) 44256 |
(4) 1M x 9 |
(4) 4M x 9 |
(4) 1M x 9 |
|
25MB |
(8) 44256 |
(4) 4M x 9 |
(4) 1M x 9 |
(4) 1M x 9 |
|
33MB |
(8) 44256 |
(4) 4M x 9 |
(4) 4M x 9 |
NONE |
|
34MB |
(8) 44256 |
(4) 256K x 9 |
(4) 4M x 9 |
(4) 4M x 9 |
|
34MB |
(8) 44256 |
(4) 4M x 9 |
(4) 256K x 9 |
(4) 4M x 9 |
|
34MB |
(8) 44256 |
(4) 4M x 9 |
(4) 4M x 9 |
(4) 256K x 9 |
|
37MB |
(8) 44256 |
(4) 1M x 9 |
(4) 4M x 9 |
(4) 4M x 9 |
|
37MB |
(8) 44256 |
(4) 4M x 9 |
(4) 1M x 9 |
(4) 4M x 9 |
|
37MB |
(8) 44256 |
(4) 4M x 9 |
(4) 4M x 9 |
(4) 1M x 9 |
|
49MB |
(8) 44256 |
(4) 4M x 9 |
(4) 4M x 9 |
(4) 4M x 9 |
|
Note:Banks 2 & 3 are utilized when a 32-bit external memory module is installed. | ||||
