ADVANCED LOGIC RESEARCH, INC.
POWERPRO Series
|
Processor |
80486DX/ODP486SX/80486DX2 |
|
Processor Speed |
25/33/50(internal)/66(internal)MHz |
|
Chip Set |
ALR |
|
Max. Onboard DRAM |
49MB |
|
Cache |
None (512KB on external CPU/NPU/Cache module) |
|
BIOS |
Phoenix |
|
Dimensions |
330mm x 218mm |
|
I/O Options |
32-bit external CPU/NPU/Cache module slots (2), floppy interface, IDE interface, parallel port, serial port (2), SVGA port |
|
NPU Options |
None |
|

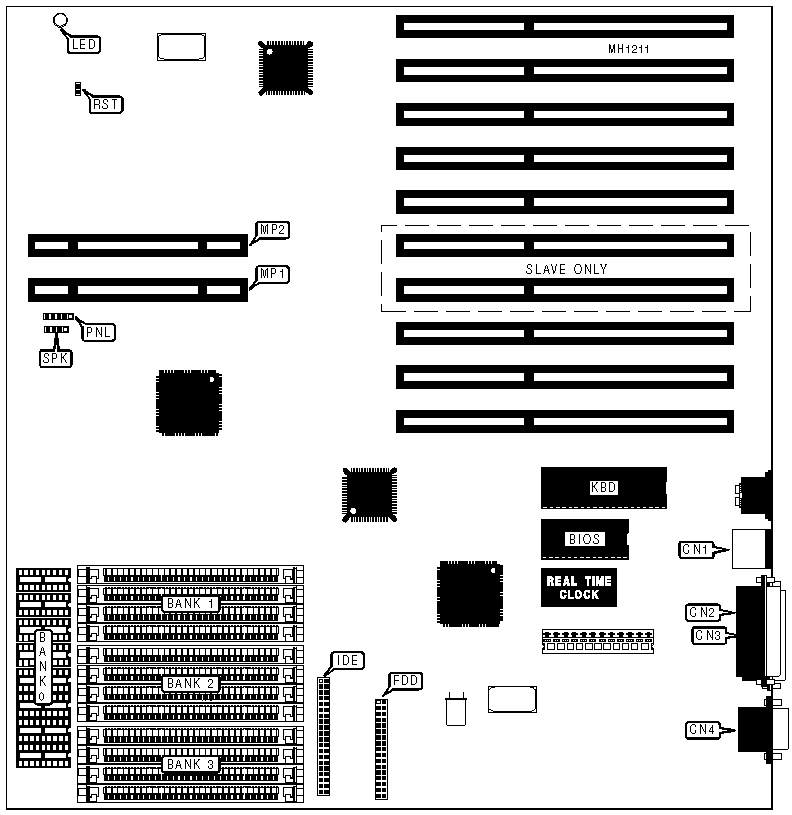

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Bus mouse port |
CN1 |
Power LED |
LED |
|
Parallel port |
CN2 |
32-bit external CPU/NPU/Cache module (primary) |
MP1 |
|
Serial port 1 |
CN3 |
32-bit external CPU/NPU/Cache module (secondary) |
MP2 |
|
Serial port 2 |
CN4 |
Front panel |
PNL |
|
Floppy drive interface |
FDD |
Reset switch |
RST |
|
IDE interface |
IDE |
Speaker |
SPK |
|
DRAM CONFIGURATION | ||||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
|
1MB |
(8) 411000 |
NONE |
NONE |
NONE |
|
5MB |
(8) 411000 |
(4) 1M x 9 |
NONE |
NONE |
|
6MB |
(8) 411000 |
(4) 256K x 9 |
(4) 1M x 9 |
NONE |
|
7MB |
(8) 411000 |
(4) 256K x 9 |
(4) 256K x 9 |
(4) 1M x 9 |
|
9MB |
(8) 411000 |
(4) 1M x 9 |
(4) 1M x 9 |
NONE |
|
10MB |
(8) 411000 |
(4) 256K x 9 |
(4) 1M x 9 |
(4) 1M x 9 |
|
13MB |
(8) 411000 |
(4) 1M x 9 |
(4) 1M x 9 |
(4) 1M x 9 |
|
17MB |
(8) 411000 |
(4) 4M x 9 |
NONE |
NONE |
|
21MB |
(8) 411000 |
(4) 1M x 9 |
(4) 4M x 9 |
NONE |
|
33MB |
(8) 411000 |
(4) 4M x 9 |
(4) 4M x 9 |
NONE |
|
37MB |
(8) 411000 |
(4) 1M x 9 |
(4) 4M x 9 |
(4) 4M x 9 |
|
49MB |
(8) 411000 |
(4) 4M x 9 |
(4) 4M x 9 |
(4) 4M x 9 |
