Processor	80386SX
Processor Speed	16/20/25MHz
Chip Set	VLSI
Max. Onboard DRAM	16MB
Cache	None
BIOS	AMI
Dimensions	220mm x 220mm
I/O Options	None
NPU Options	80387SX

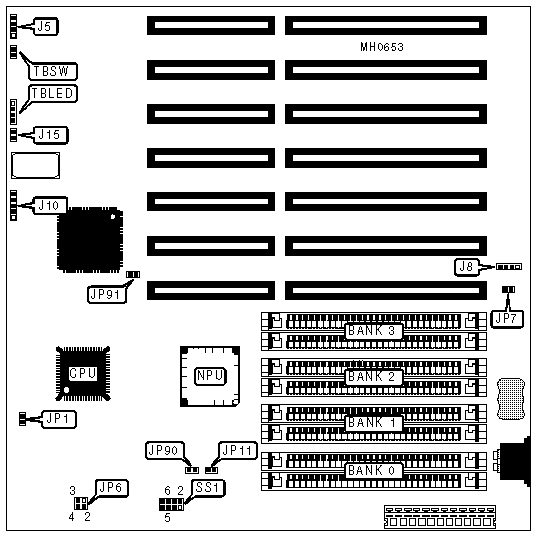

CONNECTIONS
Purpose	Location	Purpose	Location
Speaker	J5	Reset switch	J15
External battery	J8	Turbo LED	TBLED
Power LED & keylock	J10	Turbo switch	TBSW

USER CONFIGURABLE SETTINGS
Function		Jumper	Position
»	Pipeline mode disabled	JP1	Closed
	Pipeline mode enabled	JP1	Open
»	CMOS memory normal operation	JP6	pins 2 & 4 closed
	CMOS memory clear	JP6	pins 1 & 3 closed
»	Battery type select internal	JP7	Closed
	Battery type select external	JP7	Open
»	Monitor type select monochrome	JP11	Open
	Monitor type select color	JP11	Closed
»	Parity check enabled	JP90	Closed
	Parity check disabled	JP90	Open
»	Factory configured - do not alter	SS1	pins 5 & 6 closed
»	Chipset select VLSI 82C311	JP91	Closed
	Chipset select VLSI 82C310	JP91	Open

DRAM CONFIGURATION
Size	Bank 0	Bank 1	Bank 2	Bank 3
512KB	(2) 256K x 9	NONE	NONE	NONE
1MB	(2) 256K x 9	(2) 256K x 9	NONE	NONE
1.5MB	(2) 256K x 9	(2) 256K x 9	(2) 256K x 9	NONE
2MB	(2) 256K x 9	(2) 256K x 9	(2) 256K x 9	(2) 256K x 9
2MB	(2) 1M x 9	NONE	NONE	NONE
3MB	(2) 256K x 9	(2) 256K x 9	(2) 1M x 9	NONE
4MB	(2) 1M x 9	(2) 1M x 9	NONE	NONE
5MB	(2) 256K x 9	(2) 256K x 9	(2) 1M x 9	(2) 1M x 9
6MB	(2) 1M x 9	(2) 1M x 9	(2) 1M x 9	NONE
8MB	(2) 1M x 9	(2) 1M x 9	(2) 1M x 9	(2) 1M x 9
8MB	(2) 4M x 9	NONE	NONE	NONE
12MB	(2) 1M x 9	(2) 1M x 9	(2) 4M x 9	NONE
16MB	(2) 4M x 9	(2) 4M x 9	NONE	NONE
