AMERICAN DIGICOM CORPORATION
386TI
|
Processor |
80386DX |
|
Processor Speed |
33MHz |
|
Chip Set |
TI |
|
Max. Onboard DRAM |
32MB |
|
Cache |
32/64/128KB |
|
BIOS |
Quadtel |
|
Dimensions |
330mm x 218mm |
|
I/O Options |
32-bit external memory card slot |
|
NPU Options |
80387/3167 |
|

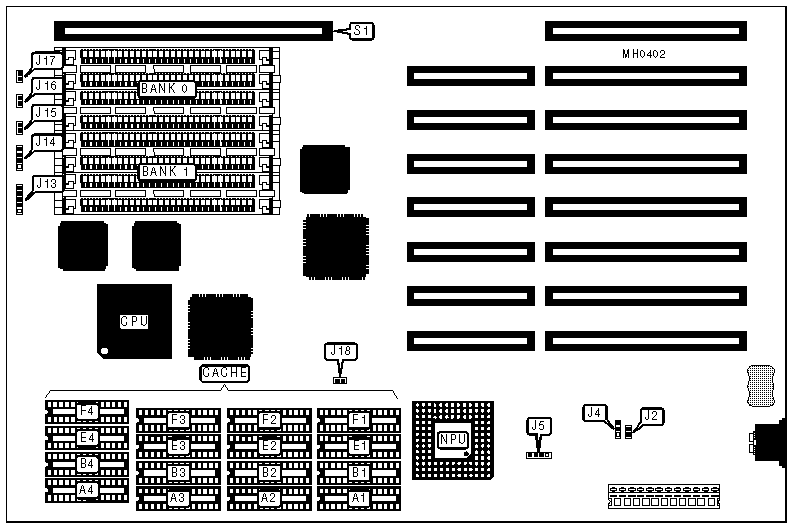

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
External battery |
J5 |
Turbo LED |
J16 |
|
Power LED & keylock |
J13 |
Reset switch |
J17 |
|
Speaker |
J14 |
32-bit external memory card |
S1 |
|
Turbo switch |
J15 | ||
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Jumper |
Position | |
| » |
Monitor type select color |
J2 |
Closed |
|
Monitor type select monochrome |
J2 |
Open | |
| » |
CMOS memory normal operation |
J4 |
pins 1 & 2 closed |
|
CMOS memory clear |
J4 |
pins 2 & 3 closed | |
|
DRAM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
1MB |
(4) 256K x 9 |
NONE |
|
2MB |
(4) 256K x 9 |
(4) 256K x 9 |
|
4MB |
(4) 1M x 9 |
NONE |
|
5MB |
(4) 256K x 9 |
(4) 1M x 9 |
|
8MB |
(4) 1M x 9 |
(4) 1M x 9 |
|
16MB |
(4) 4M x 9 |
NONE |
|
17MB |
(4) 256K x 9 |
(4) 4M x 9 |
|
20MB |
(4) 1M x 9 |
(4) 4M x 9 |
|
32MB |
(4) 4M x 9 |
(4) 4M x 9 |
|
CACHE CONFIGURATION | ||||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
|
32KB |
(4) 8K x 8 |
NONE |
NONE |
NONE |
|
64KB |
(4) 8K x 8 |
NONE |
(4) 8K x 8 |
NONE |
|
64KB |
(4) 8K x 8 |
(4) 8K x 8 |
NONE |
NONE |
|
128KB |
(4) 8K x 8 |
(4) 8K x 8 |
(4) 8K x 8 |
(4) 8K x 8 |
|
Note: Bank 0 = A, Bank 1 = B, Bank 2 = E, & Bank 3 = F. | ||||
|
CACHE JUMPER CONFIGURATION | |
|
Size |
J18 |
|
32KB |
Open |
|
64KB |
Open |
|
64KB |
Closed |
|
128KB |
Closed |
