Category	MPEG card
Video Types Supported	XVGA
Video Processor	Unidentified
Highest Resolution Supported	1280 x 1024
Data Bus Type	16-bit ISA
Memory Type	N/A
Maximum Onboard Memory	N/A

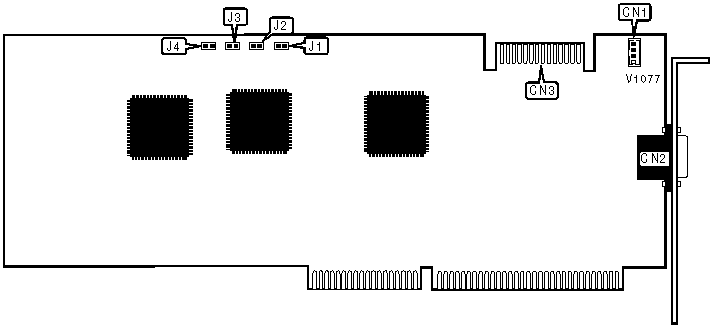

CONNECTIONS
Purpose	Location	Purpose	Location
Audio out	CN1	VGA feature connector	CN3
15-pin analog video port	CN2

BASE MEMORY ADDRESS SELECTION
Address		J1	J2	J3	J4
»	300h	Closed	Open	Open	Open
	310h	Open	Closed	Open	Open
	320h	Open	Open	Closed	Open
	330h	Open	Open	Open	Closed
