Category	Video
Video Types Supported	N/A
Video Processor	Unidentified
Highest Resolution Supported	N/A
Data Bus Type	16-bit ISA
Memory Type	N/A
Maximum Onboard Memory	N/A

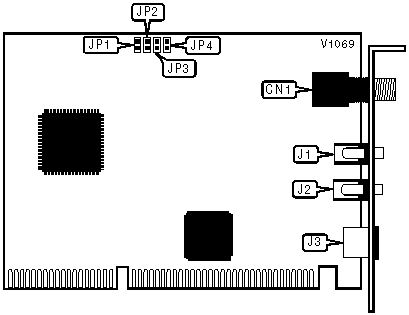

CONNECTIONS
Purpose	Location	Purpose	Location
TV cable in	CN1	Composite phone in	J2
Audio out	J1	S-video connector	J3

BASE I/O ADDRESS SELECTION
Address		JP1	JP2	JP3	JP4
»	350h	Open	Closed	Open	Open
	340h	Closed	Open	Open	Open
	360h	Open	Open	Closed	Open
	370h	Open	Open	Open	Closed
