UNIDENTIFIED
MEMO576 RAM CARD
|
Card Type |
Memory expansion |
|
Chipset Controller |
Unidentified |
|
I/O Options |
Memory |
|
Maximum Dram |
576KB |
|

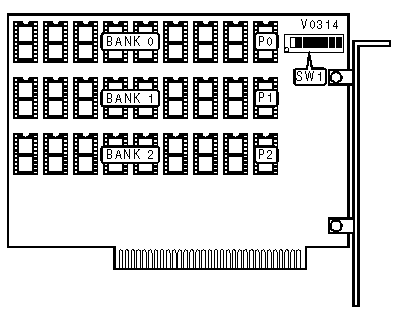

DRAM CONFIGURATION | ||||||
|
Size |
Bank 0 |
P0 |
Bank 1 |
P1 |
Bank 2 |
P2 |
|
192KB |
(8) 4164 |
(1) 4164 |
(8) 4164 |
(1) 4164 |
(8) 4164 |
(1) 4164 |
|
384KB |
(8) 41256 |
(1) 41256 |
(8) 4164 |
(1) 4164 |
(8) 4164 |
(1) 4164 |
|
512KB |
(8) 41256 |
(1) 41256 |
(8) 41256 |
(1) 41256 |
NONE |
NONE |
|
576KB |
(8) 41256 |
(1) 41256 |
(8) 41256 |
(1) 41256 |
(8) 4164 |
(1) 4164 |
|
MOTHERBOARD MEMORY CONFIGURATION | ||
|
Size |
SW1/1 |
SW1/2 |
|
0K |
Off |
Off |
|
64KB |
On |
Off |
|
128KB |
Off |
On |
|
256KB |
On |
On |
|
DRAM SWITCH CONFIGURATION | ||
|
Size |
SW1/3 |
SW1/4 |
|
192KB |
Off |
Off |
|
384KB |
On |
Off |
|
512KB |
Off |
On |
|
576KB |
On |
On |
|
PARITY CHECK SELECTION | |
|
Mode |
SW1/6 |
|
Enabled |
On |
|
Disabled |
Off |
|
FACTORY CONFIGURED-DO NOT ALTER | |
|
Switch |
Setting |
|
SW1/5 |
On |
|
SW1/7 |
N/A |
|
SW1/8 |
N/A |
